Adaptador de alimentação MEAN WELL DDR-15L-24

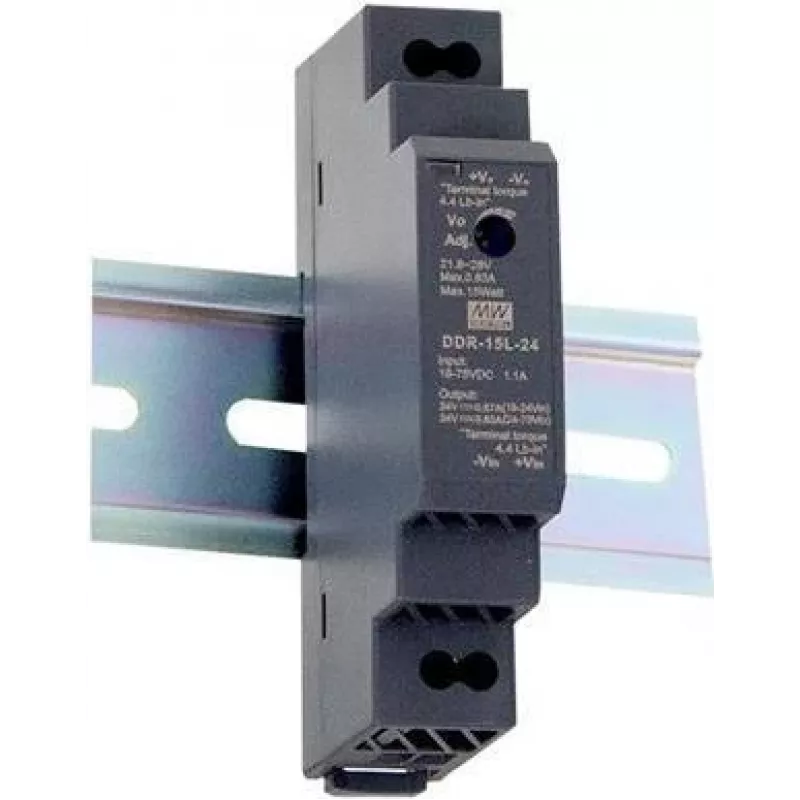

The MEAN WELL DDR-15L-24 is an ultra-compact DIN-rail DC-DC converter designed for industrial use. It accepts a wide input range of 18–75 VDC and delivers a regulated single output of 24 VDC with a total output power of 15 W. The module is RoHS-compliant, lightweight (68 g) and has a small footprint (54.5 mm depth × 90 mm height), allowing straightforward integration into control cabinets and machinery.

Advantages

The DDR-15L-24 provides stable 24 VDC output from a wide input voltage window, reducing the need for multiple power sources. Its DIN-rail form factor and slim depth save panel space, while the low weight simplifies mounting. RoHS compliance ensures it meets environmental safety requirements for industrial installations.

Suitable for

• Powering industrial control modules and PLCs that require 24 VDC
• Embedded systems and automation equipment with wide input voltage variations
• Retrofit and compact control cabinets where space is limited

Key specifications

• Model: MEAN WELL DDR-15L-24 (MPN: DDR-15L-24)
• Input voltage: 18–75 VDC
• Output: 24 VDC, total power 15 W
• Output current: up to 0.63 A (at 24 V output corresponding to 15 W)
• Dimensions (depth × height): 54.5 mm × 90 mm
• Weight: 0.068 kg
• Compliance: RoHS
• Pack quantity: 160 units per pack
• EAN: 4021087050876

How to use

Mount the DDR-15L-24 on a standard DIN rail inside the control cabinet. Connect the DC input within the specified 18–75 VDC range to the input terminals, observing correct polarity. Connect the 24 VDC output to the load, ensuring the connected current does not exceed the converter's rated output. Provide adequate ventilation and follow all local wiring and safety regulations during installation.

Recommendations

The device should be installed by qualified personnel. Verify input voltage range and load current before powering up. For reliable operation, avoid mounting near heat sources and allow clearance for airflow.
