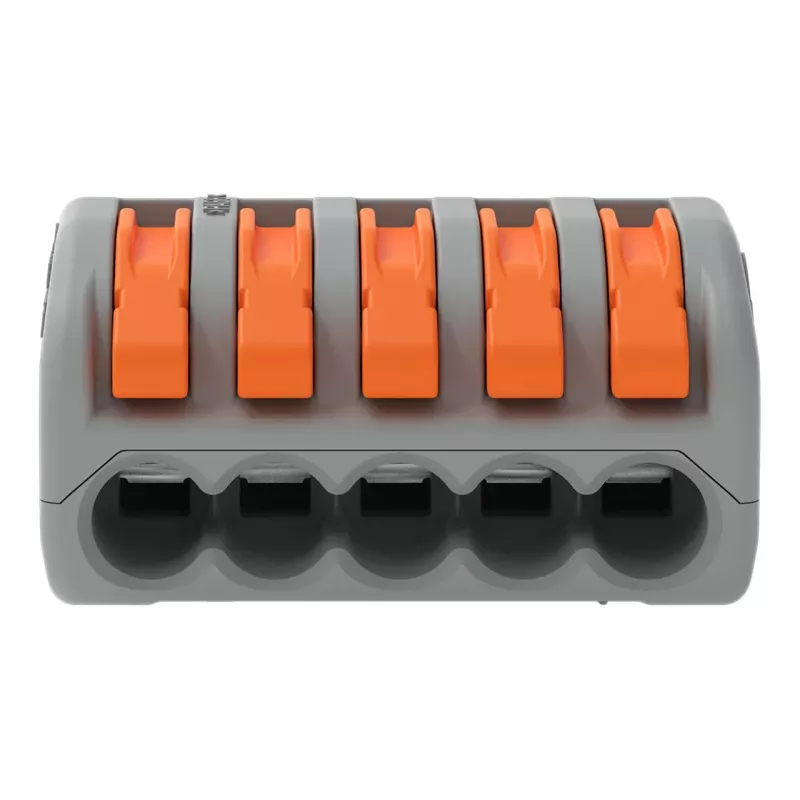

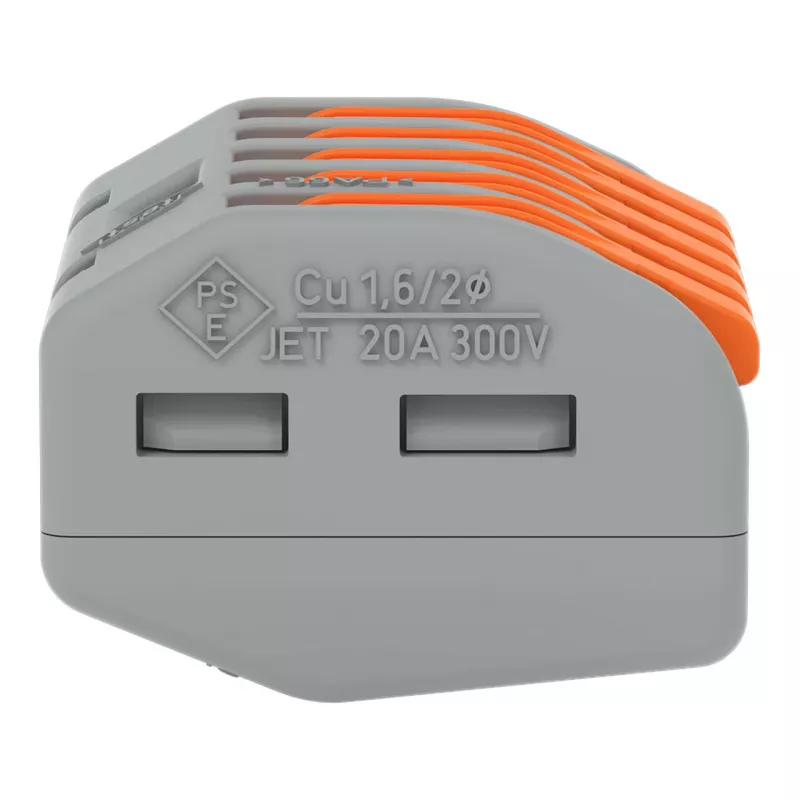

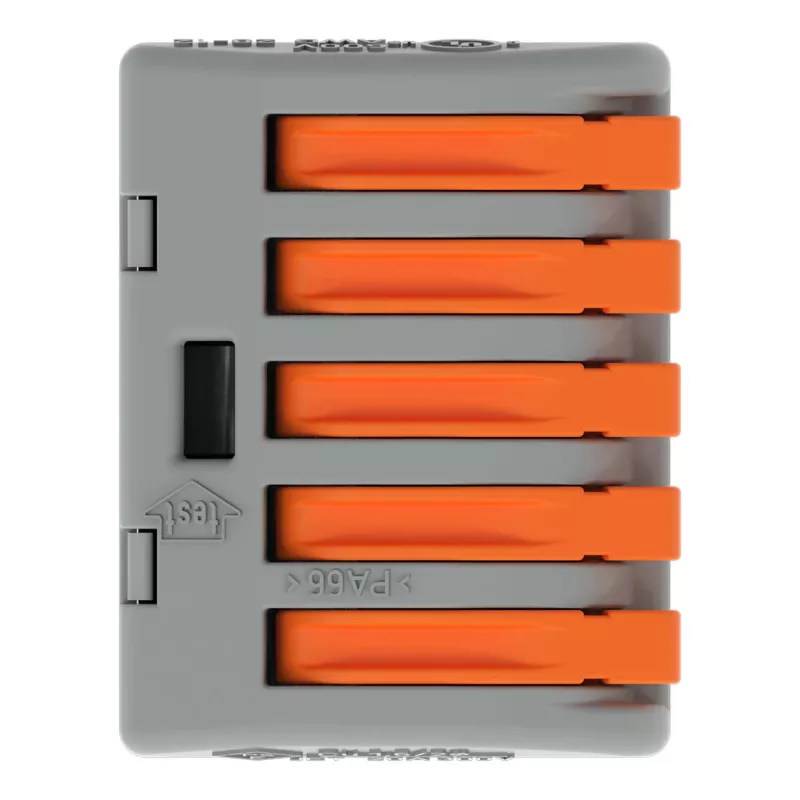

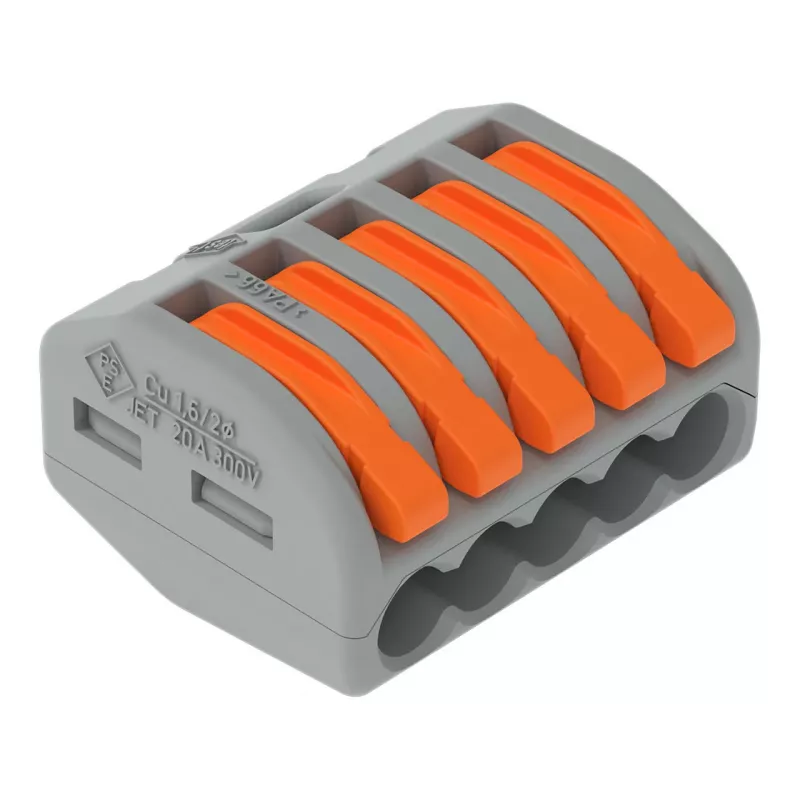

Bloco de bornes compacto de 5 condutores WAGO 222-415 com alavanca, ligação de mola, 32 A, 400 V, cinzento/laranja

The WAGO 222-415 is a compact 5-conductor lever-operated spring clamp terminal block designed for fast and reliable wiring connections. Part of the renowned CAGE CLAMP® family, this terminal block offers tool-free operation and maintenance-free connections, making it ideal for a wide range of electrical installations. With a rated voltage of 400 V (EN) and 600 V (UL), and a rated current of 32 A, it supports solid, stranded, and fine-stranded conductors from 0.08 mm² up to 4 mm² (28-12 AWG). The housing is made of durable polyamide (PA66) with a flammability rating of UL94 V-2, ensuring safety and longevity. The grey/orange color coding aids in identification. Suitable for free wiring applications, it is approved by VDE, UL, CSA, and ENEC.

Advantages

Tool-free lever operation for quick and easy wiring. Maintenance-free spring clamp technology ensures reliable, vibration-proof connections. Compact design saves space in junction boxes and control cabinets. Clear color coding (grey/orange) simplifies circuit identification. Wide operating temperature range from -20 °C to +85 °C.

Suitable for

• Electrical installations in residential and commercial buildings
• Industrial control systems and automation
• Lighting and switchgear applications
• Wiring of junction boxes, distribution boards, and terminal boxes

Key specifications

• Number of Conductors: 5
• Connection Type: Lever-operated spring clamp (CAGE CLAMP®)
• Rated Voltage (EN): 400 V
• Rated Voltage (UL): 600 V
• Rated Current: 32 A
• Conductor Sizes: Solid/Stranded 0.08-2.5 mm² (28-12 AWG), Fine-Stranded 0.08-4 mm² (28-12 AWG)
• Stripping Length: 9-10 mm (0.35-0.39 in)
• Pollution Degree: 2
• Housing Material: Polyamide (PA66)
• Contact Material: Electrolytic copper (Cu-ETP)
• Flammability Rating: UL94 V-2
• Operating Temperature: -20 °C to +85 °C
• Color: Grey / Orange
• Mounting Type: Free wiring
• Approvals: VDE, UL, CSA, ENEC

Recommendations

For optimal performance, use with WAGO operating tools and ensure proper stripping length. Suitable for solid, stranded, and fine-stranded conductors. Always follow local electrical codes and regulations.
