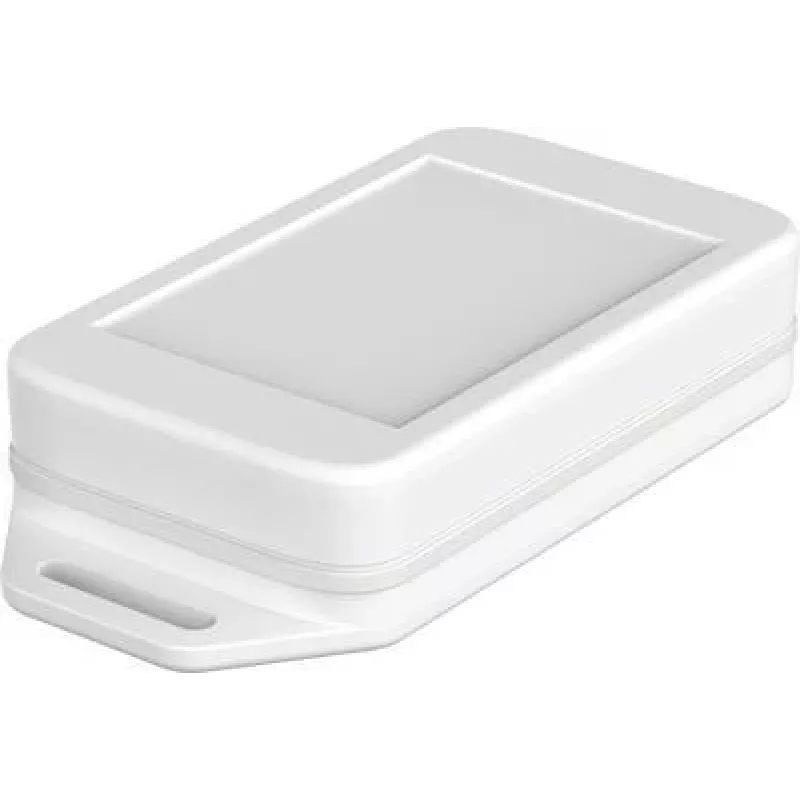

Bopla BoLink BL 704015 WL2 - 9003 caixa universal, policarbonato, branco sinal (RAL 9003), 70,4 x 42,4 x 15,5 mm, IP65, UL 94 V-0 16174333.HMT1

For electronics developers and installers who need a compact, robust housing for PCBs and small modules, the Bopla BoLink BL 704015 WL2 - 9003 offers a clean signal white (RAL 9003) polycarbonate enclosure. Its external dimensions of 70.4 x 42.4 x 15.5 mm provide space for custom electronics while maintaining a slim profile for DIN rail or surface mounting. The enclosure is screwed together with four stainless steel lid screws, ensuring a secure fit for repeated access.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Signal White (RAL 9003)
• External dimensions: 70.4 x 42.4 x 15.5 mm
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Operating temperature: -40 to +80 °C
• Gasket material: Polyurethane (PU)
• Impact resistance: IK07
• UV resistance: Yes
• Internal mounting bosses for PCBs or mounting plates
• RoHS compliant
• Halogen-free

Why choose it

The BoLink series combines a modern, flat design with high mechanical strength and a wide temperature range. The polycarbonate material offers excellent impact resistance and UV stability, making it suitable for both indoor and outdoor applications. The IP65 rating ensures protection against dust and water jets, while the UL 94 V-0 flammability rating adds safety for electrical installations.

Ideal use cases

• Industrial sensor housings
• IoT and smart device enclosures
• Building automation modules
• Test and measurement equipment
• Custom PCB enclosures

Good to know

The enclosure includes a polyurethane gasket for reliable sealing. Mounting bosses inside allow direct PCB attachment without additional brackets. The stainless steel lid screws provide corrosion resistance and a professional finish.
