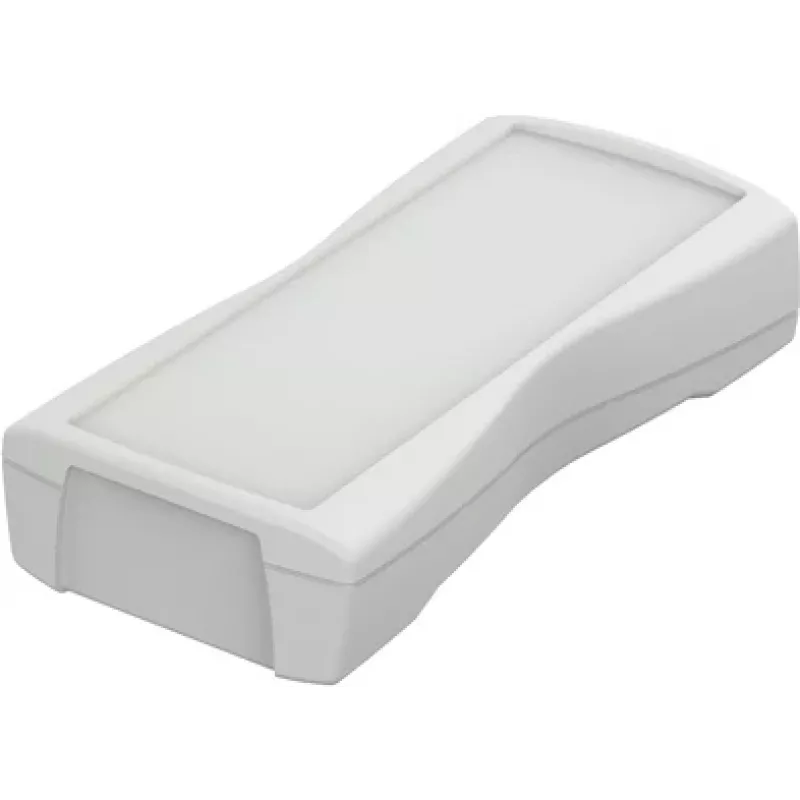

Bopla BOS Streamline BS 400 F-7035 caixa de mão, 159,4 x 77,9 x 33,5 mm, ABS, cinzento-claro (RAL 7035) 82603135.

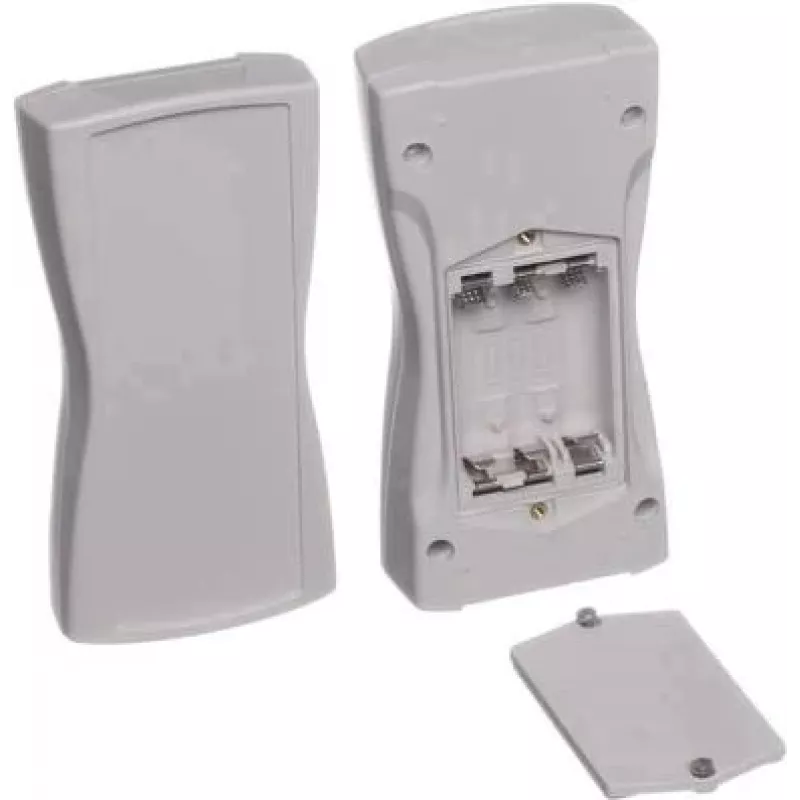

Handheld enclosure from the BOS Streamline series, offering a robust ABS plastic housing with a light grey (RAL 7035) textured finish. Designed for ergonomic handheld applications, it provides a secure screw-on lid and internal PCB mounting bosses for easy assembly.

Advantages

ABS plastic construction delivers impact resistance up to IK07 and a wide operating temperature range from -20 to +80 °C. The enclosure meets UL 94 HB flammability rating and is RoHS compliant.

Suitable for

• Handheld electronic devices
• Remote controls and test instruments
• Industrial control units requiring a light grey enclosure

Key specifications

• External dimensions: 159.4 mm (L) x 77.9 mm (W) x 33.5 mm (H)
• Material: ABS plastic
• Colour: Light grey (RAL 7035)
• Protection class: IP40
• Flammability rating: UL 94 HB
• Impact resistance: IK07
• Operating temperature: -20 to +80 °C
• Lid fastening: Screw-on
• Internal mounting: PCB mounting bosses
• Number of parts: 2 (top and bottom shell)

Recommendations

Ideal for projects requiring a durable, light grey handheld enclosure with easy access for PCB mounting and secure lid closure.
