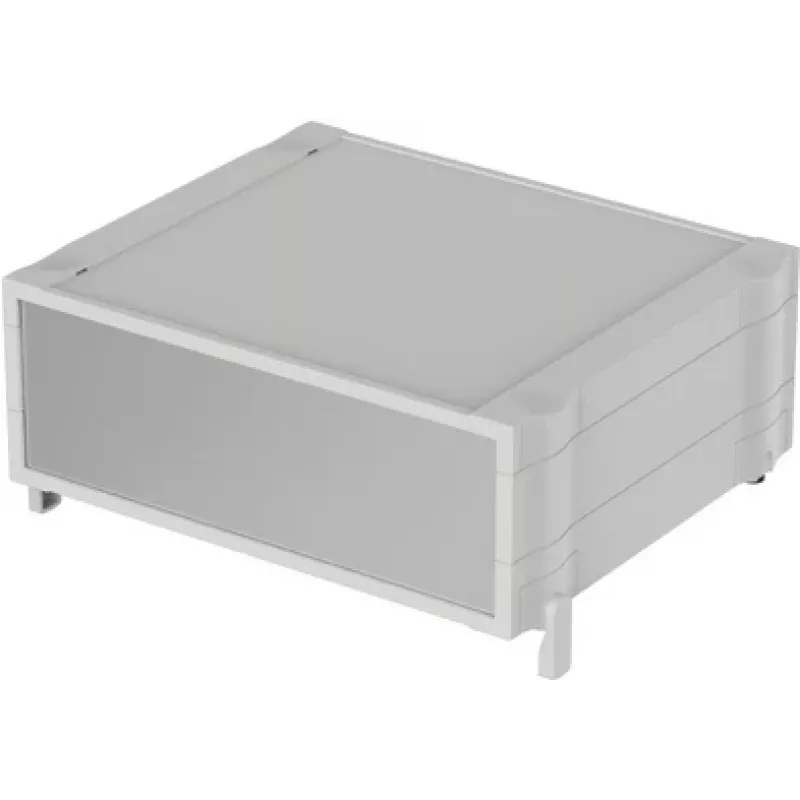

Bopla BOTEGO BO 62618 caixa de mesa, 256,9 x 307,35 x 110,92 mm, ABS, cinzento claro RAL 7035 68626090.MT2

The BOTEGO BO 62618 stands out as a generously sized desktop enclosure with a fine textured light grey finish, ideal for housing control systems and measurement devices where a clean, professional appearance is required. Its screw-fastened lid and integrated PCB mounting bosses simplify assembly and maintenance.

Highlights

• Spacious interior: external dimensions 256.9 mm depth x 307.35 mm width x 110.92 mm height
• Durable ABS construction with UL 94 V-0 flammability rating
• Light grey RAL 7035 colour with fine textured surface
• IP40 protection against solid objects over 1 mm
• Designed for desktop use with included non-slip rubber feet

In daily use

The enclosure's integrated PCB mounting bosses allow for secure board placement without additional hardware, while the screw-fastened lid ensures reliable closure. Operating temperature range from -20 °C to +80 °C makes it suitable for a variety of environments.

Full specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 256.9 mm (D) x 307.35 mm (W) x 110.92 mm (H)
• Protection class: IP40
• Flammability rating: UL 94 V-0
• Operating temperature: -20 °C to +80 °C
• Mounting type: Desktop
• Lid fastening: Screw-fastened
• Surface finish: Fine textured
• Design series: BOTEGO
• Included components: Top part, bottom part, 4 non-slip rubber feet, assembly screws

Final note

With its robust construction and thoughtful design, the BOTEGO BO 62618 provides a reliable housing solution for a wide range of electronic applications.
