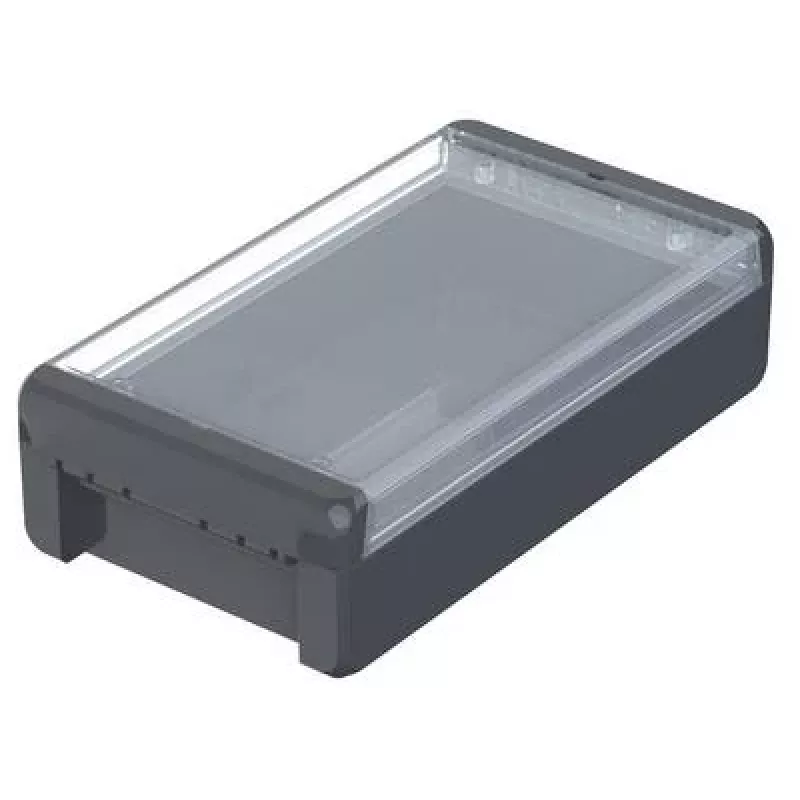

BOPLA CombiNorm-Connect caixa de parede, policarbonato, cinzento-grafite RAL 7024, 60 x 125 x 231 mm, IP65, IK07 96025224

With an IP65 protection rating and IK07 impact resistance, this BOPLA wall-mount enclosure keeps sensitive electronics safe in demanding environments. The polycarbonate housing in graphite grey (RAL 7024) measures 60 x 125 x 231 mm, providing a compact yet spacious solution for industrial control and connection applications.

Overview

Part of the CombiNorm-Connect series, this enclosure is crafted from UV-stabilized, halogen-free polycarbonate. It meets UL 94 V-0 flammability standards and operates reliably from -40 °C to +80 °C. The lid is secured with four stainless steel screws and includes a polyurethane (PUR) gasket for a durable seal.

What stands out

• High protection: IP65 against dust and water jets, IK07 impact resistance
• Robust material: UV-stabilized, halogen-free polycarbonate with UL 94 V-0 rating
• Wide temperature range: -40 °C to +80 °C
• Secure closure: 4 stainless steel screws and PUR gasket
• Wall mounting for flexible installation

Technical details

• External dimensions: 60 mm height, 125 mm width, 231 mm length
• Material: Polycarbonate, graphite grey (RAL 7024)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature: -40 °C to +80 °C
• Gasket material: Polyurethane (PUR)
• Lid fastening: 4x stainless steel screws
• Mounting type: Wall mounting

Our verdict

A dependable enclosure for industrial electronics, combining high protection, durable materials, and a wide operating temperature range in a compact footprint.
