Bopla EUROMAS EM 223 F caixa universal 200 x 150 x 77 mm policarbonato cinzento-claro IP65 62223200

With an IP65 protection rating, this Bopla EUROMAS EM 223 F enclosure keeps dust and water jets out of your electronics. Its polycarbonate body measures 200 x 150 x 77 mm and comes in light grey (RAL 7035), ready for demanding industrial environments.

Overview

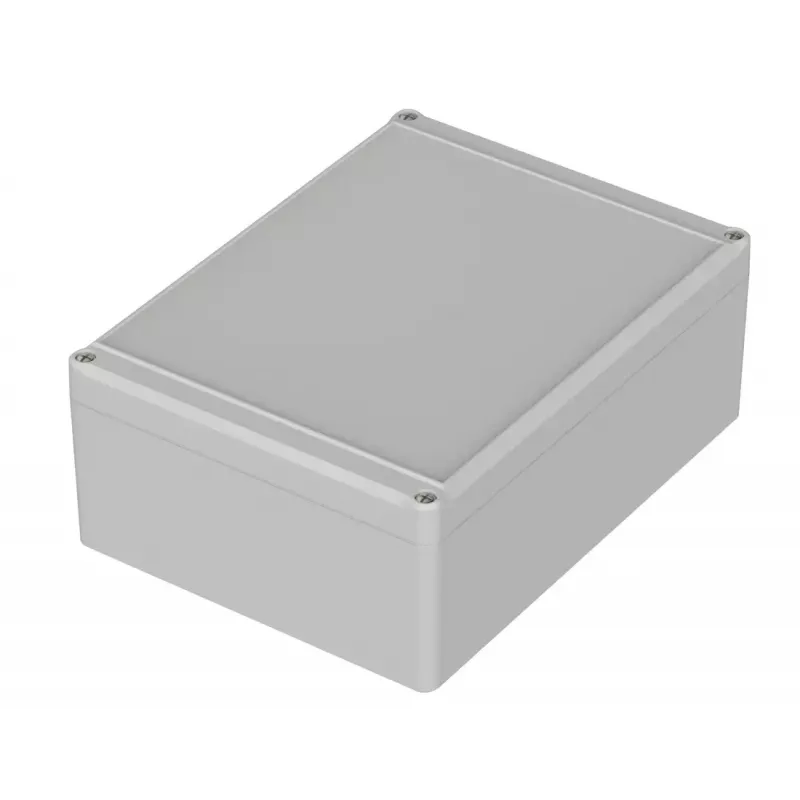

The EUROMAS EM 223 F is a universal enclosure from Bopla, designed for housing electrical and electronic components. The light grey polycarbonate shell offers a balance of impact resistance and chemical resilience, while the opaque lid is secured with captive stainless steel screws for repeated access.

What stands out

• IP65-rated protection against dust and water jets
• Polycarbonate construction with UL 94 V-2 flammability rating
• Captive stainless steel lid screws for secure, tool-friendly closure
• Polyurethane foam gasket ensures a reliable seal
• Operating temperature range from -40°C to +80°C

Technical details

• External dimensions: 200 x 150 x 77 mm (L x W x H)
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Lid type: Opaque
• Gasket material: Polyurethane (PU) foam
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Mounting: Wall mounting via internal bosses or external brackets
• Chemical resistance: Good resistance to oils, greases, alcohols, weak acids/bases
• UV resistance: Good
• RoHS compliant: Yes
• Halogen-free: Yes

Our verdict

A robust and versatile enclosure for industrial electronics, delivering reliable sealing and long-term durability in a compact form factor.
