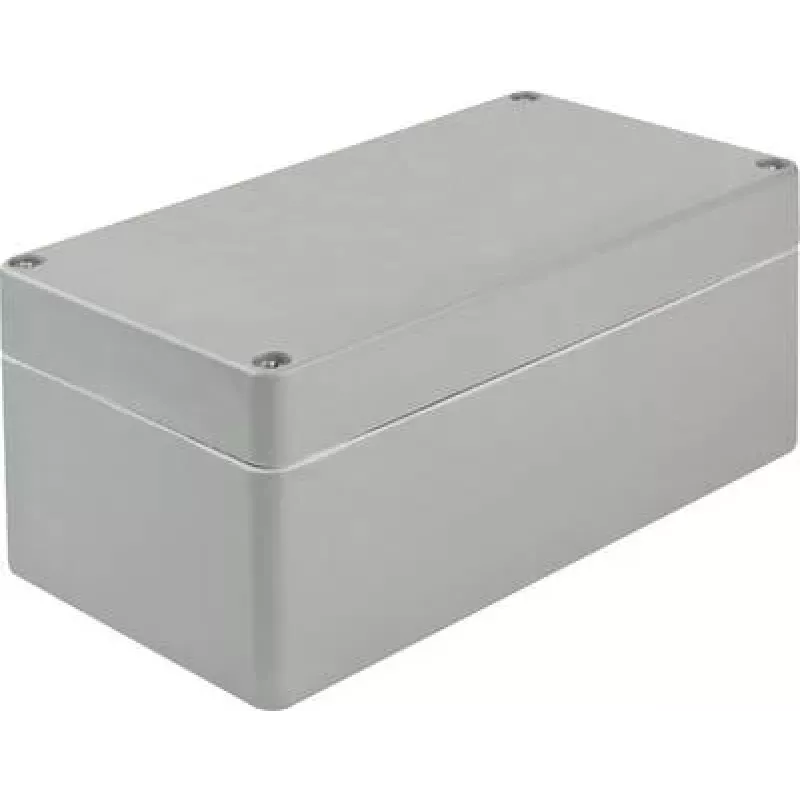

Bopla EUROMAS P 331 Caixa universal 220 x 120 x 90 mm poliéster cinzento-prateado RAL 7001 04331000.H

Protect sensitive electronics in harsh industrial environments with the Bopla EUROMAS P 331 universal enclosure. Measuring 220 x 120 x 90 mm, this polyester housing offers a robust, impact-resistant solution for housing electrical and electronic components where dust, moisture, and mechanical stress are daily challenges.

Who is it for

Engineers, system integrators, and maintenance teams who need a reliable, wall-mountable enclosure for control systems, junction boxes, or custom electronics in factories, outdoor installations, or demanding commercial settings.

Main features

• Durable polyester construction in silver-grey (RAL 7001) for corrosion resistance and long service life.
• IP65 protection class keeps out dust and low-pressure water jets.
• UL 94 V-0 flammability rating for enhanced fire safety.
• Impact resistance rated IK08, suitable for areas with mechanical impacts.
• Integrated mounting bosses for easy installation of PCBs and components.
• Stainless steel lid screws and polyurethane gasket ensure a secure, sealed closure.
• Operating temperature range from -40 °C to +100 °C for extreme conditions.

Specifications

• External dimensions: 220 mm (L) x 120 mm (W) x 90 mm (H)
• Material: Polyester
• Colour: Silver-grey (RAL 7001)
• Series: EUROMAS P
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Impact resistance: IK08
• Lid fasteners: Stainless steel screws
• Gasket material: Polyurethane (PU)
• Mounting: Wall mounting possible (via accessories)
• Internal mounting: Integrated mounting bosses for components/PCBs
• Lid type: Opaque
• Application area: Industrial, electrical, electronic

Tips

For outdoor use, ensure the enclosure is mounted with the lid facing downward or shielded from direct rain to maximize seal life. Pair with Bopla accessories for cable glands and wall brackets to complete your installation.
