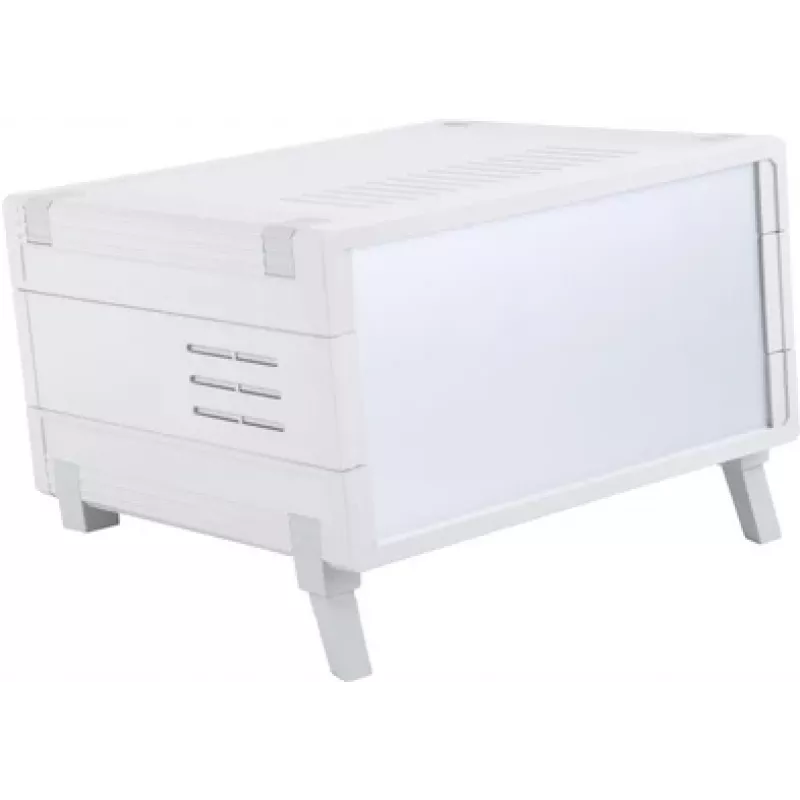

Bopla Ultramas UM 224 caixa universal, 224,2 x 198,9 x 72,4 mm, cinzento-claro, IP30 55520020.MT4

In industrial control cabinets and automation panels, the Bopla Ultramas UM 224 provides a robust housing for electronics that need protection from dust and accidental contact. Its light grey ABS body and screw-on lid make it suitable for desktop instruments, wall-mounted controllers, or custom devices with membrane keypads.

Key specifications

• External dimensions: 224.2 mm (L) x 198.9 mm (W) x 72.4 mm (H)
• Material: ABS (UL 94 HB)
• Colour: Light grey (RAL 7035)
• Ingress protection: IP30
• Lid fastening: 4 screws
• Integrated mounting bosses for PCBs and components
• Recessed area for membrane keypads or front panels
• Operating temperature: -20°C to +80°C
• Halogen-free and RoHS compliant

Why choose it

The Ultramas series offers a practical balance of size and functionality. The recessed lid area allows flush integration of control elements, while the internal bosses simplify PCB mounting. The ABS material provides good impact resistance and a clean surface finish.

Ideal use cases

• Industrial control units
• Measurement and testing equipment
• Custom human-machine interfaces (HMI)
• Desktop or wall-mounted electronics

Good to know

Mounting options include desktop use or wall mounting with optional accessories (not included). The enclosure is halogen-free and complies with RoHS directives.
