Borne de passagem Weidmüller, 2,5 mm², 24 A, 800 V, bege, ligação por parafuso, 50 unidades

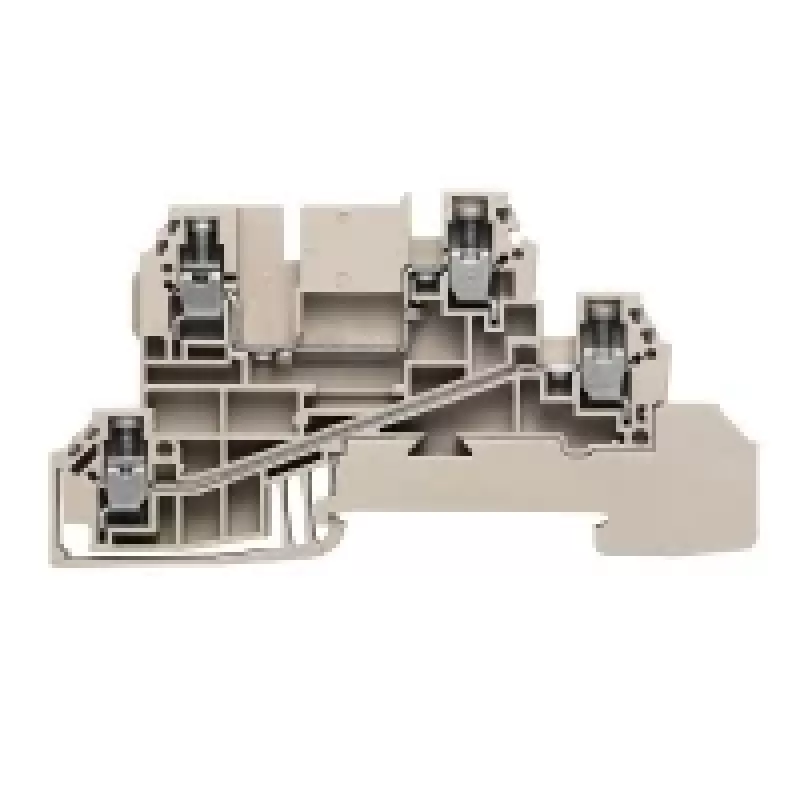

The Weidmüller feed-through terminal block (model 1030300000) is a high-quality screw connection terminal designed for reliable and secure wiring in industrial applications. With a rated cross-section of 2.5 mm², rated voltage of 800 V, and rated current of 24 A, it meets the demands of modern electrical installations. The beige insulating body is made from WEMID material with a V-0 flammability rating, ensuring safety and durability. Suitable for solid and flexible wires from 0.5 to 4 mm² (26-12 AWG), this terminal block is easy to install on DIN rail TS 35. Each pack contains 50 pieces, making it ideal for bulk wiring projects.

Advantages

Reliable screw connection technology ensures secure and vibration-resistant wire termination. The compact design saves space on the DIN rail while providing clear and organized wiring. Wide operating temperature range from -50 °C to +120 °C allows use in harsh environments. Multiple approvals (CE, cURus, EAC, KEMA, ATEX) guarantee compliance with international standards.

Suitable for

• Industrial control panels and switchgear
• Building automation and distribution boards
• Machine and plant engineering
• Railway and transportation applications
• Process and energy industries

Key specifications

• Product Type: Feed-through terminal block
• Connection Technology: Screw connection
• Number of Potentials: 1
• Number of Connections: 2
• Rated Cross-Section: 2.5 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Colour: Beige
• Mounting Type: DIN rail TS 35
• Insulating Material: WEMID
• Flammability Rating (UL 94): V-0
• Operating Temperature: -50 °C to +120 °C
• Wire Size (Solid): 0.5 - 4 mm² (26 - 12 AWG)
• Wire Size (Flexible): 0.5 - 4 mm² (26 - 12 AWG)
• Stripping Length: 10 mm
• Tightening Torque: 0.4 - 0.8 Nm
• Pollution Degree: 3
• Overvoltage Category: III
• Approvals: CE, cURus, EAC, KEMA, ATEX
• Packaging Unit: 50 pieces

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. Always follow local electrical codes and regulations. This terminal block is part of a comprehensive range of Weidmüller connection solutions.
