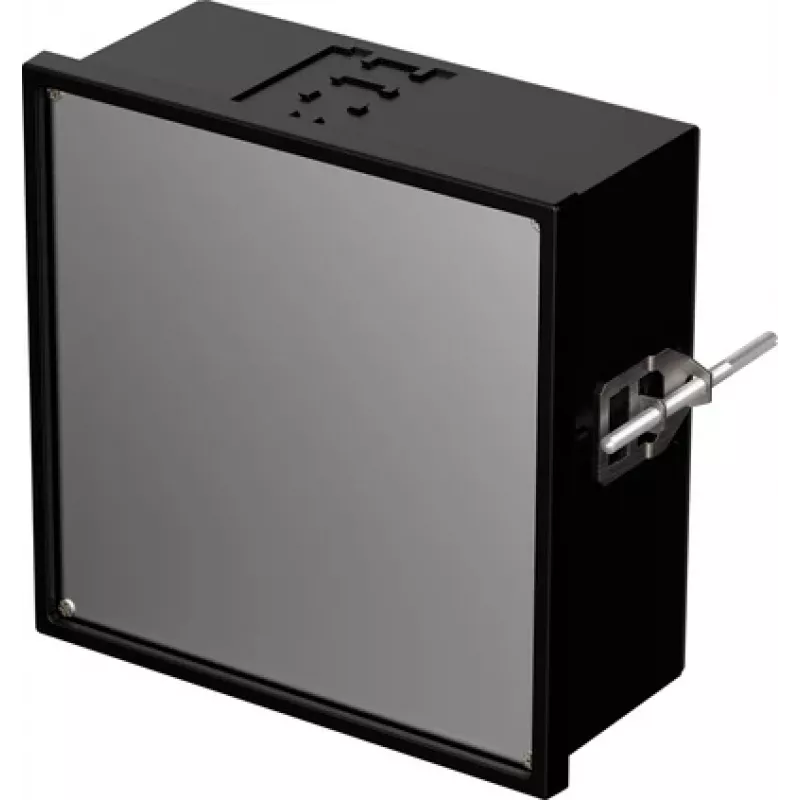

Caixa de embutir Bopla NGS 9806 UNINORM 144 x 144 x 64 mm preto RAL 9005 17980601.MT2

When control panels and industrial electronics need a secure, standard-compliant housing that fits neatly into a panel cut-out, the Bopla NGS 9806 UNINORM built-in enclosure provides a reliable solution. This black ABS unit is engineered for mounting into panels, offering a clean front appearance and protected internals.

Who is it for

This enclosure suits engineers and technicians building measurement and control equipment, industrial electronics, or any application requiring a panel-mounted housing with standardized dimensions. Its UNINORM design ensures compatibility with common cut-out sizes.

Main features

• Built-in (panel mount) design for flush installation
• External dimensions: 144 mm width, 144 mm height, 64 mm depth
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Black, RAL 9005
• Protection class: IP40
• Flammability rating: UL 94 V-0
• Operating temperature range: -20 to +80 °C
• Series: Bopla NGS
• Design standard: UNINORM

Specifications

• External width: 144 mm
• External height: 144 mm
• External depth: 64 mm
• Material: ABS
• Colour: Black (RAL 9005)
• Protection class: IP40
• Flammability rating: UL 94 V-0
• Operating temperature: -20 to +80 °C
• Mounting type: Panel mount / built-in
• Application: Control panels, measurement and control technology, industrial electronics

Tips

Verify your panel cut-out dimensions against the UNINORM standard before installation. The ABS material provides good impact resistance while keeping the enclosure lightweight.
