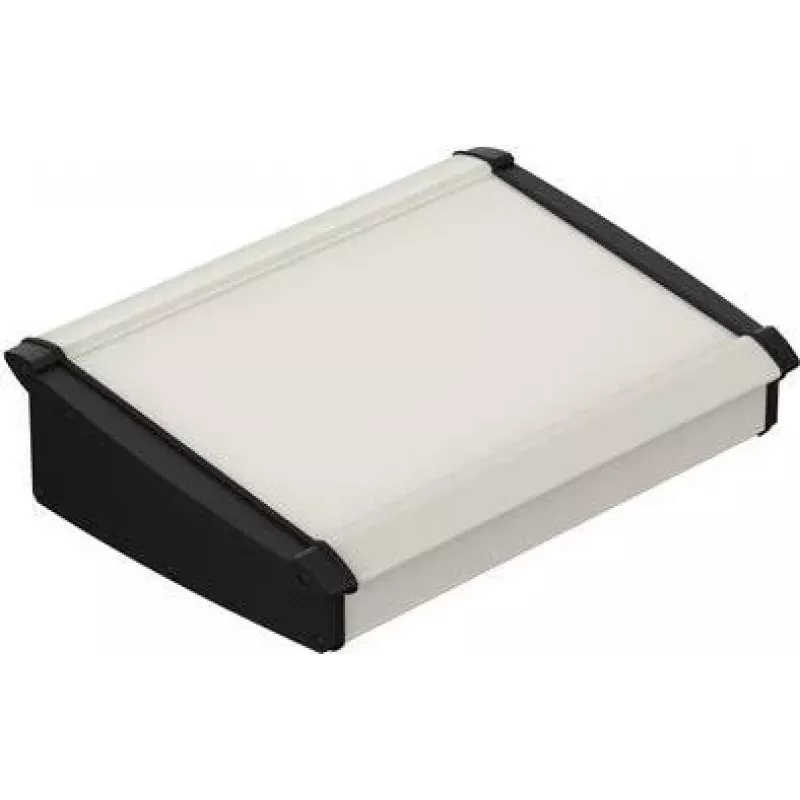

Caixa de perfil Bopla Alu-Topline ATPH-IP 2385-0300 SET 232,60 x 300 x 86,20 mm alumínio natural 92385300.HMT1

Rated IP65 for dust-tight protection and resistance to water jets, the Bopla Alu-Topline ATPH-IP 2385-0300 SET is a robust aluminium profile enclosure built for demanding industrial environments. Its natural anodized finish and screw-on lid with neoprene gasket ensure reliable sealing and long-term durability.

Overview

The Alu-Topline ATPH-IP series combines a sturdy aluminium profile with integrated screw channels, allowing easy mounting of plates and PCBs. The enclosure measures 232.60 mm in width, 300 mm in depth, and 86.20 mm in height, providing ample space for electronics. It supports wall mounting and desktop use, making it versatile for control cabinets, automation systems, and measurement equipment.

What stands out

• IP65 protection against dust and water jets
• Natural anodized aluminium for corrosion resistance
• Integrated screw channels simplify internal assembly
• Wide operating temperature range from -40°C to +100°C
• Screw-on lid with neoprene gasket for secure sealing

Technical details

• Series: Alu-Topline ATPH-IP
• Material: Aluminium
• Colour: Natural
• External dimensions (W x D x H): 232.60 x 300 x 86.20 mm
• Protection class: IP65
• Mounting options: Wall mounting, desktop use
• Lid fastening: Screw-on lid
• Gasket material: Neoprene
• Operating temperature range: -40°C to +100°C
• Scope of delivery: Enclosure body, lid, lid screws, gasket

Our verdict

A solid choice for industrial electronics that require reliable protection and easy customization. The IP65 rating and robust aluminium construction make it suitable for harsh conditions, while the integrated screw channels reduce assembly time.
