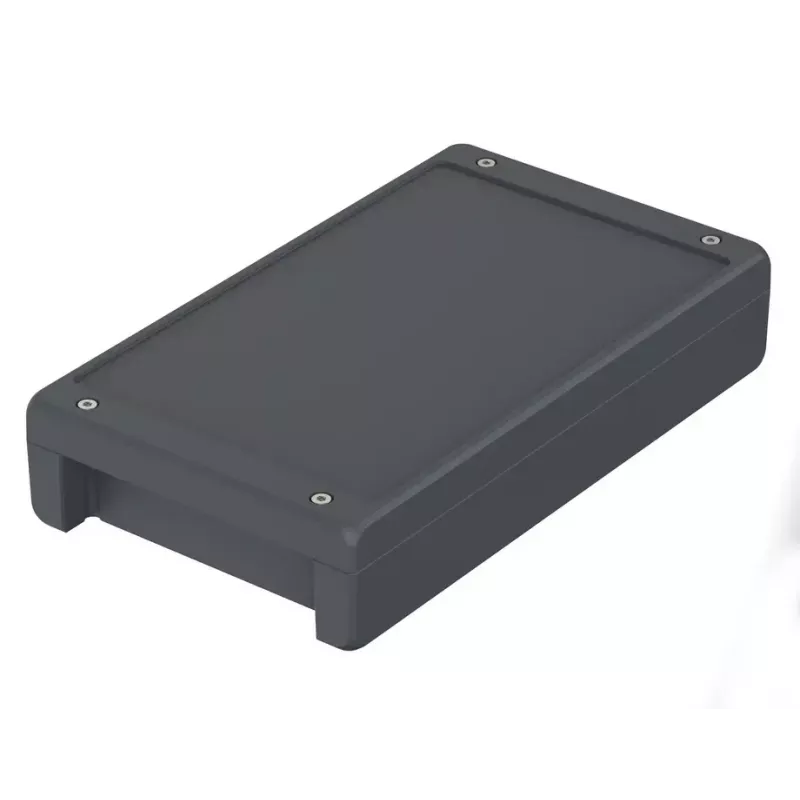

Caixa universal Bopla BA-S 281706 F Bocube Alu 299 x 173 x 60 cinzento grafite RAL 7024 00166324

The Bopla BA-S 281706 F Bocube Alu enclosure stands out with its rugged die-cast aluminium construction and graphite grey powder-coated finish, offering a reliable housing for industrial electronics in demanding environments. Its compact yet spacious dimensions accommodate a variety of internal components, while the silicone gasket and stainless steel captive screws ensure a secure seal.

Highlights

• Robust aluminium body with graphite grey powder coating (RAL 7024)
• External dimensions: 299 x 173 x 60 mm
• Sealed with silicone gasket and stainless steel captive screws
• Suitable for wall or desktop mounting

In daily use

This enclosure is ideal for housing control systems, measurement technology, and other electronics that require protection from dust and moisture. Its mounting bosses allow easy installation of PCBs or DIN rails, and the wide operating temperature range from -40 to +80 °C makes it versatile for both indoor and outdoor applications.

Full specifications

• Material: Aluminium
• Colour: Graphite Grey (RAL 7024)
• External dimensions: 299 x 173 x 60 mm
• Protection class: IP66 / IP67
• Impact resistance: IK08
• Gasket material: Silicone
• Lid fastening: Stainless steel screws (captive)
• Operating temperature range: -40 to +80 °C
• Mounting type: Wall mounting, desktop
• Internal mounting options: Mounting bosses for PCBs/DIN rails
• Surface treatment: Powder-coated

Final note

A solid choice for engineers seeking a durable, sealed enclosure for industrial electronics projects.
