Ficha coaxial DeLOCK 90357

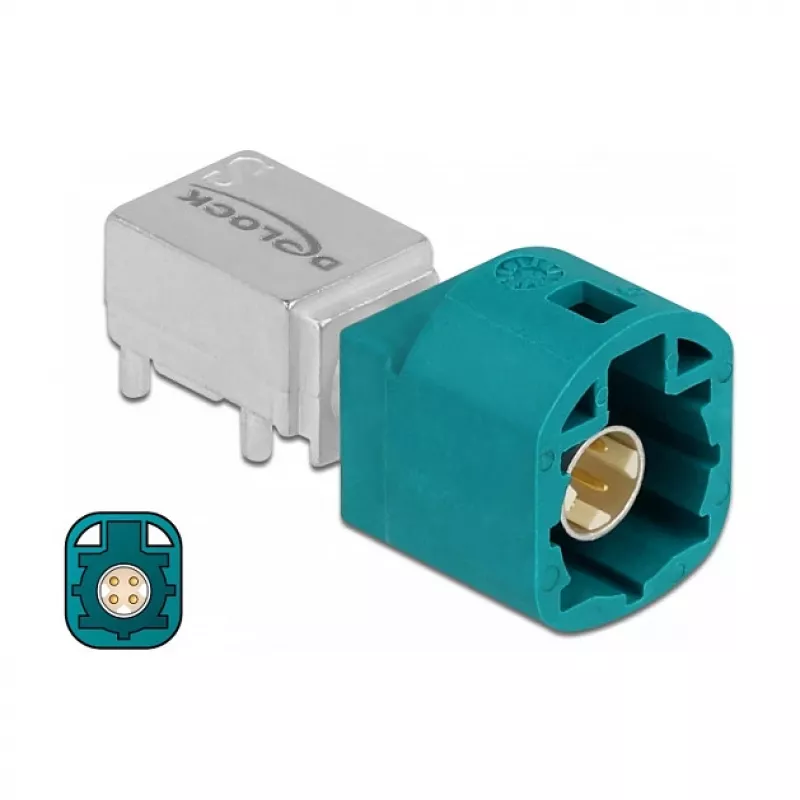

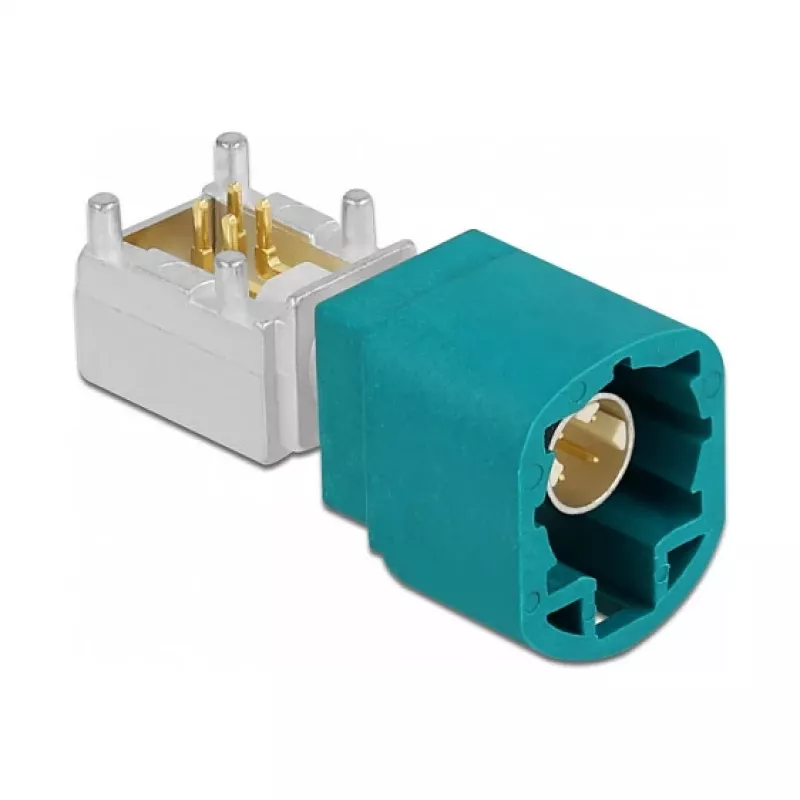

The DeLOCK 90357 coaxial connector is a compact male HSD Z connector with a 90° angle, designed for reliable coaxial connections in electronic systems and vehicle electronics. It measures 12 mm in width, 28 mm in depth and 14 mm in height, and is supplied as a single piece in a polybag. The connector’s small footprint makes it suitable for installations where space is limited.

Advantages

The angled male HSD Z design provides secure coaxial signal transmission while saving space. Its compact dimensions and single-piece delivery simplify installation in confined areas. The connector comes in blue colour for easy identification and is suitable for integration into electronic components and vehicle electronic assemblies.

Suitable for

Key specifications

How to use

Align the male HSD Z connector with the corresponding female receptacle and insert at a right angle until it seats securely. Ensure the mating connector and assembly are compatible with HSD Z coaxial interfaces. Avoid applying excessive force during insertion to prevent damage to the connector or mating socket.

Recommendations

Use the DeLOCK 90357 in installations where a compact, right-angle coaxial connection is needed; verify mechanical and electrical compatibility with the target device and avoid exposure to conditions outside the specified operating environment for the connected equipment.
