Fonte de alimentação MEAN WELL UHP-200-5 200W 5V entrada 90-264V

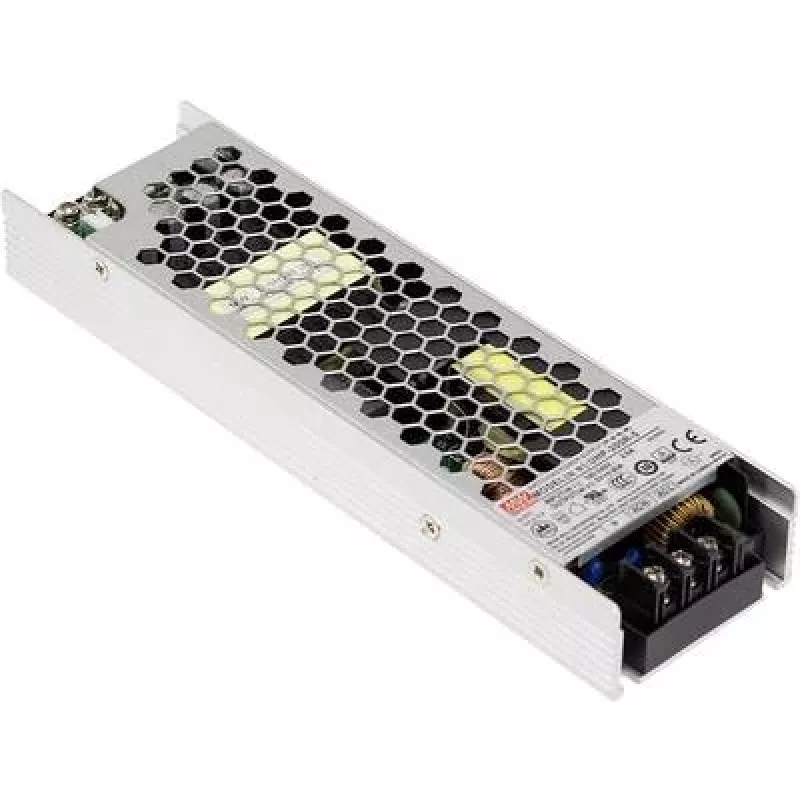

The MEAN WELL UHP-200-5 is a slim enclosed AC-DC power supply with active PFC, providing a single regulated 5 VDC output at up to 40 A and a total output power of 200 W. It accepts a wide input voltage range of 90–264 VAC, is RoHS compliant and has a compact mechanical profile (55 mm × 194 mm × 26 mm) suitable for installations where space is limited.

Advantages

The unit delivers a stable 5 V output up to 40 A with built-in PFC for improved power factor and reduced mains distortion. Its slim enclosed housing enables installation in tight spaces while ensuring electrical protection. Compliance with RoHS indicates reduced hazardous substances. The adapter’s wide input range makes it compatible with global AC mains voltages.

Suitable for

• Embedded systems and single-board computers requiring 5 V / up to 40 A
• Industrial control panels and automation devices
• LED drivers and lighting systems powered from 5 V
• Telecommunications equipment and network devices

Key specifications

• Manufacturer: MEAN WELL (brand: mean well)
• Model / MPN: UHP-200-5
• EAN: 4021087040648
• Output: 5 VDC, 40 A (single output)
• Total output power: 200 W
• Input voltage range: 90–264 VAC
• Form factor: slim enclosed power supply
• Dimensions (W × D × H): 55 mm × 194 mm × 26 mm
• Features: Active PFC, RoHS compliant

How to use

Mount the UHP-200-5 in a location with adequate ventilation and secure it according to the installation guidelines. Connect the AC input to a compatible 90–264 VAC mains source, observing correct earth/grounding and polarity where applicable. Connect the 5 VDC output to the load ensuring the current draw does not exceed 40 A and that wiring and connectors are rated for the required current. Verify output voltage under load and follow any manufacturer-recommended safety and installation procedures.

Recommendations

For reliable operation, ensure sufficient cooling and use wiring rated for high current; avoid exceeding the 40 A output rating. Observe local electrical codes and grounding practices. If used in series or parallel configurations, consult MEAN WELL documentation to ensure safe operation.
