ILME TMAV24.32 capa alta tipo T, tamanho 104.27, 4 parafusos, 1x entrada reta M32, cinzento

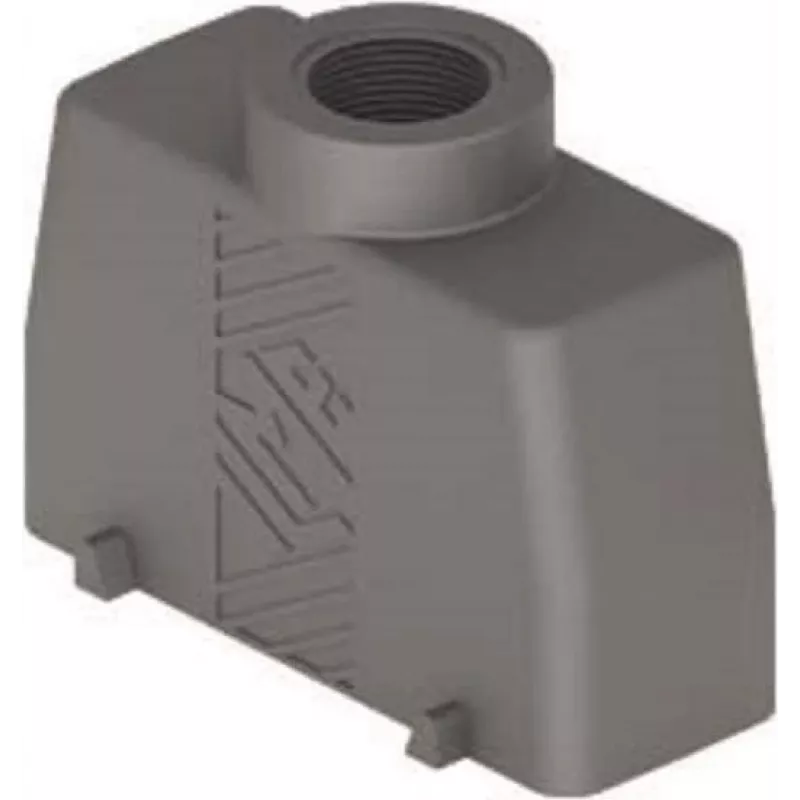

The ILME TMAV24.32 is a high-profile T-Type hood from the 104.27 series, engineered for robust industrial connectivity. Its die-cast aluminum body with powder coating provides superior mechanical strength and corrosion resistance, while the straight M32 cable entry ensures straightforward cable routing. The four-bolt locking mechanism guarantees a secure and vibration-resistant connection, making it ideal for demanding environments.

Advantages

This hood offers a reliable sealing solution with an IP66 protection rating, safeguarding connections against dust and powerful water jets. The NBR gasket maintains its sealing properties across a wide temperature range from -40°C to +125°C, ensuring performance in extreme conditions. The high-profile design accommodates larger cable bend radii, reducing stress on cable terminations.

Suitable for

• Industrial machinery and automation systems
• Outdoor installations exposed to weather
• Applications requiring frequent connection and disconnection
• 24-pole insert configurations in size 104.27

Key specifications

• Housing type: Hood
• Series: T-Type
• Size: 104.27
• Profile: High
• Cable entry: 1x M32, straight
• Locking mechanism: 4 bolts
• Material: Die-cast aluminum
• Surface treatment: Powder coated
• Color: Grey (RAL 7040)
• Gasket material: NBR
• Operating temperature: -40°C to +125°C
• Compatibility: For 24-pole inserts

Recommendations

For optimal sealing, pair with a compatible ILME cable gland and insert. Ensure the mating surface is clean and the bolts are tightened to the recommended torque to maintain the IP66 rating.
