InLine Suporte de parede para TFT / LED / Plasma 81–140 cm, 32 polegadas–55 polegadas, máx. 50 kg

InLine Suporte de parede para TFT / LED / Plasma 81–140 cm, 32 polegadas–55 polegadas, máx. 50 kg
InLine Suporte de parede para TFT / LED / Plasma 81–140 cm, 32 polegadas–55 polegadas, máx. 50 kg
InLine Suporte de parede para TFT / LED / Plasma 81–140 cm, 32 polegadas–55 polegadas, máx. 50 kg
InLine Suporte de parede para TFT / LED / Plasma 81–140 cm, 32 polegadas–55 polegadas, máx. 50 kg
InLine Suporte de parede para TFT / LED / Plasma 81–140 cm, 32 polegadas–55 polegadas, máx. 50 kg
InLine Suporte de parede para TFT / LED / Plasma 81–140 cm, 32 polegadas–55 polegadas, máx. 50 kg
28,26 €
PDF
PDF
Stock 10 Código 1449364 Modelo 23119B Garantia 3 anos

Envios e devoluções

Entrega prevista sexta-feira, 27 de novembro
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

Faça uma pergunta – o assistente IA responde de imediato.

Descrição

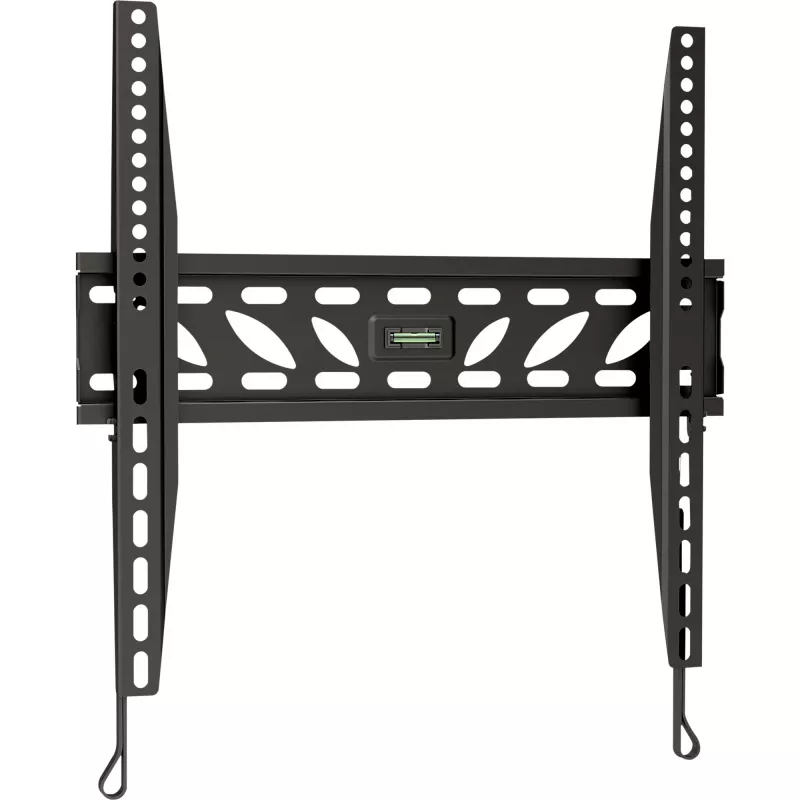

The InLine Wall Bracket is designed for secure wall installation of TFT, LCD, LED and Plasma screens from 32" to 55" (81–140 cm) with a maximum load of 50 kg. It supports VESA mounting patterns up to 400 x 400 mm and keeps the screen at a slim distance of 2.6 cm from the wall, offering a low-profile, stable fixing suitable for home entertainment, theatre setups, video conferencing and digital signage.

Advantages

This wall bracket provides a compact, space-saving mount with a 2.6 cm wall offset and robust support for displays up to 50 kg. It is compatible with common VESA standards (up to 400 x 400 mm) and comes in a neutral black finish to fit a variety of interior styles. The design focuses on stable, secure attachment and easy integration with different screen types including TFT, LED and Plasma.

Suitable for

  • Home and theatre entertainment systems
  • Video conferencing displays in offices or meeting rooms
  • Digital signage in retail, hospitality or public spaces

Key specifications

  • Compatible screen size: 32"–55" (81–140 cm)
  • Maximum weight capacity: 50 kg
  • Maximum VESA: 400 x 400 mm
  • Distance from wall: 2.6 cm
  • Colour: Black
  • Brand: InLine, MPN: 23119B, EAN: 4043718172238

How to use

Select a suitable mounting location on a load-bearing wall and verify that the chosen wall type and fixings can support the combined weight of the screen and bracket. Attach the bracket to the wall using appropriate anchors and screws for your wall material, then fix the VESA plate to the display using the matching VESA holes. Lift the screen and secure it onto the wall bracket according to the bracket’s installation points, ensuring all fasteners are tightened and the screen is level.

Recommendations

Use appropriate wall anchors for the specific wall material and, if in doubt, consult a professional installer. Verify VESA pattern and screen weight before installation and periodically check fasteners for safety.
Destaques principais
  • Wall Mounting Bracket
  • Supports flat screen monitors with a diagonal measurement from 81cm to 140cm (32‘ to 55’)
  • Compatible with VESA 400x400mm standards

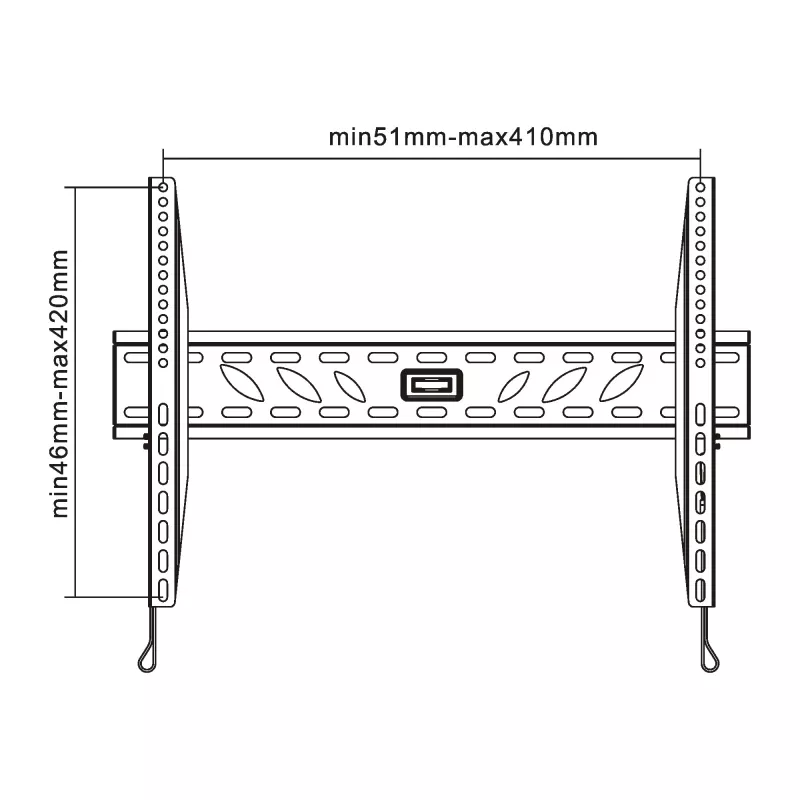

  • Horizontal adjustment by axis shift from min. 51mm, max 410mm
  • Vertical adjustment by holes min. 46mm, max 420mm
  • Level bubble included in the casing
  • Load capacity 50Kg
  • Distance from wall approx. 26mm
  • Maximum weight capacity: 50 kg
  • Minimum screen size: 81.3 cm (32") Maximum screen size: 81.3 cm (32") Wall
  • Minimum VESA mount: 400 x 400 mm Maximum VESA mount: 400 x 400 mm
  • Black

Especificações

Especificações
Ajuste de inclinação
No
Altura da embalagem
45 mm
Capacidade máxima de peso
50 kg
Certificação
No
Compatibilidade do tamanho do ecrã
584.2 - 1066.8 mm (23 - 42")
Cor do produto
Preto
Distância à parede (máx.)
2.6 cm
Distância à parede (mín.)
2.6 cm
Gestão de cabos
No
Largura da embalagem
115 mm
Peso
1.41 kg
Peso da embalagem
1.57 kg
Profundidade da embalagem
470 mm
Rotativo
No
Suporte VESA máximo
400 x 400 mm
Suporte VESA mínimo
400 x 400 mm
Tamanho máximo do ecrã
81.3 cm (32")
Tamanho mínimo do ecrã
81.3 cm (32")
Tipo de montagem
Parede
Volume da embalagem
2400 cm³

Folheto

Abrir documento
Histórico de preços nos últimos 6 meses
InLine Suporte de parede para TFT / LED / Plasma 81–140 cm, 32 polegadas–55 polegadas, máx. 50 kg
Atual
28,26 €
Mais baixo 7 d
27,97 €
Mais alto 7 d
28,26 €
Variação 24 h
0,00 €   0%
Variação 7 d
+0,29 €   +1%
Variação 30 d
0,00 €   0%
