Suporte de parede para TV InLine 23111A para TFT LCD LED Plasma 60-100 polegadas

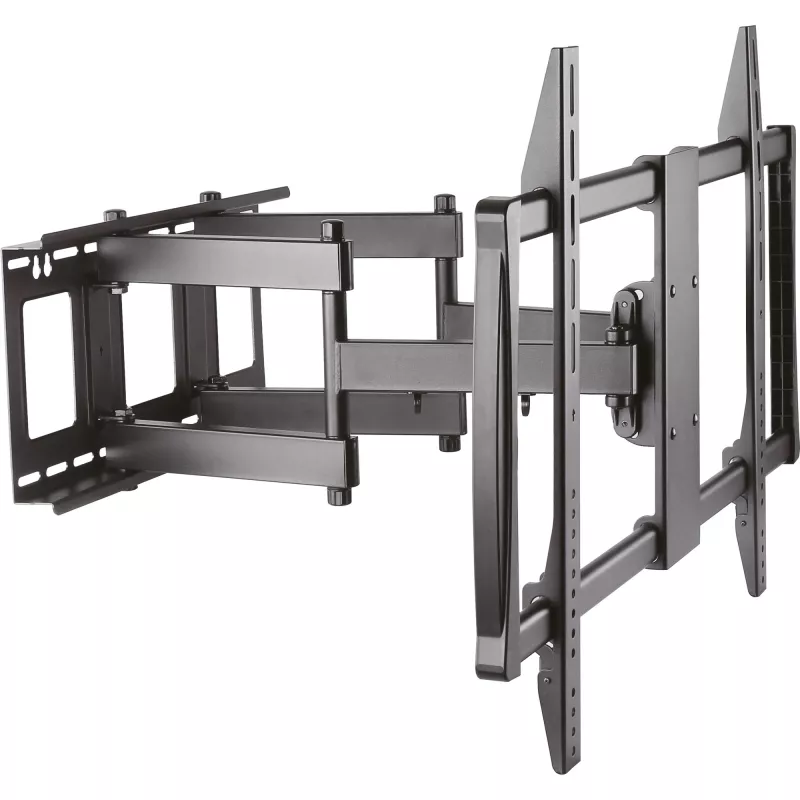

The InLine 23111A TV wall bracket is designed for mounting one flat-panel display between 60 and 100 inches. It supports screens up to 80 kg and fits a wide range of VESA patterns from 200 x 200 mm up to 600 x 900 mm. With adjustable tilt and swivel, and a low-profile to extended mounting depth, the bracket provides flexible positioning while maintaining a discreet black finish that integrates with most interiors.

Advantages

This wall bracket offers a combination of stability and adjustability: a robust load capacity for large screens, broad VESA compatibility to accommodate various TV models, and both tilt and swivel motion to optimise viewing angles. The adjustable depth from the wall lets you choose a compact installation or a more extended forward position for better access to connectors. The black finish and slim profile reduce visual impact once installed.

Suitable for

• Mounting 60–100 inch TFT, LCD, LED or plasma TVs in living rooms or home theaters
• Wall installations in conference rooms or meeting spaces
• Public display placements such as lobbies or waiting areas
• Home installations where adjustable tilt and swivel are needed for optimal viewing

Key specifications

• Supported screen size: 60–100 inches
• Maximum load capacity: 80 kg
• VESA compatibility: 200 x 200 mm up to 600 x 900 mm
• Tilt range: -15° to +15°
• Swivel range: -45° to +45°
• Distance from wall: 7 cm (minimum) to 62.5 cm (maximum)
• Colour: black
• Supports one display

How to use

Select a suitable wall area capable of supporting the combined weight of the bracket and display. Use the VESA measurements on your TV to align the bracket's mounting plate and fasten the bracket to wall studs or appropriate heavy-duty anchors following the included hardware instructions. Attach the TV to the bracket using the matching VESA holes and secure all bolts. Adjust tilt and swivel to the desired viewing angle and verify all fasteners are tightened before final use. If unsure about structural suitability or mounting at height, consult a professional installer.

Recommendations

Ensure the mounting surface is rated to carry at least 80 kg plus the weight of the bracket. Use suitable anchors for the wall material, keep accessible the TV connectors by planning the minimum or maximum extension from the wall as needed, and periodically check that all fasteners remain tight for safe long-term use.
