Suporte de parede de canto InLine para TFT / LED / Plasma 37 polegadas a 63 polegadas até 60 kg

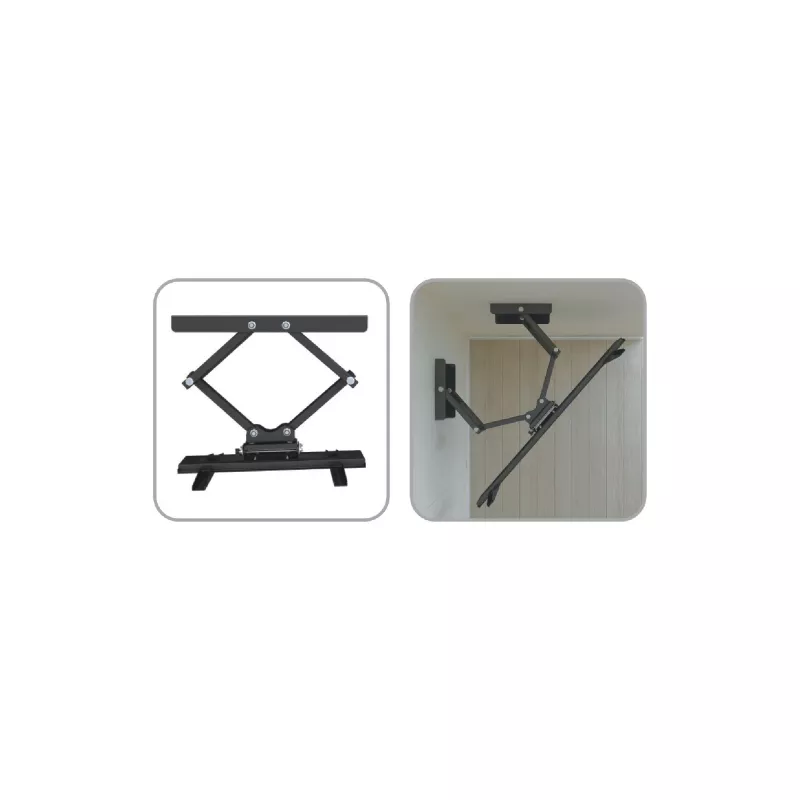

Special solution for corner mounting:The wall mount has been specially designed for installation in room corners and allows optimal use of available space.
For large displays from 94-160 cm (37-63"):Suitable for LED, LCD, plasma and TFT devices in professional and private environments.
High load capacity up to 60 kg:Robust construction for secure mounting even with heavy flat-screen televisions.
VESA compatibility up to 800 x 400 mm:Supports common VESA standards and hole spacings up to 826 x 404 mm (W x H).
Tiltable by +/-15°:Allows flexible adjustment of the viewing angle for optimal viewing.

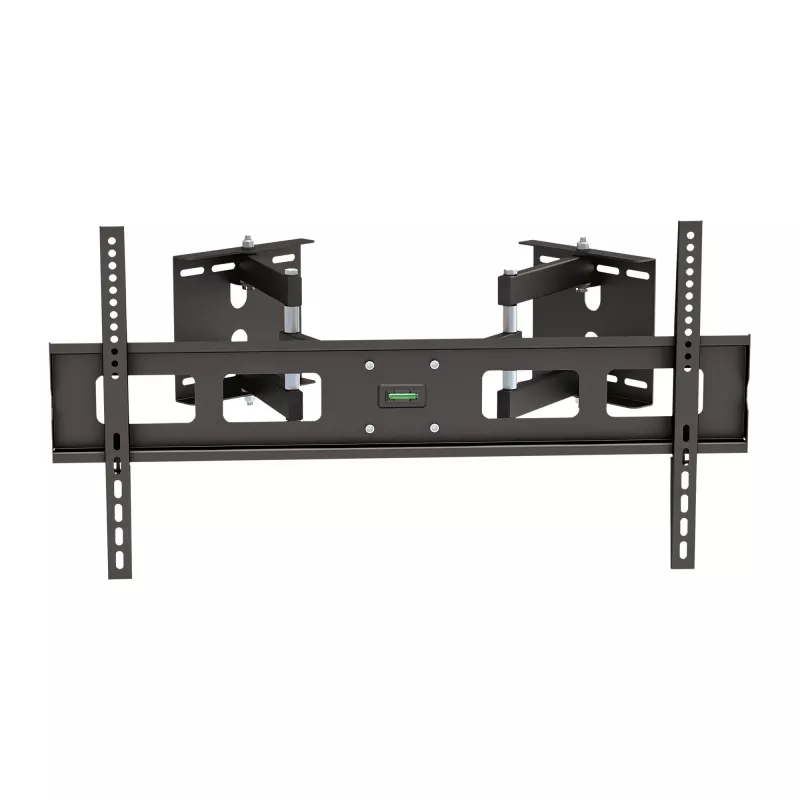

The InLine® corner wall mount is a specially developed solution for the secure mounting of LED, LCD, plasma and TFT displays in wall corners. It is ideal for rooms where classic wall installation is not possible or not desired.
With support for screen diagonals of 94-160 cm (37-63"), the mount covers a wide range of modern flat-screen televisions. The construction is designed for a load of up to 60 kg, offering reliable mounting even for larger devices.

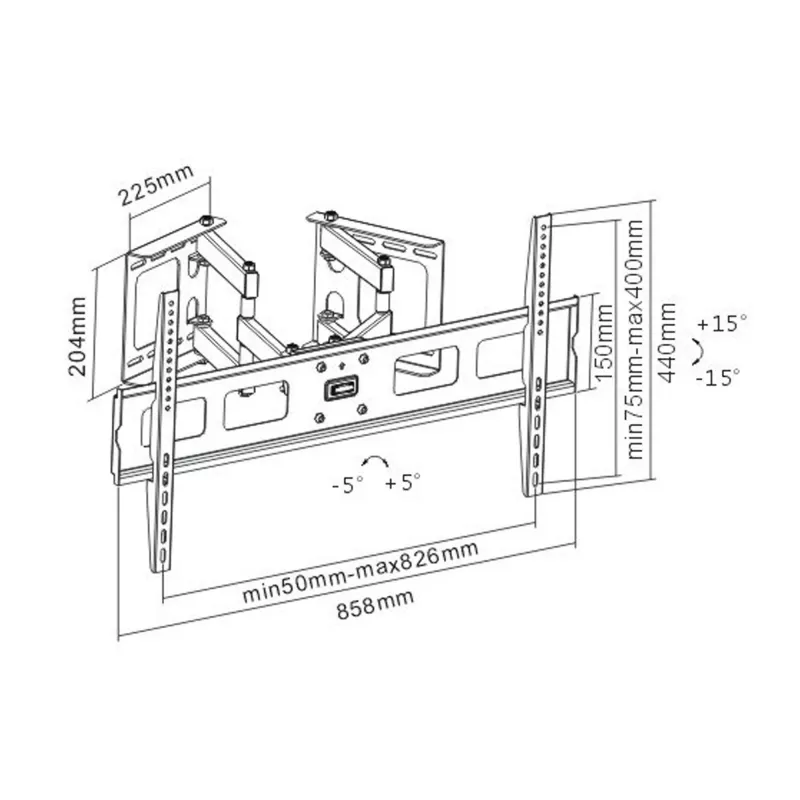

The mount supports VESA standards up to 800 x 400 mm and hole spacings up to 826 x 404 mm (W x H). The tilt function of +/-15° allows the viewing angle to be adjusted to different installation heights and room conditions.

Suitable for: LED / LCD / Plasma / TFT
Screen size: 94-160 cm (37-63")
Max. load capacity: 60 kg
Max. VESA: 800 x 400 mm
Hole spacing: up to 826 x 404 mm (W x H)
Tilt: +/-15

InLine Corner Wall Bracket for TFT / LED / Plasma 37" to 63" up to 60kg. Maximum weight capacity: 60 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 94 cm (37"), Minimum VESA mount: 800 x 400 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: -15 - 15°. Product colour: Black

How to use

Position the bracket in the corner where the screen is to be mounted, mark and drill holes according to the mounting plate. Fix the bracket securely to a suitable wall surface using appropriate anchors or bolts for the wall material. Attach the display to the bracket following the screen manufacturer’s VESA pattern and fastening instructions, then adjust the tilt angle between -15° and 15° to obtain the desired viewing position.

Recommendations

Ensure the wall structure can support the combined weight of the bracket and display (up to 60 kg). Use anchors and fasteners rated for the wall type (concrete, brick, timber stud, etc.) and follow the screen manufacturer’s mounting instructions. If unsure, consult a professional installer.
