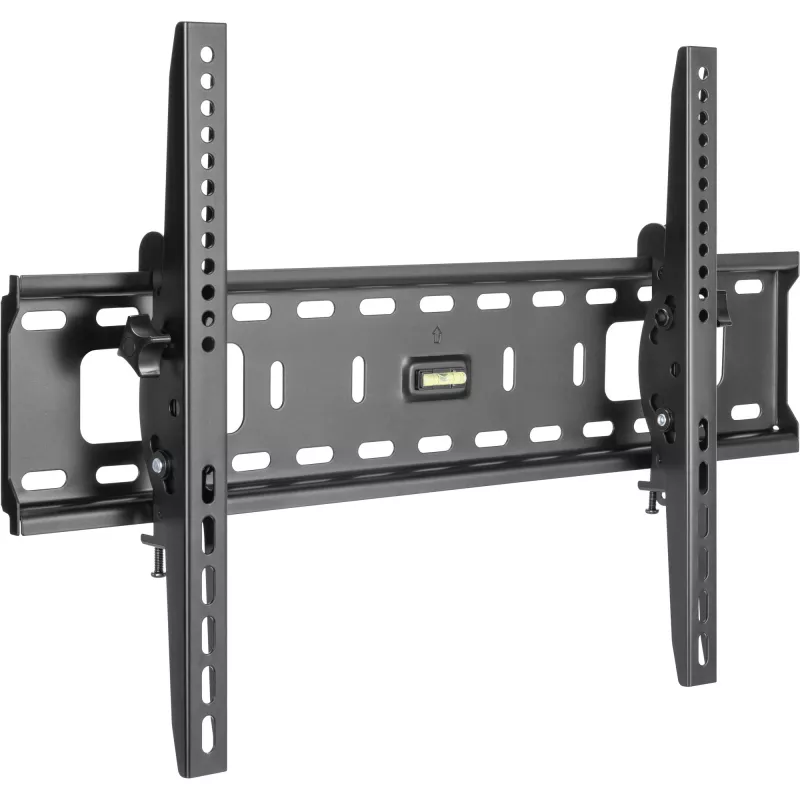

Suporte de parede InLine 23117A para TFT LED Plasma 32-70 polegadas

The InLine Wall Bracket 23117A is a fixed mounting solution for TFT, LED and Plasma screens with diagonal sizes from 32 to 70 inches and a maximum load of 75 kg. It keeps the screen at a distance of 6.3 cm from the wall and has a compact black finish suitable for residential and commercial interiors. The bracket supports a tilt adjustment between -10° and 10° to help set a comfortable viewing angle.

Advantages

The bracket is compatible with a wide range of TV and monitor types (TFT, LED, Plasma) and screen sizes from 32" to 70". It offers a solid load capacity of up to 75 kg and a small mounting offset of 6.3 cm for a neat wall-mounted appearance. The -10° to 10° tilt range enables basic angle adjustment while the black color provides neutral aesthetic integration.

Suitable for

• Home living rooms and bedrooms
• Office meeting rooms and reception areas
• Retail displays and public information screens

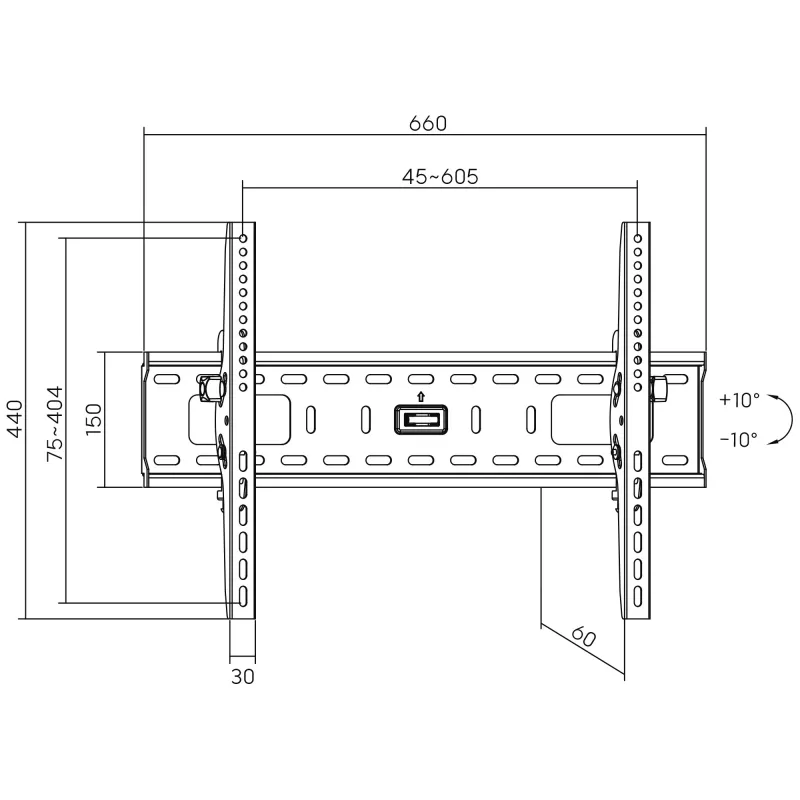

Key specifications

• Brand: InLine
• Model / MPN: 23117A
• Compatible screen size: 32–70 inches
• Maximum weight capacity: 75 kg
• Tilt adjustment: -10° to 10°
• Distance from wall when mounted: 6.3 cm
• Colour: Black
• EAN: 4043718172306

How to use

Determine a suitable mounting location on a load-bearing wall and mark the bracket fixing points according to the supplied template. Use appropriate screws and wall anchors for your wall type and secure the wall plate. Attach the VESA-compatible interface to the screen, lift the display on to the mounted bracket and lock it in place following the manufacturer’s instructions. Adjust the tilt within the -10° to 10° range to obtain the desired viewing angle.

Recommendations

Check the VESA mounting pattern and the screen weight before installation. Use suitable fixing hardware for the wall material and, if necessary, consult a professional installer for heavy displays or non-solid walls.
