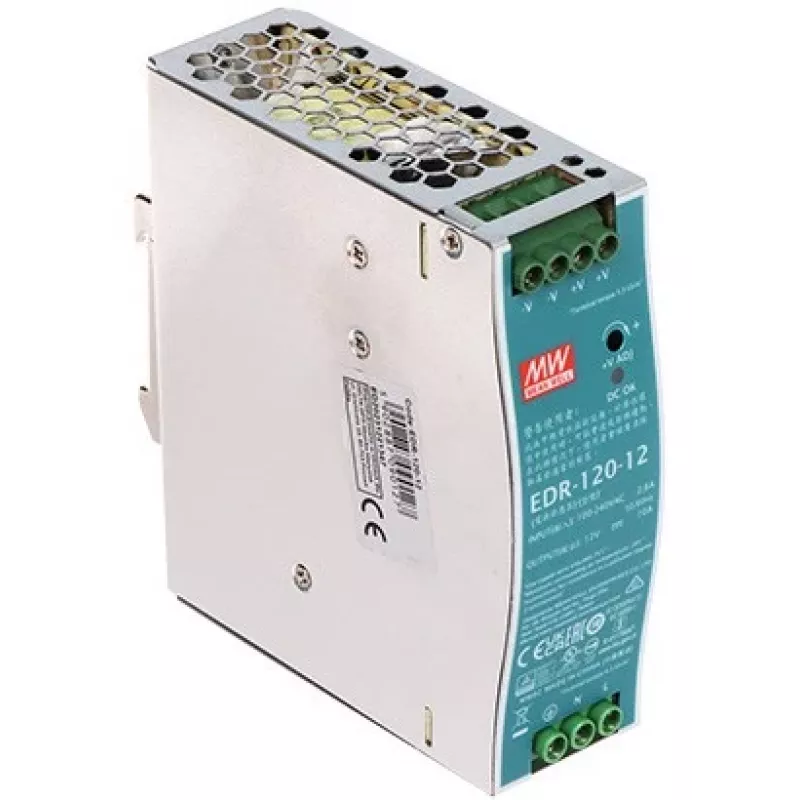

MEAN WELL EDR-120-12 Fonte de alimentação para calha DIN 120W 12V 10A Fonte de alimentação comutada industrial

Industrial control panels and building automation systems often demand a reliable power source that can be mounted directly onto a DIN rail, withstand harsh electrical environments, and deliver stable DC output without interruption. The MEAN WELL EDR-120-12 answers that need with a robust 120-watt switching power supply engineered for continuous operation in demanding applications. It converts a universal AC input of 90-264VAC (or 127-370VDC) into a tightly regulated 12V DC output at up to 10 amps, making it ideal for powering sensors, PLCs, relays, and other automation components.

Who is it for

This power supply is built for system integrators, panel builders, and maintenance engineers who need a compact, DIN rail mountable unit that meets international safety and EMC standards. Its metal housing and free air convection cooling ensure durability without the need for fans, reducing maintenance and noise in control cabinets. The adjustable output voltage (10.8-13.8V) allows fine-tuning for specific load requirements, while comprehensive protection features guard against short circuits, overloads, over voltage, and over temperature.

Main features

• 120W output power with 12V DC / 10A rating for high-demand loads
• Universal AC input range 90-264VAC (127-370VDC) for global use
• DIN rail mountable on TS-35/7.5 or TS-35/15 rails for quick installation
• High efficiency up to 88% reduces energy waste and heat generation
• Adjustable output voltage from 10.8V to 13.8V for flexibility
• Protection against short circuit, overload, over voltage, and over temperature
• Free air convection cooling – no fan, silent operation, longer lifespan
• Low no-load power consumption (<0.5W) meets energy-saving requirements
• 3KVAC isolation between input and output for safety
• Complies with UL 508 and TUV EN60950-1 safety standards
• EMC compliance: EN55022 Class B, EN61000-3-2 Class A

Specifications

• Output Voltage: 12V DC
• Output Current: 10A
• Rated Power: 120W
• Input Voltage: 90-264VAC / 127-370VDC
• Efficiency: 88%
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Operating Temperature: -20 to +60°C
• Cooling: Free air convection
• Ripple & Noise: 120mVp-p
• Isolation Voltage: 3KVAC
• No Load Power Consumption: <0.5W
• Hold Up Time: 20ms at 230VAC full load
• Housing Material: Metal case
• Safety Standards: UL 508, TUV EN60950-1
• EMC Standards: EN55022 Class B, EN61000-3-2 Class A

Tips

When installing the EDR-120-12, ensure adequate ventilation around the unit to allow free air convection. For applications requiring a different output voltage, use the built-in potentiometer to adjust within the specified range. Always verify that the total load does not exceed 120W to maintain reliable operation and long service life.
