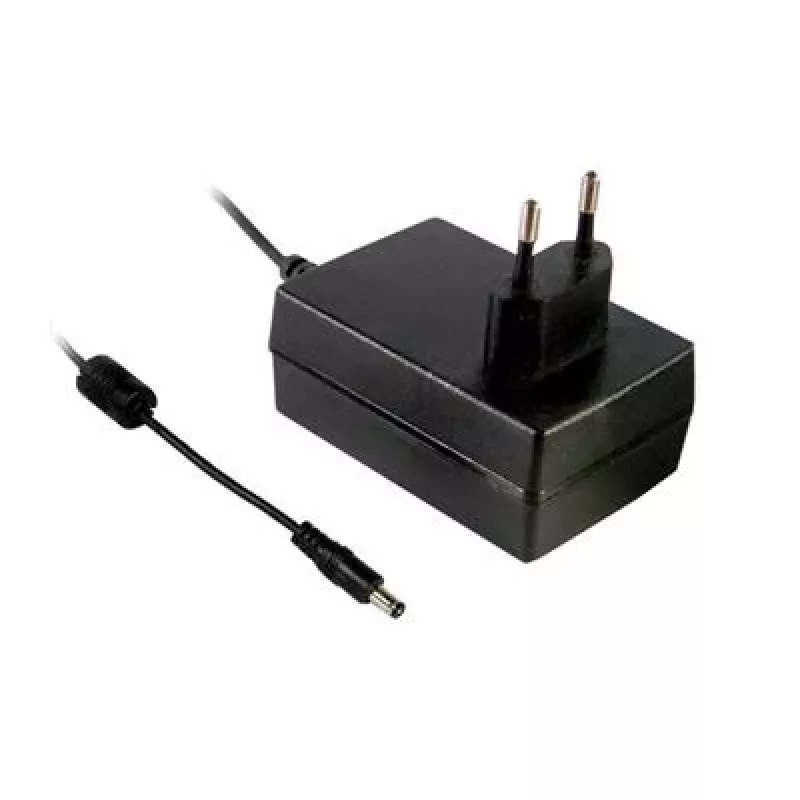

MEAN WELL GSM36E12-P1J Fonte de Alimentação Médica, 12V DC 3A 36W, Ficha EU, Ficha DC Oca de 2,1x5,5mm

Medical-grade wall-mount AC/DC power adapter delivering a fixed 12V DC output at up to 3A (36W). Its high efficiency (Level VI) and low no-load consumption (<0.1W) make it a reliable choice for sensitive medical devices.

Advantages

Designed for medical applications with 2xMOPP isolation and 4000V AC input-to-output isolation. Wide input voltage range (80-264V AC) ensures global compatibility. Integrated protections against short circuit, overload, over voltage, and over temperature enhance durability.

Suitable for

• Medical devices requiring safe, isolated power
• Portable diagnostic equipment
• Patient monitoring systems
• Laboratory instruments

Key specifications

• Output: 12V DC, 3A, 36W
• Input: 80-264V AC, 47-63Hz
• Connector: DC barrel jack 2.1 x 5.5 x 11mm, center positive
• Efficiency: Level VI (DOE VI / CoC Tier 2)
• Operating temperature: -30 to +70°C
• DC cable length: 120cm

Recommendations

Verify your device's voltage and current requirements before use. Ensure the DC plug dimensions match your equipment.
