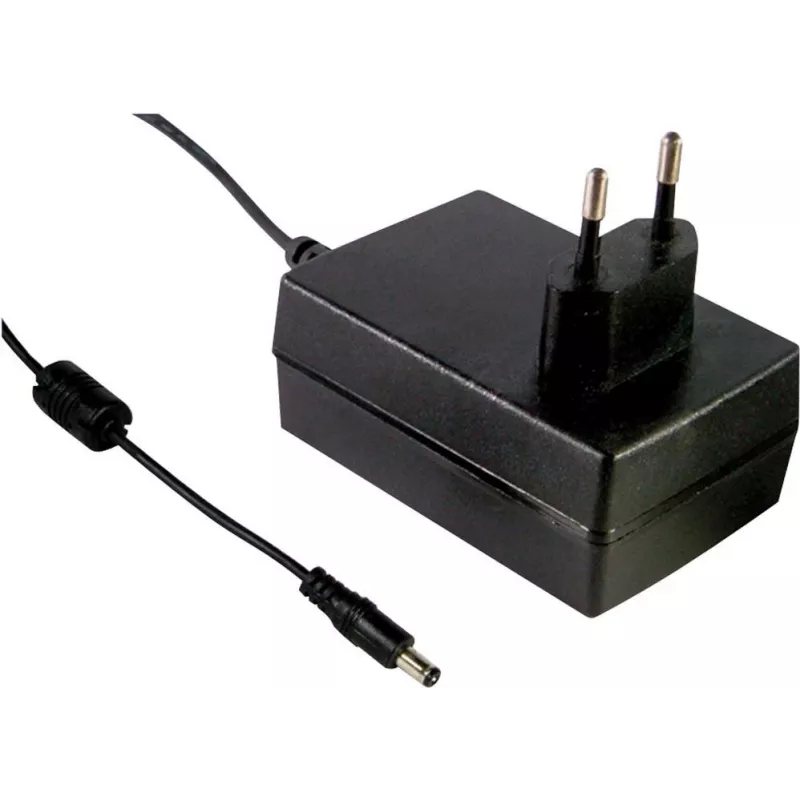

MEAN WELL GSM36E24-P1J adaptador de mesa médico 36W, 24V DC, 1,5A, ficha 2,1x5,5mm

Medical-grade desktop power adapter delivering a stable 24 V DC output at up to 1.5 A (36 W) from a universal 80–264 V AC input. The GSM36E24-P1J meets stringent 2xMOPP safety standards, making it suitable for healthcare devices and other applications requiring reinforced isolation and ultra-low leakage current.

Advantages

High efficiency up to 88% and no-load power consumption below 0.1 W reduce energy costs and heat. The fully enclosed plastic case provides mechanical protection, while built-in protections against short circuit, overload, over voltage, and over temperature ensure long-term reliability. With a mean time between failures exceeding 500,000 hours, this adapter is built for continuous operation.

Suitable for

• Medical devices requiring IEC/EN60601-1 compliance
• Portable diagnostic instruments and patient monitors
• Industrial equipment needing a compact, reliable 24 V power source
• Laboratory and test equipment with low ripple requirements

Key specifications

• Output: 24 V DC, 1.5 A, 36 W
• Input: 80–264 V AC (113–370 V DC)
• Efficiency: 88%
• Ripple & noise: 150 mVp-p max
• Leakage current: < 100 µA
• Isolation: 4000 V AC input to output
• Connector: DC plug 2.1 x 5.5 x 11 mm, center positive
• Input connector: IEC320-C8 (2-pin)
• Operating temperature: -30 to +70 °C
• Certifications: UL, cUL, TUV, CB, CE, FCC

Recommendations

For medical and industrial applications demanding safety, efficiency, and durability, the GSM36E24-P1J offers a compact, fully enclosed solution with global certifications and a long service life.
