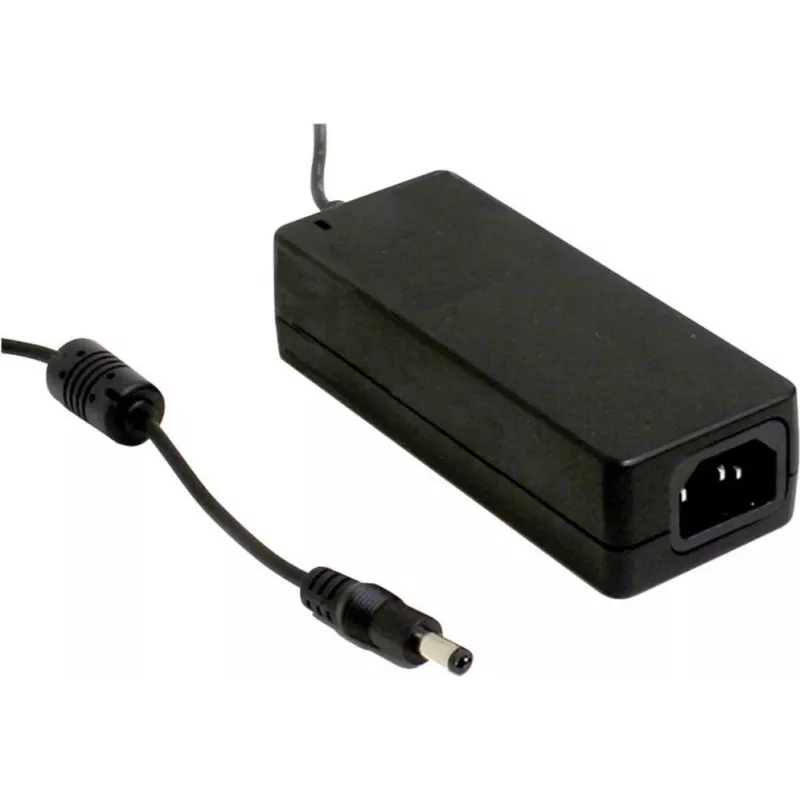

MEAN WELL GSM60A05-P1J Adaptador de corrente AC/DC médico 40W com saída DC 5V e ficha DC 2,1mm

Powering sensitive medical devices demands a supply that is not only reliable but also meets stringent safety standards. The MEAN WELL GSM60A05-P1J delivers exactly that: a 40W AC/DC adapter that converts mains voltage to a stable 5V DC output, ensuring your equipment operates without interruption. With medical-grade isolation and low leakage current, it protects both patients and operators.

Who is it for

This adapter is ideal for medical equipment manufacturers, healthcare facilities, and technicians who need a dependable power source for devices such as patient monitors, diagnostic instruments, and portable medical tools. It is also suitable for industrial applications where safety and efficiency are paramount.

Main features

• 5V DC output at up to 8A, providing 40W of power
• Wide input voltage range: 80–264 VAC, suitable for global use
• Medical safety approvals: ANSI/AAMI ES60601-1 and IEC/EN60601-1 with 2 x MOPP
• Low leakage current (<100µA) for patient safety
• High efficiency up to 87% and no-load power consumption <0.15W
• Comprehensive protections: short circuit, overload, over voltage, over temperature
• Free air convection cooling for silent operation
• Compact desktop style with IEC320-C14 AC inlet and 2.1 x 5.5mm DC plug

Specifications

• Output voltage: 5V DC
• Output current: 8A
• Output power: 40W
• Input voltage: 80–264 VAC
• Input frequency: 47–63 Hz
• Efficiency: up to 87%
• No-load power consumption: <0.15W
• DC connector: 2.1 x 5.5 x 11mm, center positive
• AC inlet: IEC320-C14 (3-pin)
• Isolation voltage: 4000 VAC (input to output)
• Leakage current: <100µA
• Operating temperature: -30 to +70°C
• Cooling: free air convection
• MTBF: >500,000 hours
• Protections: short circuit, overload, over voltage, over temperature

Tips

Before connecting, verify that your device requires a 5V DC input and that the DC plug dimensions match (2.1 x 5.5mm). Ensure the AC power cord is properly rated for your region. For continuous operation in high-temperature environments, allow adequate ventilation around the adapter.
