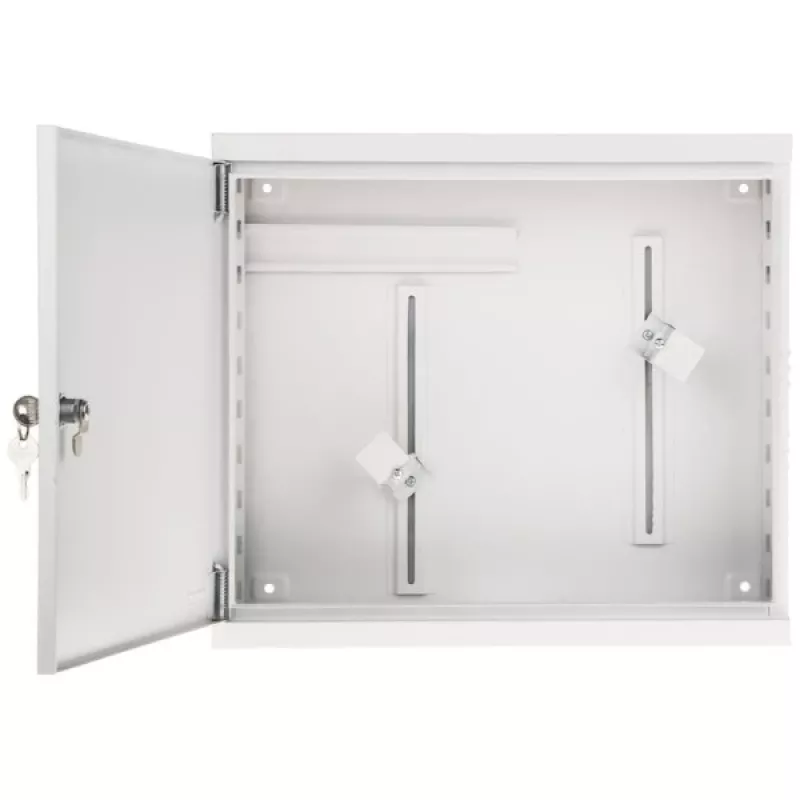

Caixa de parede em aço AWO-DVR-2 para DVR/NVR, 430 x 380 x 115 mm, cinzento (RAL 7035), fechadura com chave, IP20

Security installers and IT technicians often need a rugged, lockable housing to protect recording equipment in offices, retail back rooms, or utility closets. The AWO-DVR-2 steel enclosure provides a secure, ventilated space for DVRs, NVRs, and other small network devices, keeping them safe from tampering and dust while allowing easy access for maintenance.

Key specifications

• External dimensions: 430 x 380 x 115 mm (W x H x D)
• Material: 1.0 mm steel sheet, powder-coated grey (RAL 7035)
• Locking: key lock (cylinder lock) with 2 keys included
• Tamper protection: microswitch with NC contact
• Ventilation: vents on sides and bottom for passive cooling
• Cable management: multiple knock-out openings on top, bottom, and rear
• Mounting: pre-drilled holes for wall mounting
• Door: solid metal, removable, opens 180 degrees
• Protection class: IP20
• Max static load: 15 kg
• Certifications: CE

Why choose it

This enclosure balances security and accessibility. The key lock and tamper switch deter unauthorized access, while the removable door and wide opening angle simplify installation and servicing. Its grey powder-coated finish blends into professional environments, and the knock-out cable entries keep wiring neat and protected.

Ideal use cases

• Housing DVR/NVR units in small business security systems
• Protecting network switches, routers, or alarm control panels
• Organizing IT equipment in server rooms or utility areas
• Preventing tampering in public or semi-public spaces

Good to know

The enclosure is compatible with most standard DVR and NVR models that fit within its internal dimensions. It includes mounting hardware for wall installation. Note that it is rated IP20, so it should be used indoors or in protected environments.
