Placa riser PCI Express x8 DeLOCK 85766

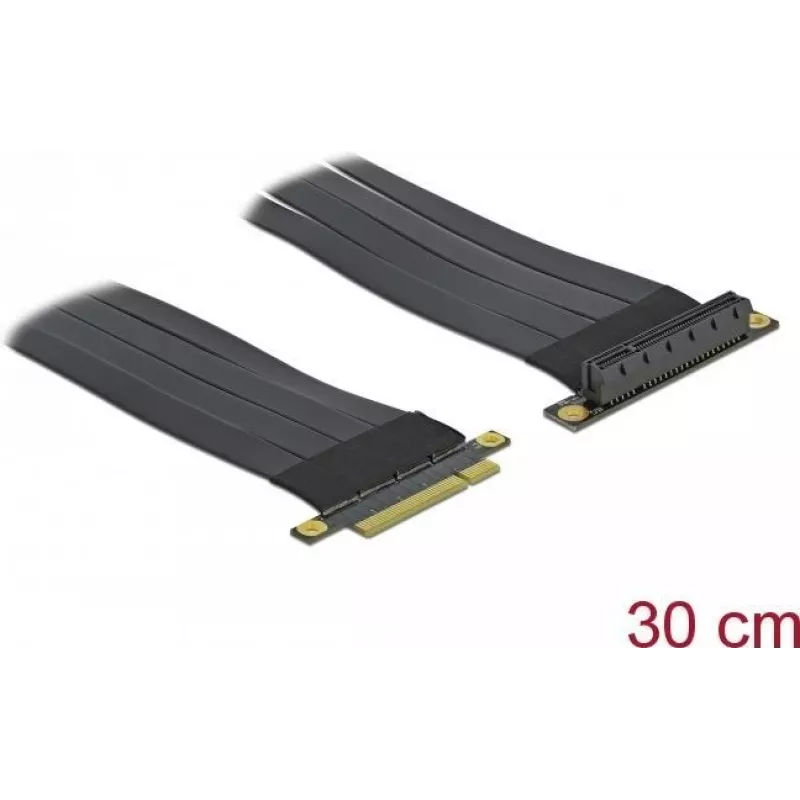

The DeLOCK Riser Card PCI Express x8 (model 85766) is a flexible internal adapter that extends a PCIe x8 slot via a 30 cm cable to connect a PCIe x8 card where space inside the chassis is limited. It provides a PCIe host interface and a PCIe output interface to maintain high-speed data transfer while enabling alternative card placement. The adapter is black and intended for internal installation in desktop systems.

Advantages

The flexible 30 cm cable enables space-saving installation and repositioning of a PCIe x8 card without modifying the motherboard layout. Both host and output interfaces use the PCIe standard to preserve signal compatibility and throughput. The internal design and compact form factor simplify installation in confined cases.

Suitable for

• Connecting a PCIe x8 expansion card in small or crowded computer cases
• Repositioning cards for better airflow or to fit non-standard component layouts
• Testing or bench setups where temporary repositioning of PCIe cards is needed

Key specifications

• Model: DeLOCK 85766
• Interface (host): PCIe
• Interface (output): PCIe x8
• Cable length: 30 cm (flexible)
• Internal installation: yes
• Colour: Black
• EAN: 4043619857661

How to use

Power down the PC and disconnect mains power. Open the computer case and locate the PCIe x8 slot on the motherboard. Insert the riser card’s host connector into the PCIe slot, route the 30 cm cable to the desired location, and secure the output connector into the PCIe x8 card. Reassemble the case and reconnect power. After startup, check the operating system or BIOS to confirm the connected card is recognised.

Recommendations

Ensure the system is powered off before installation and avoid sharp bends in the flexible cable to prevent signal degradation. Use the riser in environments within the computer manufacturer’s recommended temperature and airflow specifications.
