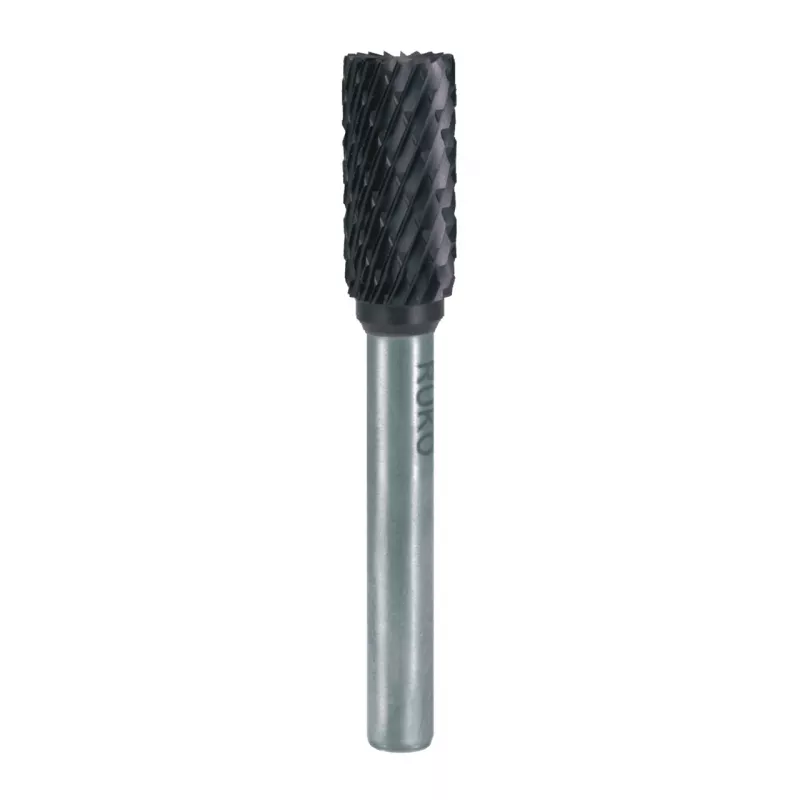

RUKO FRS-DIN8033-HM-TiAlN-Ø12,0mm fresa de haste VHM, 4 arestas, revestida a TiAlN, 12mm de diâmetro de corte

Machinists and CNC operators working with steel, stainless steel, cast iron, and non-ferrous metals rely on this solid carbide end mill for precise slotting, profiling, and finishing operations. The TiAlN coating provides high heat resistance, allowing for increased cutting speeds and longer tool life in demanding applications.

Key specifications

• Tool type: End mill
• Material: Solid carbide (VHM)
• Standard: DIN 8033
• Coating: TiAlN (Titanium Aluminum Nitride)
• Cutting diameter: 12.0 mm
• Shank diameter: 12.0 mm
• Number of flutes: 4
• Helix angle: 30°
• Cutting length (l2): 26 mm
• Overall length (l1): 83 mm
• Cutting edge type: Square end / flat end
• Cutting direction: Right-hand cut
• Shank tolerance: h6
• Manufacturing process: Precision ground
• Coolant supply: External

Why choose it

The TiAlN coating excels in high-temperature environments, reducing wear and enabling efficient machining of tough materials. The solid carbide construction ensures rigidity and precision, while the 4-flute design balances chip evacuation and surface finish quality.

Ideal use cases

• Slotting and profiling in steel and stainless steel
• Finishing operations in cast iron and non-ferrous metals
• General-purpose milling in CNC machining centers

Good to know

This end mill conforms to DIN 8033, ensuring compatibility with standard tool holders and collets. External coolant supply is recommended to maximize tool life and performance.
