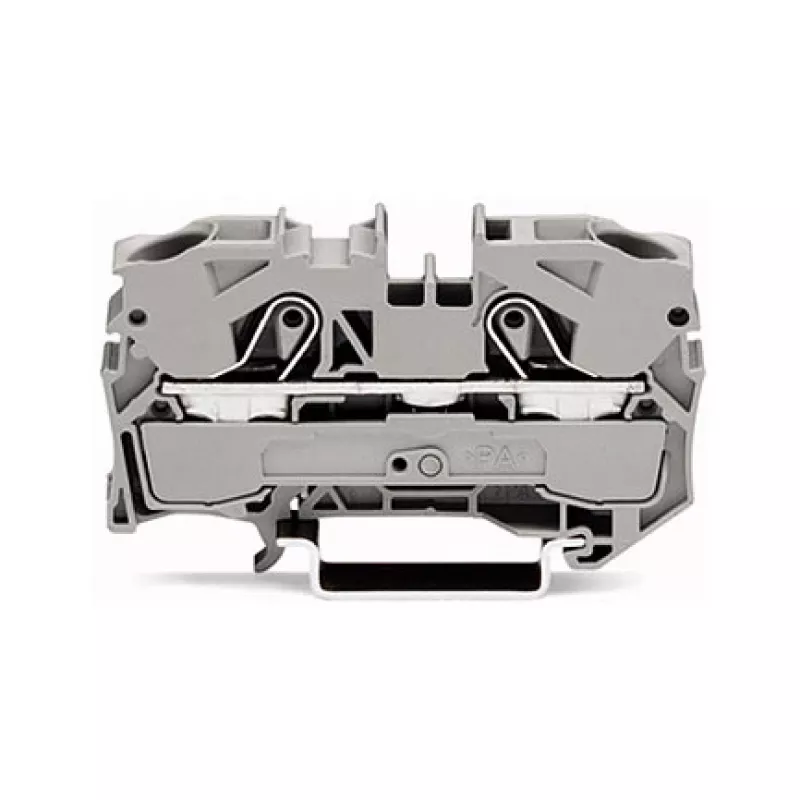

WAGO 2010-1201 borne de série de passagem, 10 mm², 800 V, cinzento

The WAGO 2010-1201 is a high-quality through junction terminal block designed for reliable and maintenance-free electrical connections. With a nominal cross-section of 10 mm² (AWG 8) and a rated voltage of 800 V, it is ideal for industrial and building installations. The Push-in CAGE CLAMP® connection technology ensures fast, tool-free wiring, saving time and effort.

Advantages

Push-in CAGE CLAMP® technology allows for direct insertion of solid conductors without tools. The compact design saves space on the DIN-rail, and the gray polyamide housing provides excellent insulation and durability. Rated current up to 57 A (IEC) and 65 A (UL) ensures high performance.

Suitable for

• Industrial control cabinets
• Building automation
• Power distribution systems
• Lighting and HVAC applications

Key specifications

• Connection technology: Push-in CAGE CLAMP®
• Number of conductors: 2
• Number of potentials: 1
• Rated voltage (IEC): 800 V
• Rated impulse voltage: 8 kV
• Rated current (IEC): 57 A
• Rated current (UL): 65 A
• Pollution degree: 3
• Overvoltage category: III
• Insulation material: Polyamide (PA)
• Color: Gray
• Mounting type: DIN-rail 35
• Stripping length: 18 - 20 mm
• Solid conductor size: 0.5 - 16 mm² (20 - 6 AWG)
• Stranded conductor size: 0.5 - 16 mm² (20 - 6 AWG)
• Fine-stranded conductor size: 0.5 - 10 mm² (20 - 8 AWG)
• Operating temperature: -35 ... +85 °C

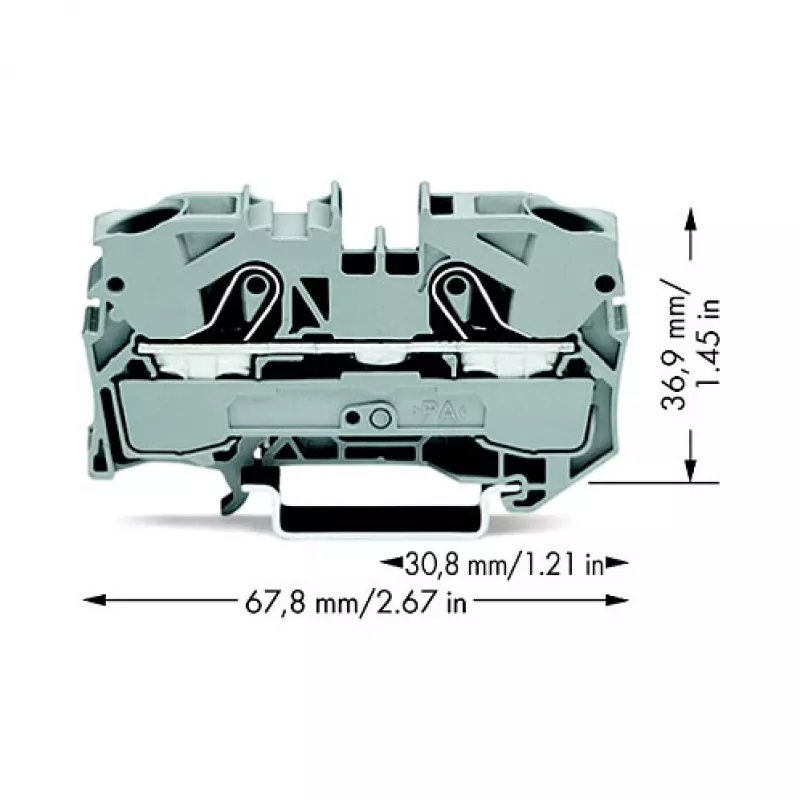

• Dimensions (W x H x D): 10 mm x 67.8 mm x 36.9 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and conductor preparation for reliable connections.
