Weidmüller terminal de passagem série W, azul, 10 mm², 57 A, ligação por parafuso, 50 unid.

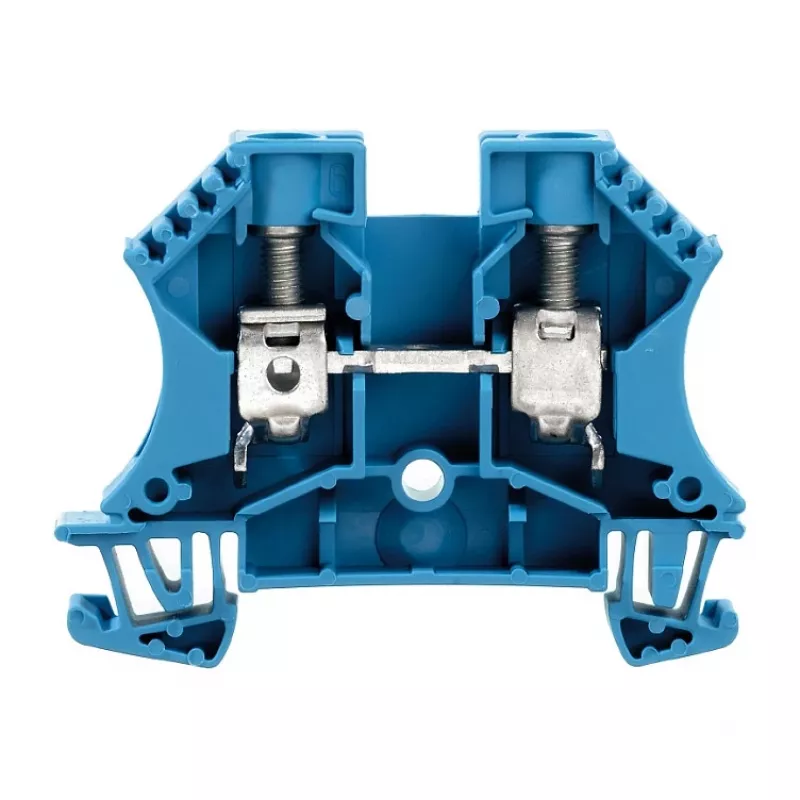

The Weidmüller W-Series feed-through terminal block (model 1020380000) is a high-quality, reliable connection solution for industrial wiring applications. Designed for DIN rail mounting (TS 35), this terminal block features a screw connection technology that ensures secure and durable wire termination. With a rated cross-section of 10 mm² and a rated current of 57 A, it is suitable for a wide range of power distribution and control circuits.

Advantages

This terminal block offers excellent electrical and mechanical performance. The Wemid insulation material provides high thermal resistance and flame retardancy (UL 94 V-0), ensuring safety in demanding environments. The blue colour coding allows for easy identification in complex wiring systems. The compact design saves space on the DIN rail while maintaining high current capacity.

Suitable for

• Industrial control panels
• Power distribution systems
• Automation and process control
• Building infrastructure wiring

Key specifications

• Product Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Rated Cross-Section (IEC): 10 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 57 A
• Colour: Blue
• Number of Potentials: 1
• Number of Connections: 2
• Mounting Type: DIN Rail (TS 35)
• Wire Size (Solid): 0.5 - 16 mm²
• Wire Size (Flexible): 0.5 - 10 mm²
• Wire Size (AWG): AWG 20 - AWG 6
• Stripping Length: 12 mm
• Tightening Torque: 1.2 - 2 Nm
• Insulation Material: Wemid
• Operating Temperature: -50 °C to +120 °C
• Pollution Degree: 3
• Flammability Rating (UL 94): V-0
• Series: W-Series
• Packaging Unit: 50 pieces

Recommendations

For optimal performance, use with appropriate screwdrivers and follow the recommended tightening torque. Ensure proper wire stripping length and secure connection to avoid overheating. This terminal block is ideal for new installations or retrofitting existing systems.
