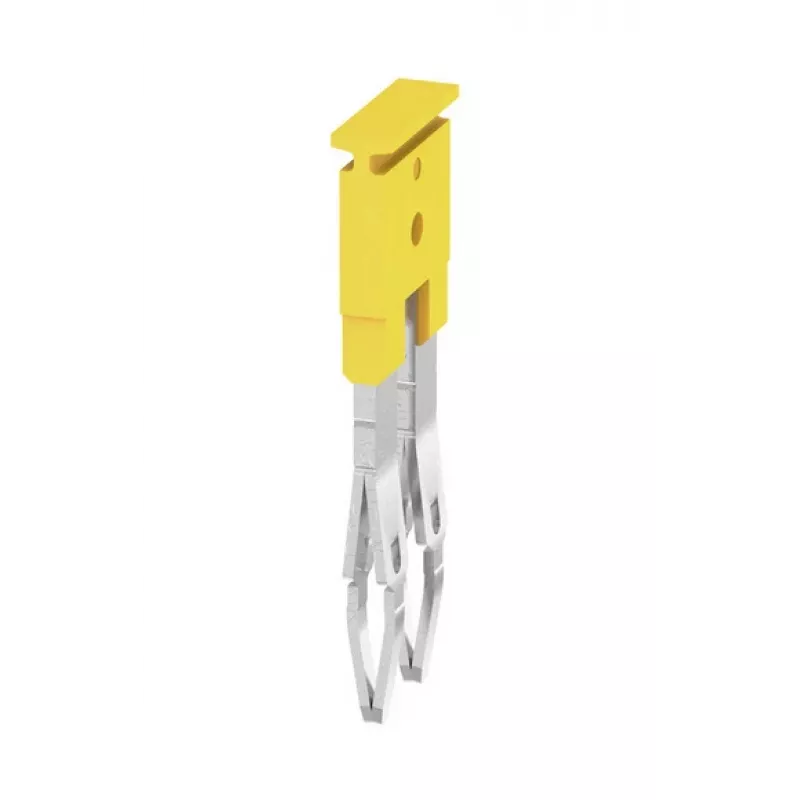

Weidmüller ZQV 2.5/2 Conector transversal, 2,5 mm², 2 polos, amarelo, 60 unid.

The Weidmüller ZQV 2.5/2 is a high-quality cross-connector (jumper) designed for bridging adjacent terminal blocks in control cabinets and industrial installations. With a nominal cross-section of 2.5 mm² and 2 poles, it ensures reliable electrical connections and simplifies wiring. Made from Wemid insulation material, it offers excellent thermal and mechanical properties, operating in temperatures from -60 °C to 130 °C. The yellow color provides easy identification, and the UL 94 V-0 flammability rating guarantees safety. Packaged in a set of 60 pieces, this cross-connector is ideal for use with W-series and Z-series terminal blocks.

Advantages

• Simplifies wiring by bridging adjacent terminals
• High temperature resistance (-60 to 130 °C)
• Self-extinguishing material (UL 94 V-0)
• Compact design with 5.0 mm pitch
• RoHS and REACH compliant

Suitable for

• Control cabinet wiring
• Industrial automation systems
• Power distribution
• Building infrastructure

Key specifications

• Product Type: Cross-connector / Jumper
• Number of Poles: 2
• Nominal Cross-Section: 2.5 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Insulation Material: Wemid
• Color: Yellow
• Operating Temperature Range: -60 to 130 °C
• Flammability Rating: UL 94 V-0
• Pitch / Spacing: 5.0 mm
• Mounting Type: Plug-in
• Compatible Terminal Block Series: W-series, Z-series (e.g., WDU 2.5, ZDU 2.5)
• Packaging Quantity: 60 pieces
• RoHS Compliant: Yes
• REACH Compliant: Yes

Recommendations

For optimal performance, use with Weidmüller WDU 2.5 or ZDU 2.5 terminal blocks. Ensure proper installation according to manufacturer guidelines.
