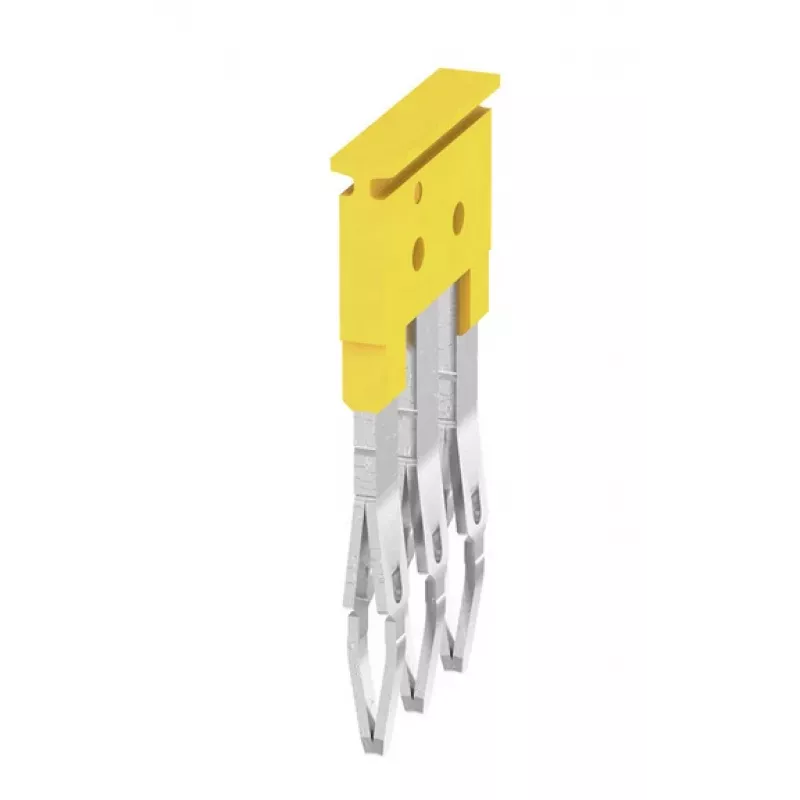

Weidmüller ZQV 2.5/3 Conector transversal, 3 polos, amarelo, 60 unid.

The Weidmüller ZQV 2.5/3 is a high-quality cross-connector (jumper) designed for use with Weidmüller W-series terminal blocks. It enables efficient and reliable electrical bridging of adjacent terminals, saving time and reducing wiring errors. This pack contains 60 pieces of yellow, 3-pole connectors, each with a 5 mm pitch and rated for 800 V and 24 A. The connector is made from Wemid insulation material, offering excellent thermal and mechanical properties, with an operating temperature range of -60 to 130 °C and a flammability rating of UL 94 V-0.

Advantages

Simplifies wiring by creating common connections between multiple terminals without additional jumpers. The plug-in design ensures quick installation and secure contact. RoHS compliant for environmental safety.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution applications
• Any installation using Weidmüller W-series terminal blocks

Key specifications

• Product Type: Cross-connector / Jumper
• Number of Poles: 3
• Pitch: 5 mm
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Insulation Material: Wemid
• Colour: Yellow
• Operating Temperature: -60 to 130 °C
• Flammability Rating: UL 94 V-0
• Cross-Section Compatibility: 2.5 mm²
• Quantity per Pack: 60 pieces

Recommendations

For optimal performance, use with Weidmüller W-series terminal blocks. Ensure proper insertion to maintain rated electrical specifications.
