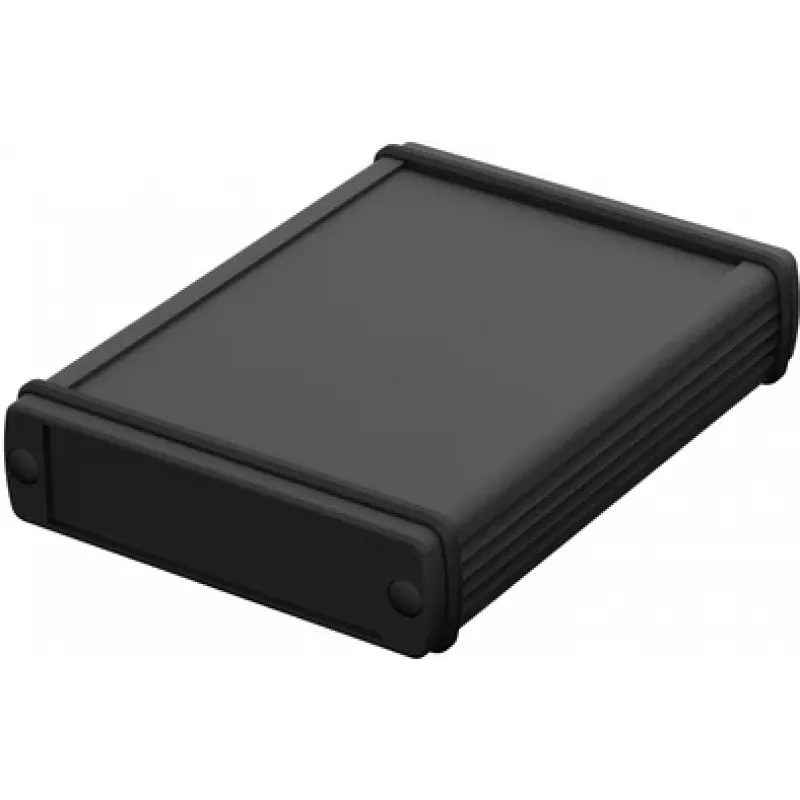

Bopla ABPH 820-100 Caixa universal de alumínio 100 x 82 x 22 mm, preto 84826100.H

The ABPH 820-100 stands out with its rugged die-cast aluminium body, offering a level of durability that plastic enclosures simply cannot match. Its compact 100 x 82 x 22 mm footprint makes it ideal for space-constrained industrial electronics, while the integrated PCB mounting bosses simplify assembly.

Highlights

• Die-cast aluminium construction with powder-coated black finish (RAL 9005)
• IP65 protection against dust and water jets
• Integrated PCB mounting bosses for secure board placement
• Neoprene gasket and stainless steel lid screws included

In daily use

Designed for measurement and control, automation, and other demanding environments, this enclosure provides reliable protection for sensitive electronics. The lid is secured with stainless steel screws, ensuring a tight seal even under vibration. With a wall thickness of 2.5 mm, it offers excellent mechanical strength.

Full specifications

• External dimensions: 100 mm (L) x 82 mm (W) x 22 mm (H)
• Material: Aluminium
• Colour: Black (RAL 9005)
• Protection class: IP65
• Surface finish: Powder-coated
• Gasket material: Neoprene
• Wall thickness: 2.5 mm
• Operating temperature range: -40°C to +100°C
• RoHS compliance: Yes

Final note

The ABPH 820-100 combines compact dimensions with robust protection, making it a dependable choice for industrial electronics projects.
