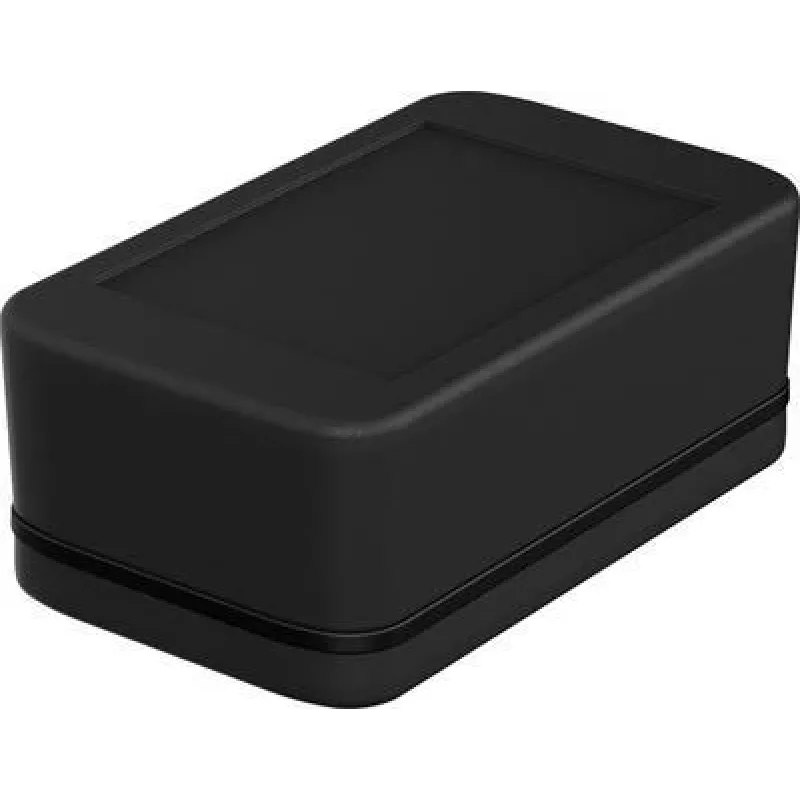

Bopla BL 704025 - 9005 BOLINK_SET Caixa universal, policarbonato, preta RAL 9005, 71,2 x 43,2 x 26 mm, IP65, IK07, UL94 V-0 16174505.HMT1

The Bopla BL 704025 - 9005 BOLINK_SET stands out with its robust polycarbonate construction and sleek jet black finish (RAL 9005), offering a durable housing for electronics in demanding environments. Its compact dimensions of 71.2 x 43.2 x 26 mm make it ideal for space-constrained applications while providing ample room for PCBs and components.

Highlights

• High-impact polycarbonate material with UV stabilization and halogen-free properties
• IP65 protection against dust and water jets, plus IK07 impact resistance
• Flammability rating UL 94 V-0 for enhanced fire safety
• Wide operating temperature range from -40°C to +80°C
• Secure lid fastening with stainless steel screws
• Internal mounting bosses for easy PCB installation and optional wall mounting

In daily use

This universal enclosure is well-suited for industrial electronics, IoT devices, and sensor housings. The black RAL 9005 color provides a professional appearance, and the polycarbonate material ensures long-term durability even in harsh conditions. The stainless steel screws allow repeated opening and closing without degradation, facilitating maintenance and upgrades.

Full specifications

• External dimensions: 71.2 mm length, 43.2 mm width, 26 mm height
• Material: Polycarbonate
• Color: Black (RAL 9005)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature: -40°C to +80°C
• Lid fastening: Stainless steel screws
• Mounting: Internal bosses for PCBs, wall mounting possible
• Material properties: Halogen-free, UV-stabilized
• Series: BOLINK_SET
• Quantity per pack: 1 piece

Final note

Engineered for reliability, the Bopla BOLINK_SET enclosure combines high protection ratings with a sleek black design, making it a versatile choice for a wide range of electronic applications.
