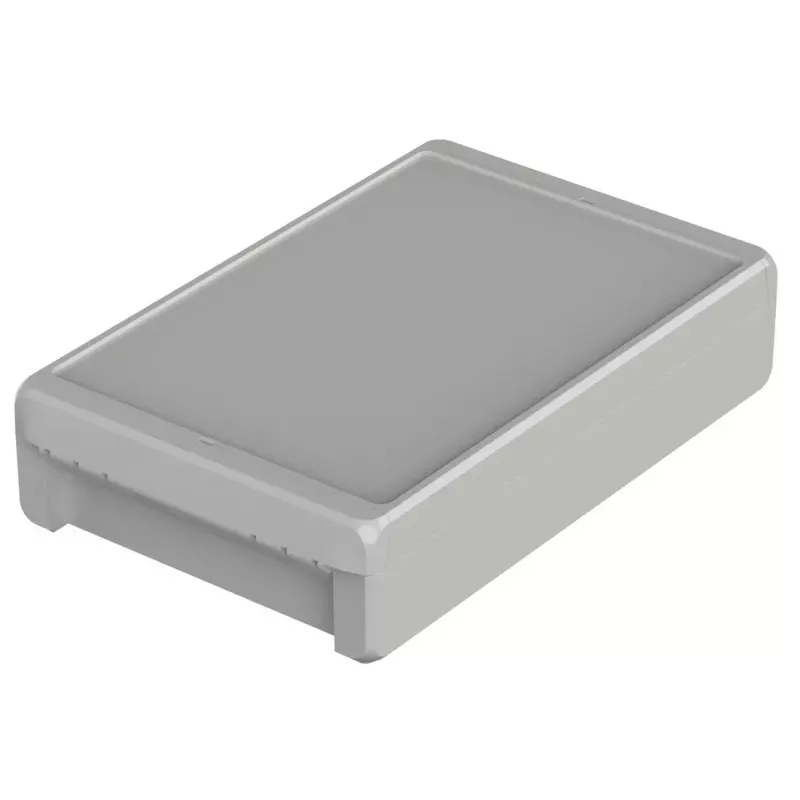

Caixa de parede BOPLA CombiNorm-Connect, ABS, cinzento-claro RAL 7035, 170 x 271 x 60 mm, IP65 96036325

Securely house and protect electrical and electronic components in demanding environments with this robust wall-mount enclosure from BOPLA's CombiNorm-Connect series. Its IP65 rating ensures dust-tight protection and resistance to water jets, making it ideal for industrial and outdoor applications.

Who is it for

Designed for system integrators, panel builders, and OEMs who need a reliable housing for PCBs, DIN rail components, or custom electronics in industrial, automation, or harsh environment settings.

Main features

• Durable ABS construction with UL 94 V-0 flammability rating for enhanced safety.
• Light grey colour (RAL 7035) blends seamlessly into industrial environments.
• External dimensions: 170 mm width x 271 mm length x 60 mm height, providing ample space for components.
• IP65 protection: dust-tight and protected against water jets.
• Integrated mounting bosses for PCBs and DIN rails simplify installation.
• Screw-on lid with polyurethane (PUR) gasket ensures a secure seal.
• Impact resistance rated IK07 for durability against mechanical stress.
• Wide operating temperature range from -40°C to +80°C for versatile use.

Specifications

• Brand: BOPLA
• Model: 96036325
• MPN: 96036325
• EAN: 4049505038329
• Product Type: Wall-Mount Enclosure
• Series: CombiNorm-Connect
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External Length: 271 mm
• External Width: 170 mm
• External Height: 60 mm
• Protection Class: IP65
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -40 to +80 °C
• Mounting Type: Wall Mounting
• Lid Fastening: Screw-on
• Gasket Material: Polyurethane (PUR)
• Internal Mounting Features: Mounting bosses for PCBs/DIN rails
• Impact Resistance: IK07

Tips

When selecting an enclosure, consider the internal space required for your components and any additional accessories like cable glands or mounting plates. The IP65 rating makes this enclosure suitable for outdoor use, but ensure proper sealing of cable entries to maintain protection.
