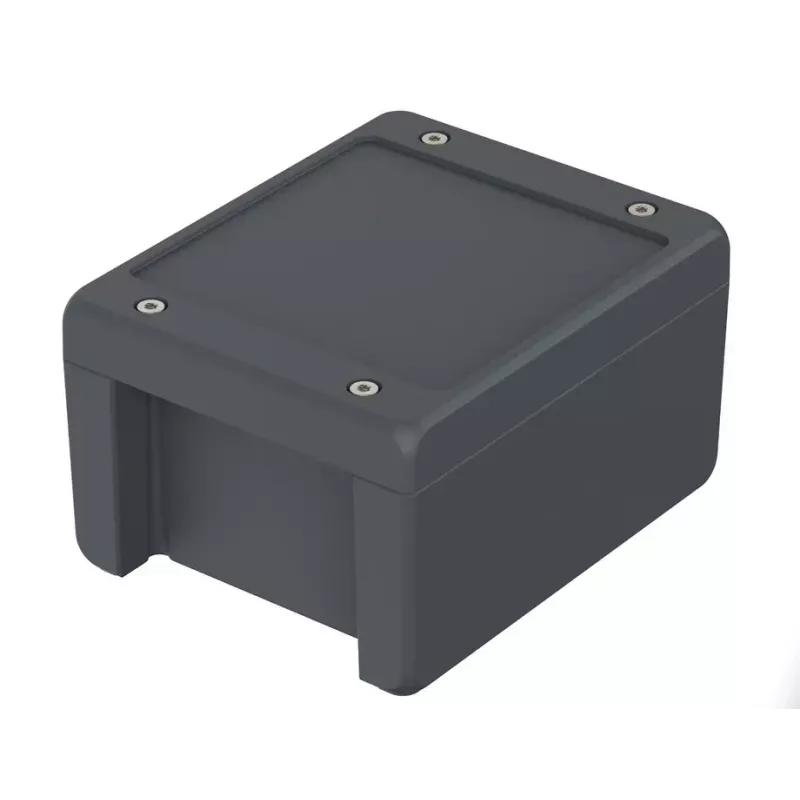

Bopla Bocube Alu caixa universal 159 x 128 x 90 mm cinzento grafite RAL 7024 IP67 00163234

Protect sensitive electronics in demanding industrial environments with the Bopla Bocube Alu universal enclosure. This robust aluminium housing offers a secure, dust-tight and waterproof solution for mounting PCBs and components, ensuring reliable operation even under harsh conditions.

Who is it for

Engineers, system integrators, and electronics manufacturers who need a durable, high-quality enclosure for industrial control systems, IoT devices, or custom electronic assemblies.

Main features

• Precision-machined aluminium body with graphite grey powder coating (RAL 7024)
• IP67 protection against dust and temporary immersion
• IK08 impact resistance for mechanical robustness
• Screw-on lid with silicone gasket for reliable sealing
• Internal mounting bosses for easy PCB installation
• Wide operating temperature range from -40°C to +80°C

Specifications

• External dimensions: 159 x 128 x 90 mm (L x W x H)
• Material: Aluminium
• Colour: Graphite grey (RAL 7024)
• Protection class: IP67
• Impact resistance: IK08
• Lid fastening: Screw-on
• Gasket material: Silicone
• Surface finish: Powder-coated
• Operating temperature: -40 to +80 °C
• Number of components: 2 (base + lid)
• Included accessories: Lid screws, gasket

Tips

For outdoor or washdown applications, ensure all cable glands and connectors are properly sealed to maintain the IP67 rating. The aluminium construction also provides good thermal dissipation for heat-generating electronics.
