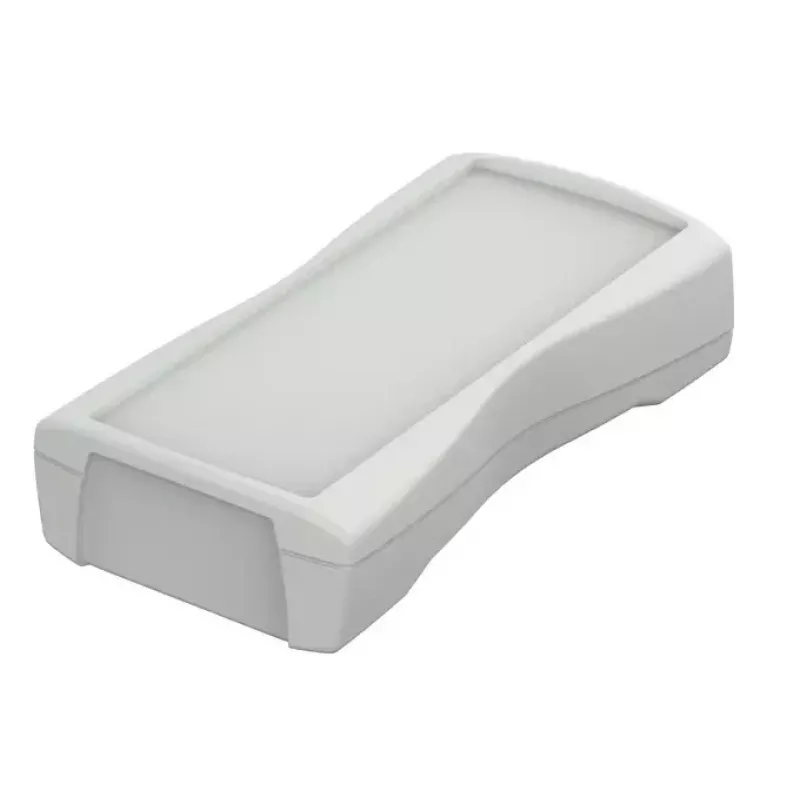

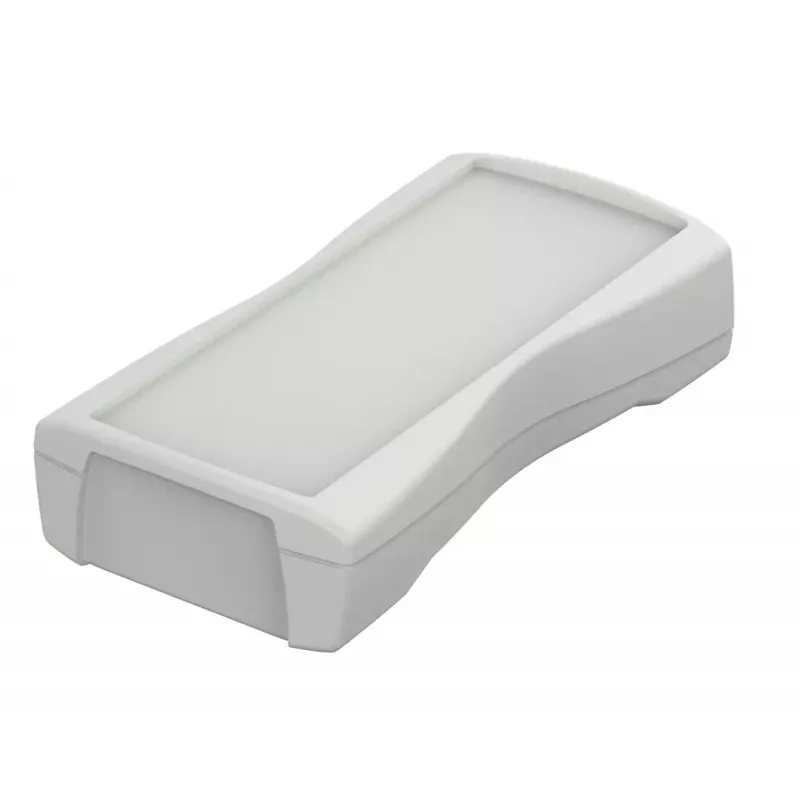

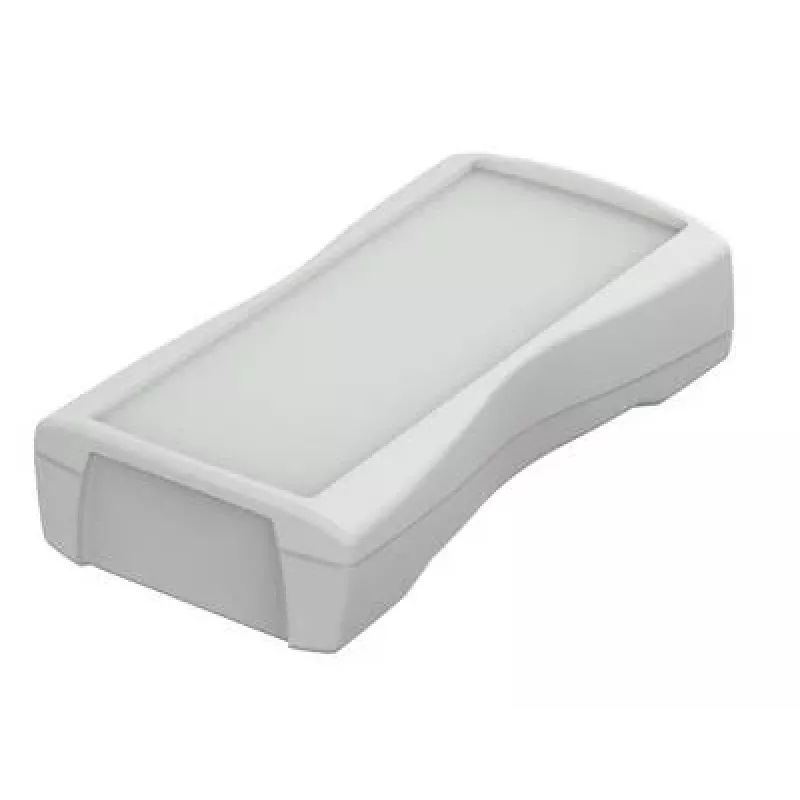

Bopla BS 500 F-7035 caixa de mão, cinzento claro (RAL 7035), ABS, 140,3 x 72,9 x 31,3 mm, IP40 82500135

The Bopla BS 500 F-7035 is a robust handheld enclosure crafted from ABS in light grey (RAL 7035), offering a compact yet spacious housing for electronic devices. With external dimensions of 140.3 x 72.9 x 31.3 mm, it accommodates PCBs and components for control units, measurement equipment, and handheld devices.

Overview

This enclosure belongs to the BS 500 series and provides a reliable solution for prototyping and small-scale production. The ABS material ensures durability and impact resistance, while the light grey color offers a professional appearance suitable for various applications.

What stands out

• IP40 protection against solid objects larger than 1 mm
• UL 94 HB flammability rating for safety
• Recessed lid area for membrane keypads or displays
• Internal screw bosses for secure PCB mounting
• Operating temperature range from -20 to +80 °C

Technical details

• Material: ABS (Acrylonitrile Butadiene Styrene)
• External dimensions: 140.3 mm (L) x 72.9 mm (W) x 31.3 mm (H)
• Lid fastening: 4 screws
• Color: Light grey (RAL 7035)
• Series: BS 500

Our verdict

A versatile and sturdy enclosure for handheld electronics, offering a balance of protection, customization options, and professional aesthetics.
