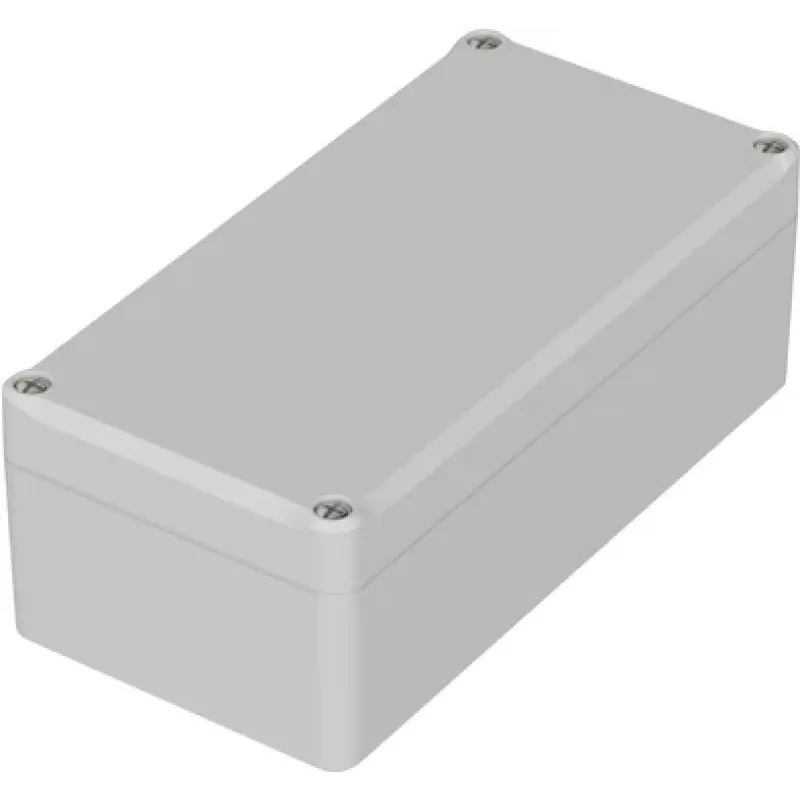

Bopla caixa universal 160 x 80 x 57 mm policarbonato cinzento claro (RAL 7035) EM 220 62220000

This Bopla universal enclosure is used by electrical installers and panel builders to house DIN rail components, terminal blocks, and small controllers in industrial and outdoor applications. The light grey (RAL 7035) polycarbonate body measures 160 x 80 x 57 mm and provides a clean, impact-resistant housing for electronics.

Key specifications

• External dimensions: 160 mm length, 80 mm width, 57 mm height
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Lid fastening: 4 stainless steel screws
• Gasket material: Polyurethane (PUR)
• Operating temperature range: -40 to +80 °C
• Flammability rating: UL 94 V-0
• Mounting options: Internal mounting bosses for DIN rail or mounting plate
• UV resistant
• Halogen-free

Why choose it

The polycarbonate construction offers high impact strength and UV stability, making it suitable for both indoor and outdoor use. The IP65 seal protects against dust and water jets, while the stainless steel lid screws ensure a secure closure. Internal bosses allow flexible mounting of DIN rails or plates.

Ideal use cases

• Industrial control boxes
• Outdoor sensor housings
• Junction boxes in harsh environments
• DIN rail electronics enclosures

Good to know

The enclosure is halogen-free and meets UL 94 V-0 flammability requirements. The light grey RAL 7035 colour blends well in industrial settings.
