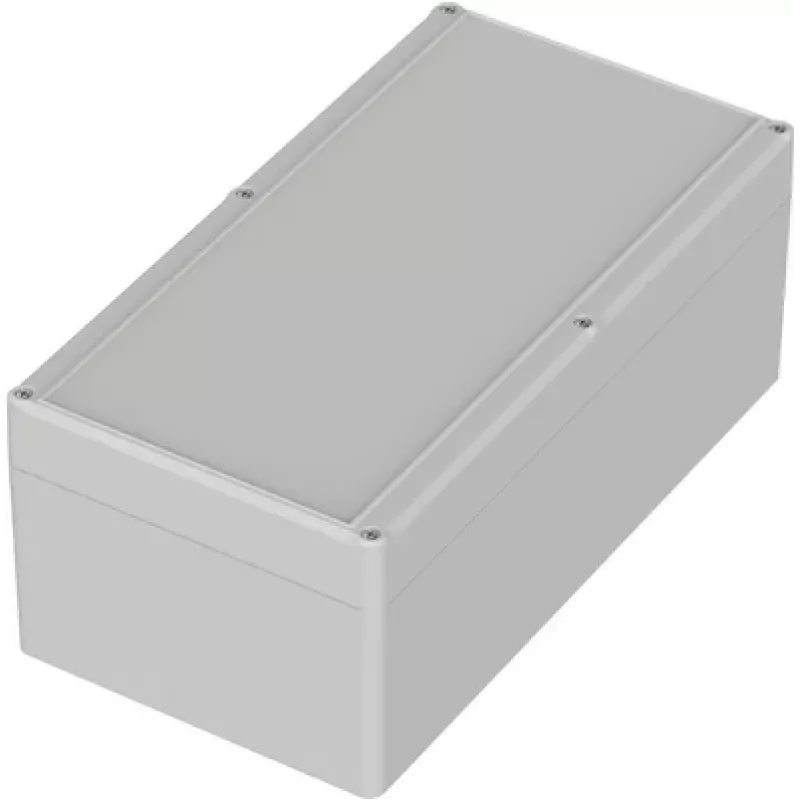

BOPLA Caixa universal ABS cinzento-claro 300 x 160 x 120 ET 247 F 63247400

The BOPLA ET 247 F stands out as a robust universal enclosure crafted from light grey ABS, offering a spacious 300 x 160 x 120 mm interior for versatile electronics housing. Its solid lid with six stainless steel screws and PU foam gasket provide reliable sealing, making it a practical choice for industrial and outdoor applications.

Highlights

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 300 mm (L) x 160 mm (W) x 120 mm (H)
• Protection class: IP65
• Impact resistance: IK07
• Temperature range: -40 °C to +80 °C
• Lid fastening: 6 stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Flammability rating: UL 94 HB
• Mounting: Internal bosses for PCBs/mounting plates, wall mounting possible
• Halogen-free: Yes
• RoHS compliant: Yes

In daily use

This enclosure accommodates a wide range of electronic components with internal mounting bosses for secure PCB or plate installation. The IP65 rating ensures protection against dust and water jets, while the IK07 impact resistance withstands mechanical stress. The light grey ABS body is halogen-free and RoHS compliant, suitable for environmentally conscious projects.

Full specifications

• Enclosure type: Universal enclosure
• Lid type: Solid lid
• Number of lid screws: 6
• External length: 300 mm
• External width: 160 mm
• External height: 120 mm
• Material: ABS
• Colour: Light grey
• Protection class: IP65
• Impact resistance: IK07
• Temperature range: -40 °C to +80 °C
• Gasket material: Polyurethane (PU) foam
• Flammability rating: UL 94 HB
• Halogen-free: Yes
• RoHS compliant: Yes

Final note

The BOPLA ET 247 F combines a generous size with durable ABS construction, making it a reliable housing for demanding environments.
