BOPLA Caixa universal de alumínio cinzento prateado (RAL 7001) 75 x 80 x 57 A 105 01105000.MT1

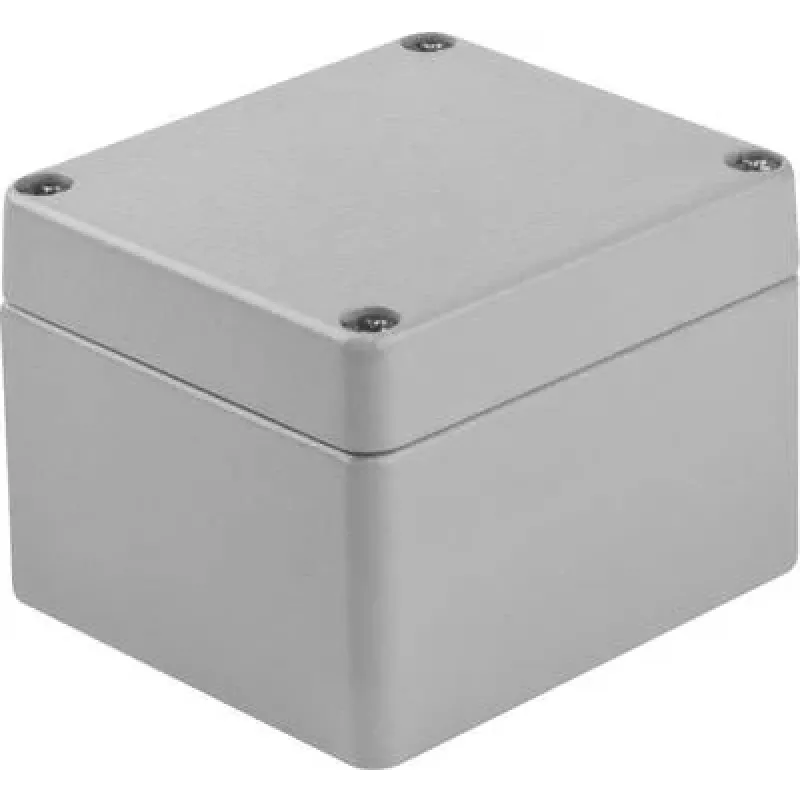

Protecting sensitive electronics in industrial environments requires a housing that can withstand harsh conditions while providing reliable access for maintenance. The BOPLA Universal Enclosure in silver grey aluminium offers a robust solution for control systems, measurement technology, and other industrial applications.

Who is it for

This enclosure is intended for engineers and system integrators who need a durable, IP66-rated housing for electronics that may be exposed to dust, water, or mechanical impact. Its compact dimensions and integrated mounting bosses make it suitable for PCBs and DIN rail components.

Main features

• Aluminium construction with powder-coated silver grey finish (RAL 7001)
• External dimensions: 75 x 80 x 57 mm (W x H x D)
• Protection class IP66 and impact resistance IK08
• Screw-on lid with stainless steel screws and silicone gasket
• Operating temperature range: -40°C to +100°C
• Wall thickness: 2.5 mm
• Integrated mounting bosses for PCBs/DIN rails

Specifications

• Material: Aluminium
• Colour: Silver Grey (RAL 7001)
• External dimensions (W x H x D): 75 x 80 x 57 mm
• Protection class: IP66
• Impact resistance: IK08
• Lid fastening: Screw-on lid
• Lid screws material: Stainless steel
• Gasket material: Silicone
• Operating temperature range: -40°C to +100°C
• Surface finish: Powder-coated
• Wall thickness: 2.5 mm
• Internal mounting: Integrated mounting bosses for PCBs/DIN rails
• Weight: 0.25 kg

Tips

When selecting a location for this enclosure, ensure that the lid screws are accessible for future maintenance. The silicone gasket should be inspected periodically to maintain the IP66 seal, especially in environments with wide temperature fluctuations.
