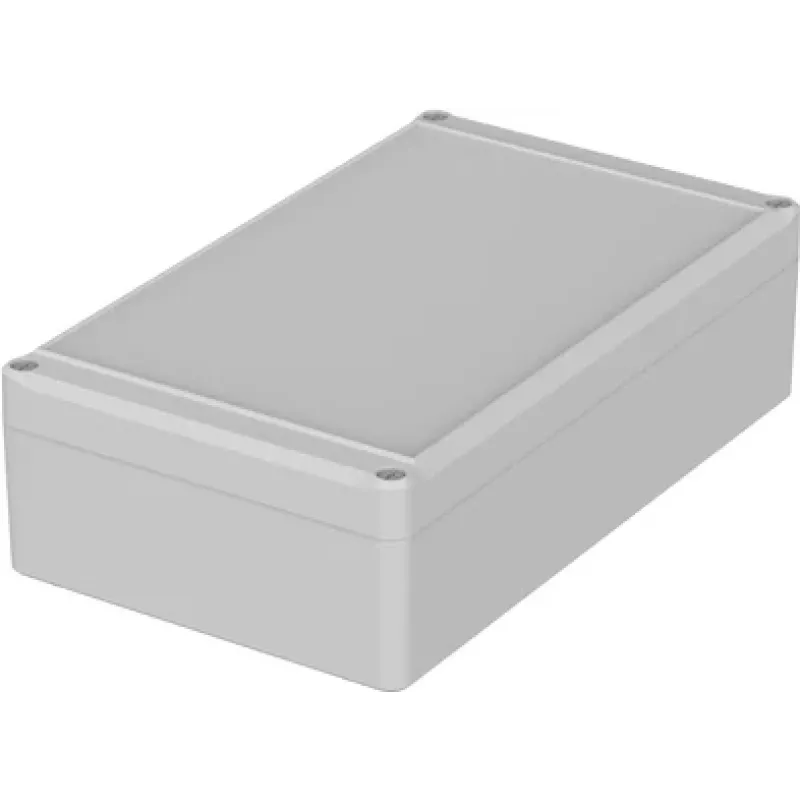

BOPLA Caixa universal policarbonato cinzento-claro 200 x 120 x 57 EM 214 F 62214400

Protecting sensitive electronics in harsh or demanding environments requires a robust housing that seals out dust and moisture while withstanding mechanical impact. The BOPLA EM 214 F universal enclosure provides a dependable solution with its polycarbonate construction and IP65-rated sealing, ensuring your components remain safe and operational.

Who is it for

This enclosure is ideal for electrical engineers, system integrators, and equipment manufacturers who need a durable, medium-sized housing for control systems, sensors, or connection boxes in industrial, outdoor, or high-humidity settings.

Main features

• Made from light grey polycarbonate (RAL 7035) for high impact resistance (IK07) and good UV stability.
• External dimensions of 200 x 120 x 57 mm with an internal usable depth of 50 mm, offering ample space for PCBs and wiring.
• IP65 protection class ensures complete protection against dust and low-pressure water jets from any direction.
• Lid is secured with four stainless steel screws and includes a polyurethane gasket for a reliable seal.
• Flammability rating UL 94 V-2 and halogen-free material for enhanced safety.
• Operating temperature range from -40°C to +80°C, suitable for extreme conditions.
• Wall mounting and internal mounting bosses provide flexible installation options.

Specifications

• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 200 x 120 x 57 mm
• Internal usable depth: 50 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature range: -40°C to +80°C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU)
• Mounting options: Wall mounting, internal mounting bosses
• UV resistance: Good
• Halogen-free: Yes
• RoHS compliant: Yes
• Lid type: Opaque

Tips

For outdoor installations, consider additional protection against direct sunlight or use a UV-stable cable gland to maintain the enclosure's integrity over time. Ensure the mounting surface is flat and clean to achieve the full IP65 seal.
