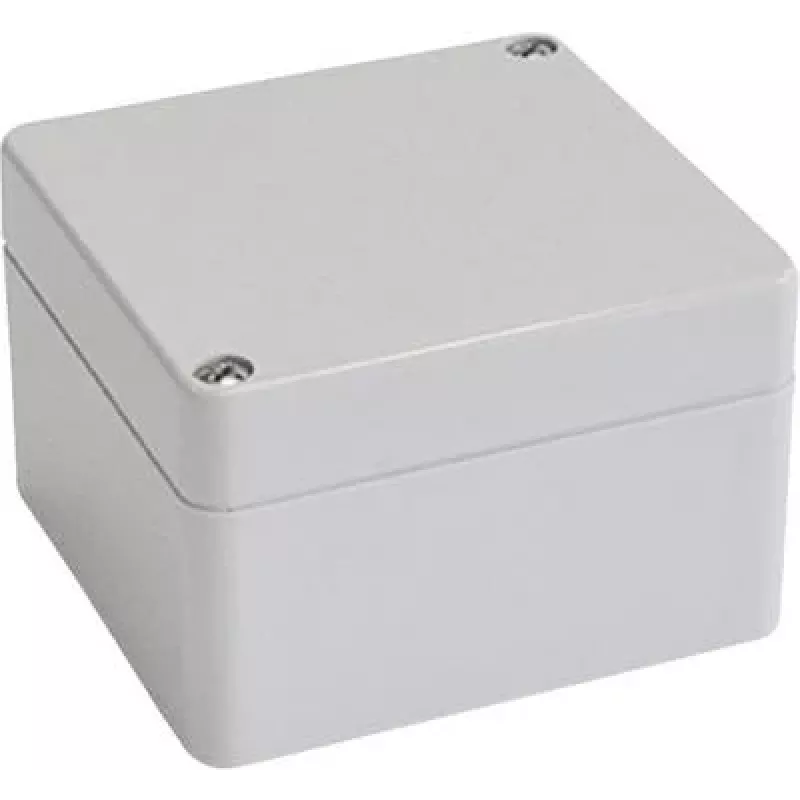

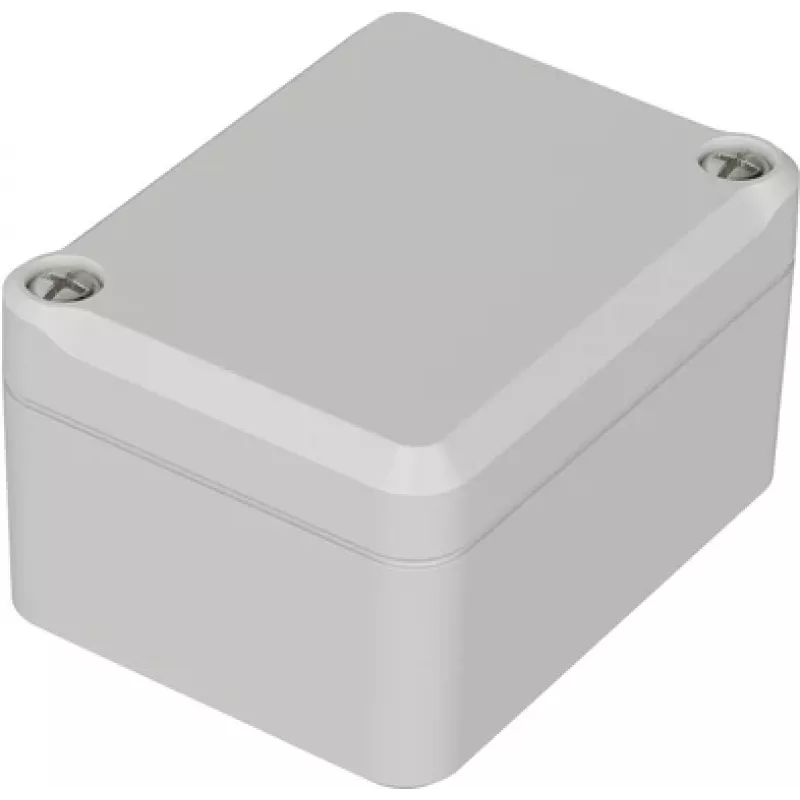

Bopla EUROMAS T 206 Caixa universal 65 x 50 x 37 mm ABS Cinzento-claro IP65 63206000

For engineers and technicians building industrial control units, sensor housings, or interface boxes, the Bopla EUROMAS T 206 provides a robust, light grey ABS enclosure with a screwed lid and PU foam seal, ensuring reliable protection for electronic components in demanding environments.

Key specifications

• External dimensions: 65 mm (L) x 50 mm (W) x 37 mm (H)
• Material: ABS (Acrylonitrile Butadiene Styrene), light grey (RAL 7035)
• Protection class: IP65 (DIN EN 60529)
• Temperature range: -40 to +80 °C
• Flammability rating: UL 94 HB
• Lid fastening: screwed, with stainless steel (V2A) screws
• Seal material: polyurethane (PU) foam
• Impact resistance: IK07 (EN 62262)
• Glow-wire test: 650 °C (EN 60695-2-11)
• Internal mounting bosses for PCBs or mounting plates
• Wall mountable (with accessories)

Why choose it

The EUROMAS T series is known for its durable construction and ease of assembly. The ABS material offers good impact resistance and a professional light grey finish, while the IP65 rating ensures dust-tight and water-jet protection. The included PU foam seal and stainless steel screws provide a secure closure, making it suitable for both indoor and outdoor applications.

Ideal use cases

• Industrial control units and interface boxes
• Sensor and measurement device housings
• Electrical junction boxes in machinery
• Custom electronics enclosures for prototyping

Good to know

The enclosure is supplied as a single piece. Mounting bosses inside allow easy installation of PCBs or mounting plates. For wall mounting, appropriate accessories are available separately.
