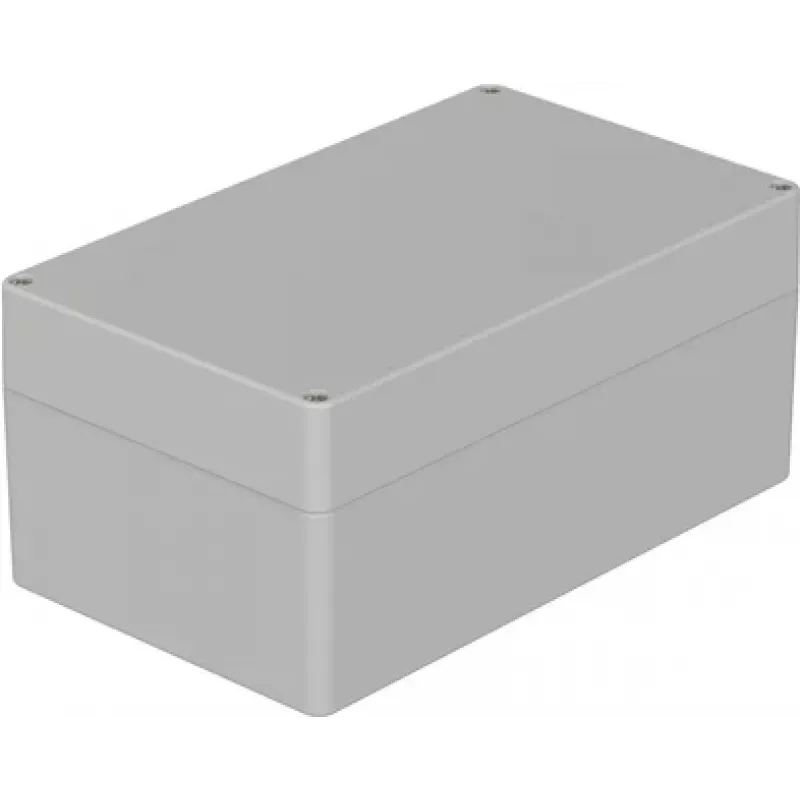

Bopla EUROMAS T 237 caixa universal 200 x 120 x 90 mm ABS cinzento-claro IP65 03237000

IP65-rated protection in a light grey ABS enclosure measuring 200 x 120 x 90 mm. The EUROMAS T 237 offers a dust-tight, water-jet-resistant housing for electronics and electrical components in industrial environments.

Overview

The Bopla EUROMAS T 237 is a universal enclosure made of ABS (Acrylonitrile Butadiene Styrene) in light grey (RAL 7035). Its external dimensions are 200 mm in length, 120 mm in width, and 90 mm in height. The enclosure is rated IP65, meaning it is completely dust-tight and protected against water jets from any direction. It also meets IK07 impact resistance, providing a moderate level of mechanical protection. The operating temperature range is -40 to +80 °C, making it suitable for harsh environments. The material has a flammability rating of UL 94 HB. The lid is recessed and includes an integrated polyurethane gasket, secured with stainless steel (V2A) screws. Internal mounting bosses are provided for installing PCBs or components. The product is RoHS and REACH compliant.

What stands out

• IP65 dust-tight and water-jet protection
• Light grey ABS housing with UL 94 HB flammability rating
• Wide operating temperature range: -40 to +80 °C
• Recessed lid with integrated PUR gasket and stainless steel screws
• Internal mounting bosses for easy component installation

Technical details

• External dimensions: 200 x 120 x 90 mm
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40 to +80 °C
• Flammability rating: UL 94 HB
• Lid fastening: Stainless steel screws (V2A)
• Gasket material: Polyurethane (PUR)
• Mounting: Internal bosses for PCBs/components
• RoHS compliant, REACH compliant

Our verdict

A robust and versatile enclosure for industrial electronics, offering reliable protection against dust and water jets with a wide temperature tolerance.
