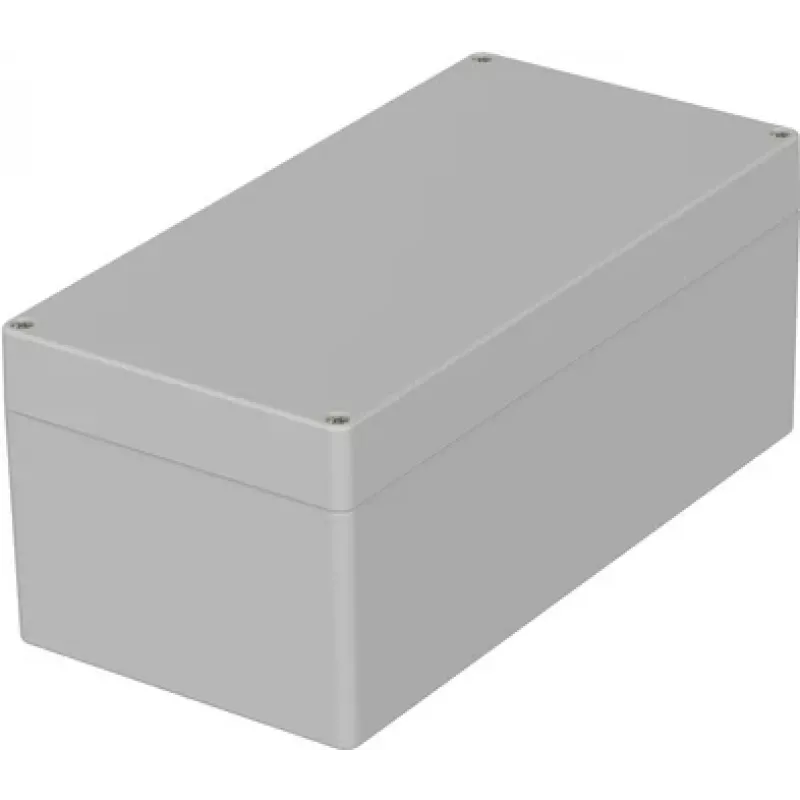

Bopla EUROMAS T 242 Caixa universal 240 x 120 x 100 mm ABS cinzento-claro IP65 03242000

With an IP65 protection rating and impact resistance of IK07, the Bopla EUROMAS T 242 universal enclosure is built to shield sensitive electronics in demanding industrial environments. Its light grey ABS body measures 240 x 120 x 100 mm, offering a spacious interior for DIN rail components, terminal blocks, or custom PCBs.

Overview

The EUROMAS T series combines robust construction with easy access. The enclosure is made from UV-stabilised ABS (UL 94 V-0) and features a polyurethane gasket that ensures a reliable seal against dust and water jets. Four captive stainless steel lid screws provide quick, tool-friendly opening without losing fasteners.

What stands out

• IP65 protection: dust-tight and resistant to low-pressure water jets from any direction.
• Impact resistance IK07: withstands mechanical stress up to 2 joules.
• Wide operating temperature range: -40 °C to +80 °C, suitable for outdoor or cold storage applications.
• Integrated mounting bosses for internal component assembly and wall-mounting options.
• Halogen-free and RoHS compliant, meeting modern environmental standards.

Technical details

• External dimensions: 240 mm (L) x 120 mm (W) x 100 mm (H)
• Material: ABS (Acrylonitrile Butadiene Styrene), light grey (RAL 7035)
• Lid screws: 4x stainless steel M4, captive
• Gasket: polyurethane (PUR)
• Flammability rating: UL 94 V-0
• Certifications: RoHS compliant, halogen-free

Our verdict

A versatile and durable enclosure for control systems, sensor housings, or junction boxes. The EUROMAS T 242 delivers reliable protection in a compact, easy-to-mount format.
