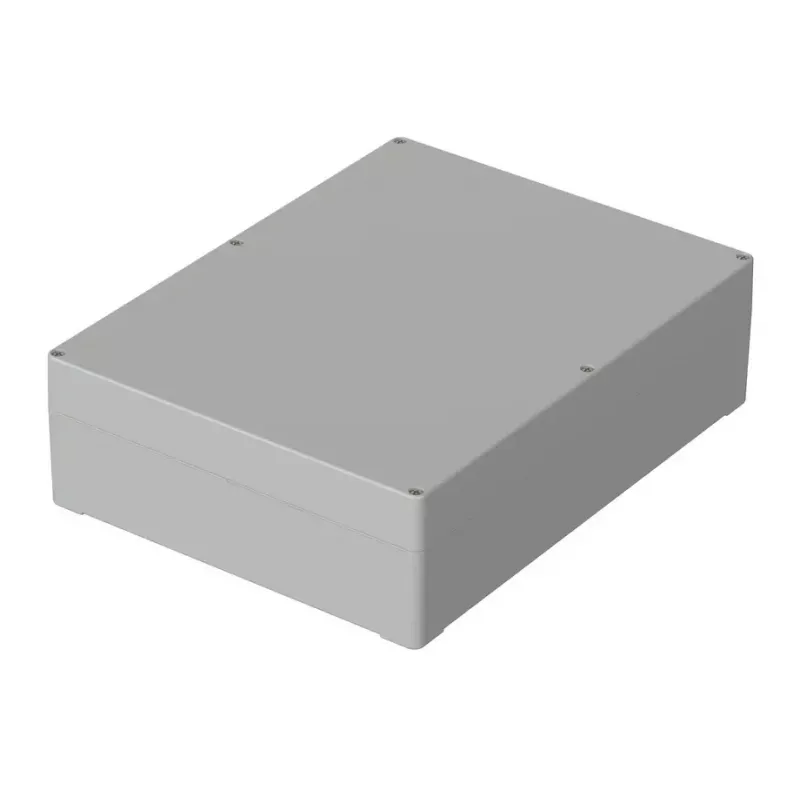

Bopla EUROMAS T 253 Caixa universal 300 x 230 x 85 mm ABS cinzento-claro 03253000

With an impact resistance of IK07 and a wide operating temperature range from -40 °C to +80 °C, this Bopla EUROMAS T 253 universal enclosure is built for demanding environments. The robust ABS housing in light grey (RAL 7035) offers reliable protection for your electronics.

Overview

The Bopla EUROMAS T 253 is a universal enclosure with external dimensions of 300 x 230 x 85 mm. It is made from ABS (Acrylonitrile Butadiene Styrene) and has a screw-on lid secured with four stainless steel screws. A polyurethane (PUR) gasket ensures a tight seal, and internal mounting bosses provide convenient installation options. The enclosure is halogen-free and RoHS compliant.

What stands out

• High impact resistance: IK07 per EN 62262
• Wide temperature range: -40 °C to +80 °C
• Durable ABS material with light grey finish
• Secure screw-on lid with stainless steel screws
• Polyurethane gasket for reliable sealing
• Internal mounting bosses for easy component installation

Technical details

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Color: Light Grey (RAL 7035)
• External dimensions (L x W x H): 300 x 230 x 85 mm
• Lid fastening: 4 stainless steel screws (1.4567)
• Gasket material: Polyurethane (PUR)
• Flammability rating: UL 94 HB
• Halogen-free: Yes
• RoHS compliant: Yes

Our verdict

A robust and versatile enclosure for industrial and outdoor applications, offering excellent impact resistance and a wide temperature range.
