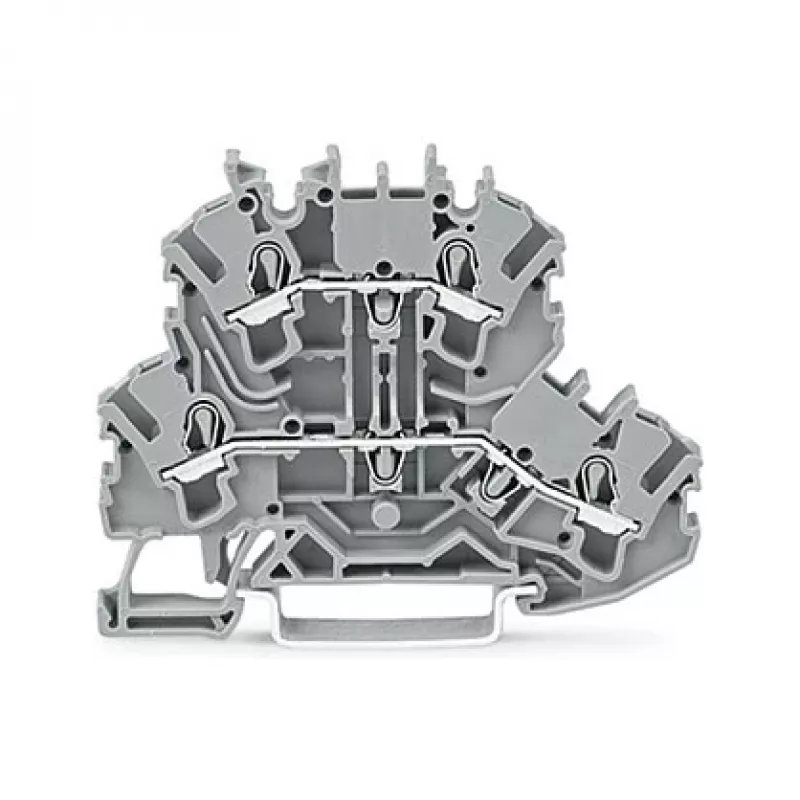

Borne de passagem de 2 condutores WAGO 2002-2201 TOPJOB S, 2,5 mm², 500 V, cinzento

The WAGO 2002-2201 is a high-quality 2-conductor through terminal block from the TOPJOB S series, featuring the reliable CAGE CLAMP® connection technology. Designed for DIN-rail mounting, this compact terminal block offers a nominal cross-section of 2.5 mm² and a rated voltage of 500 V, making it ideal for a wide range of industrial and building automation applications.

Advantages

Thanks to the CAGE CLAMP® spring pressure connection technology, the WAGO 2002-2201 ensures fast, vibration-proof, and maintenance-free wiring. The push-in termination allows for direct insertion of solid conductors, saving time during installation. Its compact design saves space on the DIN rail, and the gray housing provides clear visual identification.

Suitable for

• Industrial control cabinets
• Building automation systems
• Distribution boards
• Lighting and power distribution
• Any application requiring reliable and space-saving conductor termination

Key specifications

• Series: TOPJOB S
• Connection technology: CAGE CLAMP®
• Number of conductors: 2
• Nominal cross-section: 2.5 mm²
• Rated voltage (EN): 500 V
• Rated current (EN): 24 A
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Overvoltage category: III
• Conductor size (solid): 0.25 - 4 mm² / 22 - 12 AWG
• Conductor size (fine-stranded): 0.25 - 2.5 mm² / 22 - 14 AWG
• Stripped length: 9 - 11 mm / 0.35 - 0.43 inch
• Mounting type: DIN-rail 35 x 15, 35 x 7.5
• Height from upper edge of DIN-rail (35x7.5): 40.4 mm
• Height from upper edge of DIN-rail (35x15): 32.9 mm
• Number of potentials: 1
• Number of connection points: 2
• Color: Gray
• Dimensions (WxHxD): 5.2 mm x 69.7 mm x 51.7 mm

Recommendations

For optimal performance, use WAGO ferrule crimping tools and pre-stripped conductors. Ensure the DIN rail is properly grounded. This terminal block is compatible with WAGO marking systems for clear identification.
