Bundle de ecrã Bopla BoPad Raspberry Pi 5 B 8GB 4 x 2,4 GHz 4064161328188

Industrial engineers and embedded developers building HMI panels or control interfaces can use the Bopla BoPad Display Bundle to integrate a Raspberry Pi 5 Model B with an 8GB RAM, a 5-inch capacitive touch display, and a protective ABS enclosure. The bundle combines the quad-core Broadcom BCM2712 processor running at 2.4 GHz with dual-band Wi-Fi 5, Bluetooth 5.0 BLE, and Gigabit Ethernet for reliable connectivity in automation and IoT applications.

Key specifications

• Processor: Broadcom BCM2712, quad-core Cortex-A76 at 2.4 GHz
• RAM: 8 GB LPDDR4X SDRAM
• GPU: VideoCore VII
• Display: 5-inch capacitive touch, 800 x 480 pixels
• Enclosure: Bopla BoPad series, ABS plastic, black, IP40
• Connectivity: Dual-band Wi-Fi 5 (802.11ac), Bluetooth 5.0 BLE, Gigabit Ethernet
• Ports: 2x USB 3.0, 2x USB 2.0, 2x micro-HDMI (4Kp60), PCIe 2.0 x1, 2x MIPI DSI/CSI, 40-pin GPIO
• Power: 5V DC via USB-C (5A recommended)

Why choose it

The BoPad bundle offers a complete solution for building a compact HMI or embedded system without sourcing separate components. The 8GB RAM ensures smooth multitasking, while the touch display provides direct interaction. The ABS enclosure protects the electronics in industrial environments, and the Raspberry Pi 5's performance supports demanding applications.

Ideal use cases

• Industrial human-machine interfaces (HMI)
• Embedded control systems
• IoT gateways and edge devices
• Prototyping and development for Raspberry Pi projects

Good to know

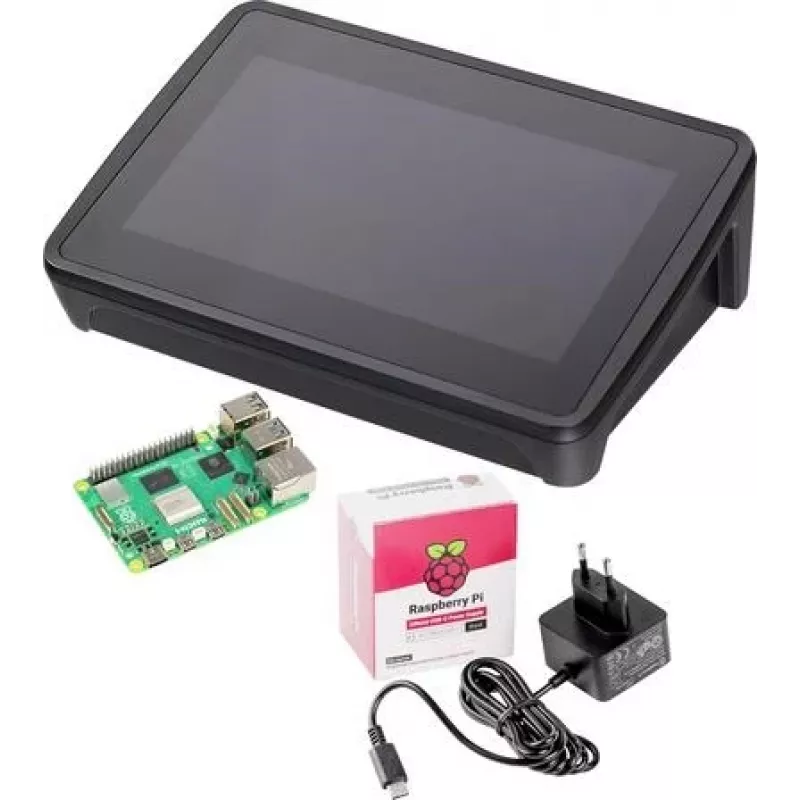

The bundle includes the Raspberry Pi 5 Model B, the BoPad enclosure, and the 5-inch touch display. The enclosure provides IP40 protection against solid objects larger than 1mm. A 5V/5A USB-C power supply is recommended for full performance.
