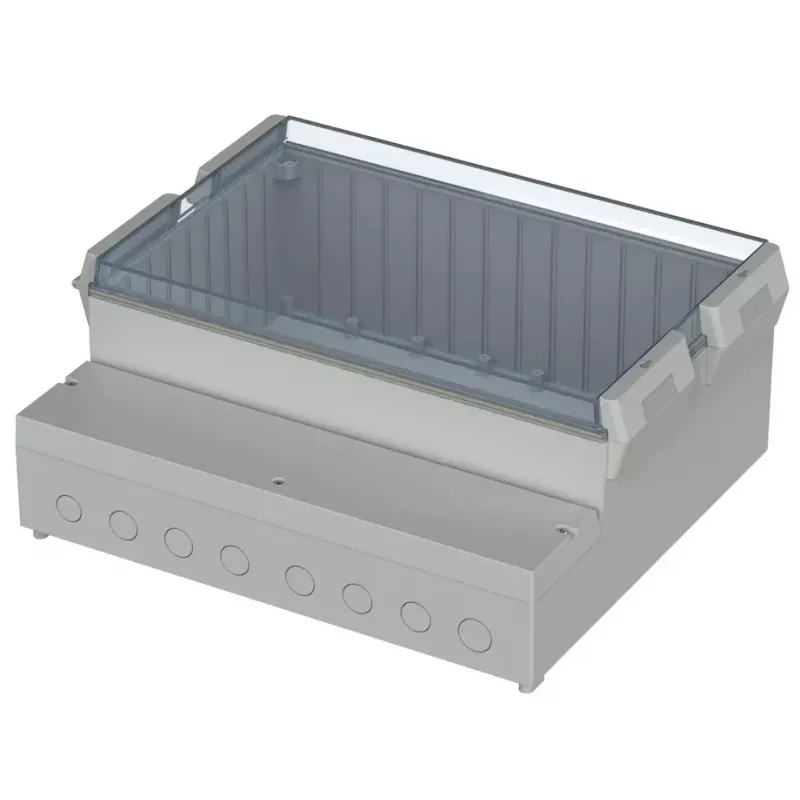

Caixa de comando Bopla RCP 2500 257 x 217 x 132,5 mm ABS/policarbonato cinzento-claro IP65 41250109

This controller enclosure offers an IP65 protection class, making it dust-tight and protected against water jets. Its robust construction with ABS body and polycarbonate lid ensures durability for industrial control applications.

Overview

The Bopla RCP 2500 is a controller enclosure designed for housing electronic controls, with external dimensions of 257 x 217 x 132.5 mm. The light grey colour (RAL 7035) provides a neutral appearance suitable for various environments. The enclosure features a sloping front panel and a recessed area for membrane keypads, enhancing usability.

What stands out

• IP65 protection against dust and water jets
• Impact resistance rated IK07
• Flammability rating UL 94 V-0 for the ABS material
• Operating temperature range from -40°C to +80°C
• Polyurethane gasket for reliable sealing
• Stainless steel lid screws (4 pieces) for secure closure
• Internal mounting bosses for PCBs and components
• Wall mounting or desktop use options

Technical details

• Series: RCP
• External dimensions (L x W x H): 257 x 217 x 132.5 mm
• Body material: ABS (Acrylonitrile Butadiene Styrene)
• Lid material: ABS / Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature: -40°C to +80°C
• Gasket material: Polyurethane (PUR)
• Lid fasteners: Stainless steel screws, 4 pieces
• Design: Sloping front panel, recessed area for membrane keypads
• Internal mounting: Mounting bosses for PCBs and components
• Mounting options: Wall mounting, desktop use

Our verdict

A reliable enclosure for industrial control applications, offering solid protection and flexible mounting options.
