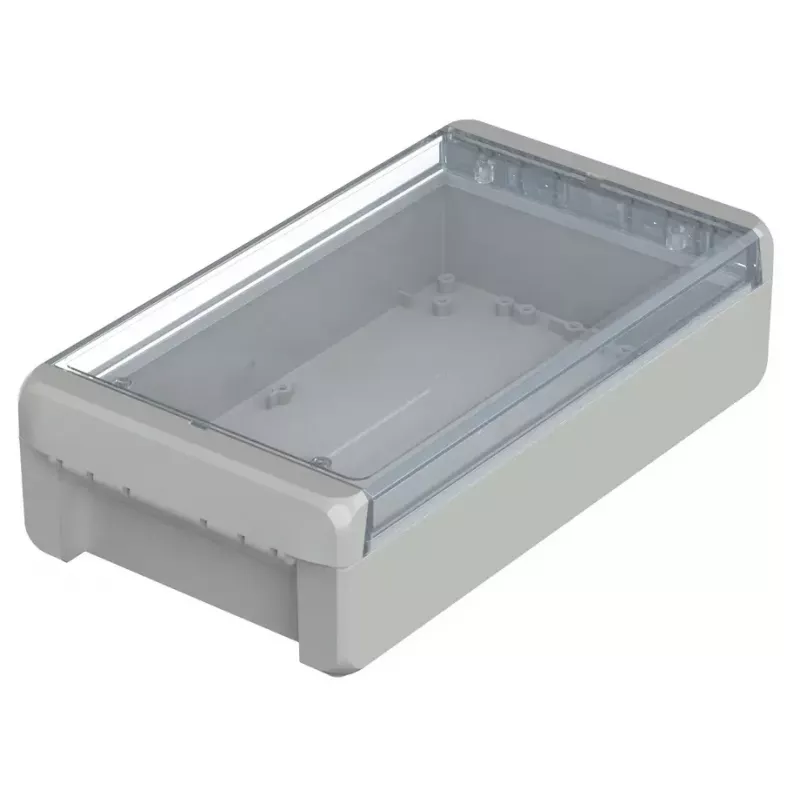

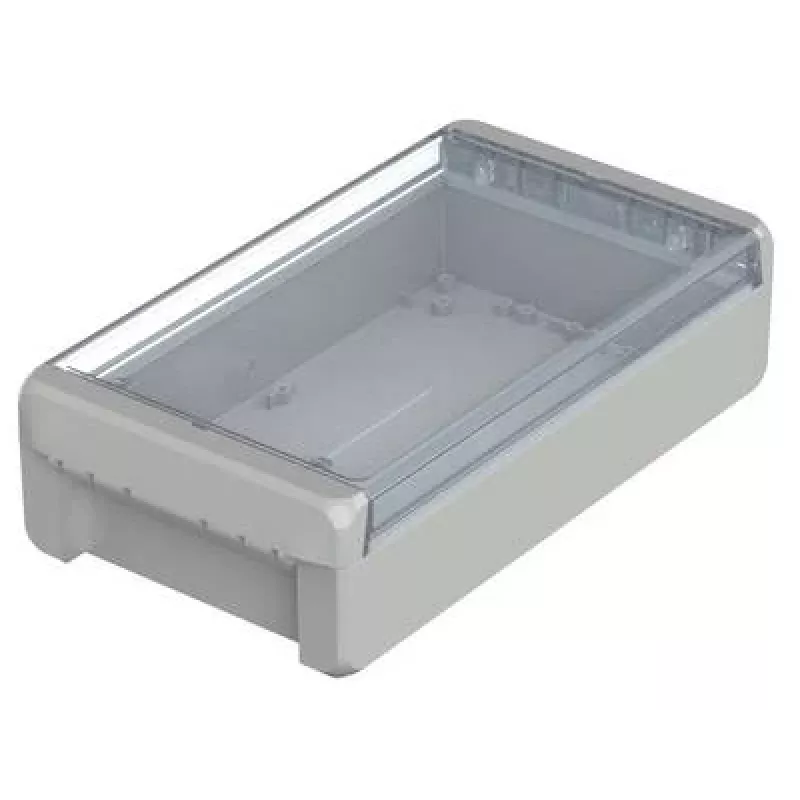

Caixa de parede BOPLA EUROMAS II, policarbonato, cinzento-claro (RAL 7035), 60x125x231 mm 96025225

IP66-rated polycarbonate enclosure with IK07 impact resistance, built for demanding industrial environments. The BOPLA EUROMAS II wall-mounted enclosure provides reliable protection for electrical and electronic components, with a light grey (RAL 7035) finish and dimensions of 60 x 125 x 231 mm.

Overview

This enclosure is part of the EUROMAS II series, constructed from halogen-free polycarbonate with UV resistance. The screw-on lid is secured with stainless steel fasteners and sealed with a polyurethane gasket, ensuring a tight seal against dust and water. Internal screw bosses allow for mounting plates or DIN rails.

What stands out

• IP66 protection against dust and powerful water jets
• IK07 impact resistance for mechanical durability
• Operating temperature range from -40 °C to +80 °C
• UL 94 V-2 flammability rating
• Halogen-free and UV-resistant polycarbonate

Technical details

• Material: Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• Dimensions: 60 mm height x 125 mm width x 231 mm depth
• Lid type: Screw-on lid
• Gasket material: Polyurethane (PU)
• Lid fastener material: Stainless steel
• Mounting options: Wall mounting, Panel mounting
• Internal mounting: Screw bosses for mounting plates/DIN rails

Our verdict

A robust and versatile enclosure for industrial applications, offering excellent protection and easy installation.
