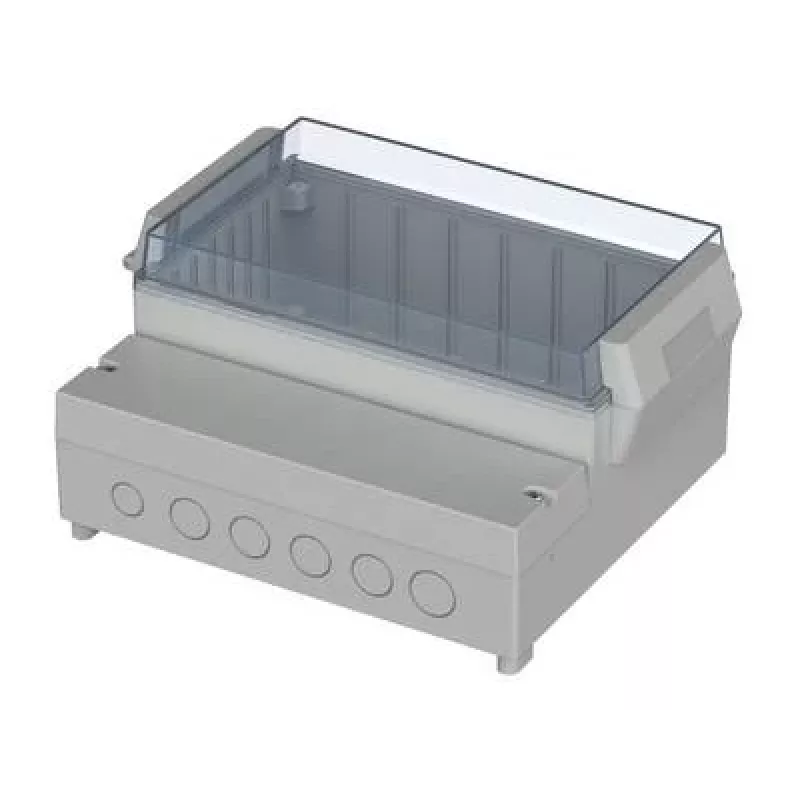

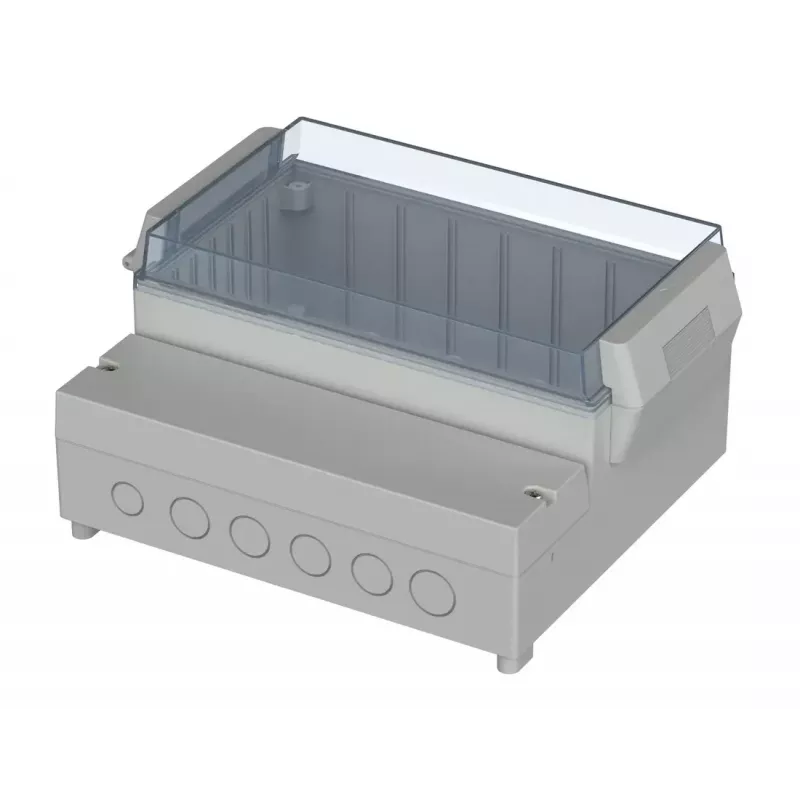

Caixa para controlador Bopla RCP 2000 213 x 185 x 104,5 mm cinzento-claro ABS/PC IP65 41200309

The RCP 2000 from Bopla is a controller enclosure that combines a robust ABS base with a polycarbonate lid, offering a light grey (RAL 7035) finish and dimensions of 213 x 185 x 104.5 mm. It stands out for its IP65 protection and UL 94 V-0 flammability rating, making it suitable for demanding industrial environments.

Highlights

• Base material: ABS, lid material: polycarbonate
• Light grey colour (RAL 7035)
• External dimensions: 213 mm length, 185 mm width, 104.5 mm height
• IP65 protection class
• UL 94 V-0 flammability rating
• Operating temperature range: -40°C to +80°C
• Wall or desktop mounting
• Stainless steel lid screws and silicone gasket
• Integrated mounting bosses for PCBs/components
• UV-resistant lid
• Impact resistance: IK08
• RoHS compliant

In daily use

This enclosure is well-suited for industrial control, measurement, automation, and IoT devices. The integrated mounting bosses simplify PCB installation, while the silicone gasket and stainless steel screws ensure a secure seal. The polycarbonate lid provides UV resistance for outdoor or harsh environments.

Full specifications

• Enclosure type: Controller enclosure
• Series: RCP
• External length: 213 mm
• External width: 185 mm
• External height: 104.5 mm
• Base material: ABS (Acrylonitrile Butadiene Styrene)
• Lid material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Operating temperature range: -40°C to +80°C
• Mounting type: Wall / Desktop
• Lid fastening: Stainless steel screws
• Gasket material: Silicone
• Internal mounting: Integrated mounting bosses for PCBs/components
• UV resistance: Yes (lid)
• Impact resistance: IK08
• RoHS compliance: Yes
• Application: Industrial control, measurement, automation, IoT devices
• Number of pieces: 1

Final note

The Bopla RCP 2000 offers a reliable housing solution for electronics that require protection from dust and water, with a durable construction and versatile mounting options.
