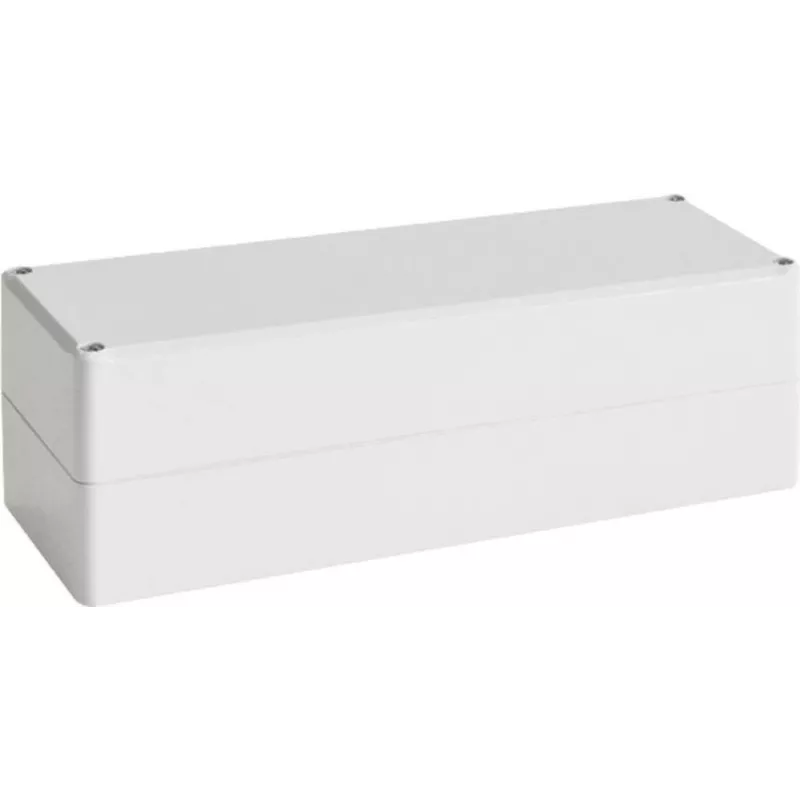

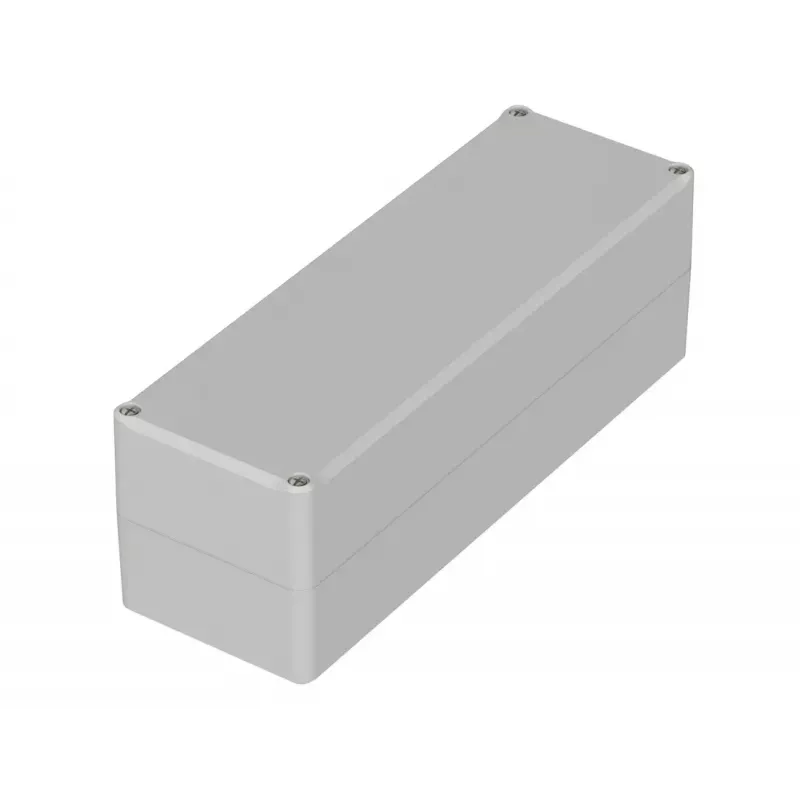

Caixa universal Bopla 240 x 80 x 80 mm ABS cinzento-claro (RAL 7035) ET 236 63236300

Electronic projects need a reliable housing that protects components while keeping them accessible. The Bopla ET 236 universal enclosure provides a robust ABS shell in light grey (RAL 7035), sized 240 x 80 x 80 mm, suitable for a wide range of electronics, control units, and custom devices.

Who is it for

Engineers, makers, and technicians who require a durable, standard-sized enclosure for prototyping or small production runs. Its simple design allows for easy customization and integration into larger systems.

Main features

• Made from ABS (Acrylonitrile Butadiene Styrene) for impact resistance and good chemical stability.
• Light grey colour (RAL 7035) blends into industrial and office environments.
• External dimensions: 240 mm length, 80 mm width, 80 mm height.
• Lid is secured with four self-tapping screws (included).
• Integrated mounting bosses for PCBs and components.
• Can be mounted on walls or placed on a desktop.
• Smooth surface finish suitable for labeling or painting.

Specifications

• Material: ABS
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 240 x 80 x 80 mm
• Ingress protection: IP40
• Operating temperature range: -20 °C to +80 °C
• Flammability rating: UL 94 HB
• Lid fastening: 4 self-tapping screws
• Mounting: Wall or desktop
• RoHS compliant: Yes

Tips

For a custom finish, the ABS surface can be painted or printed. Ensure proper ventilation if housing heat-generating components, as the enclosure has no built-in vents.
